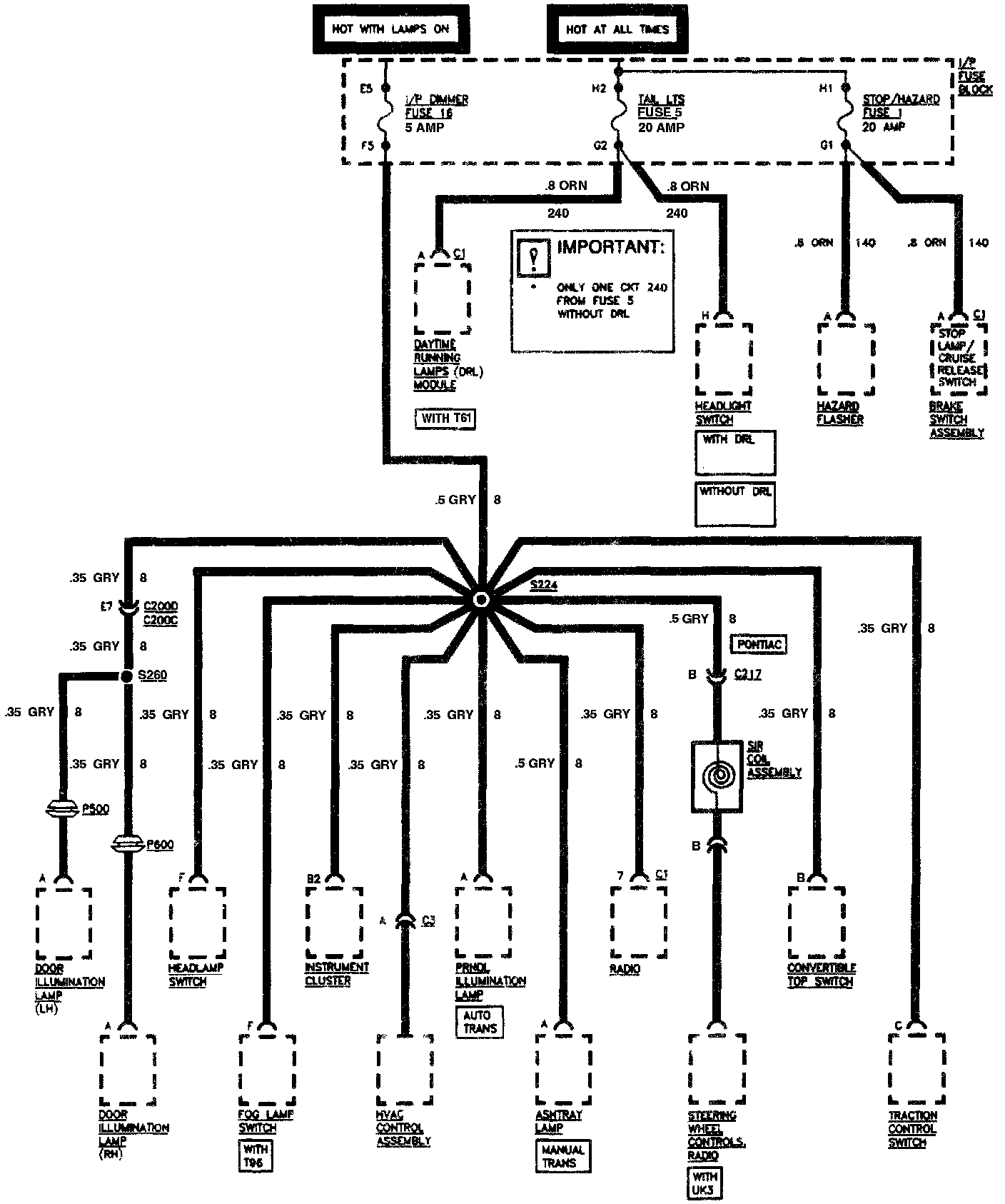

Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Fuses >> Instrument Panel (I/P) Fuse Block - Fuses >> I/P Fuses 1, 5 and 16
