Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio/Stereo

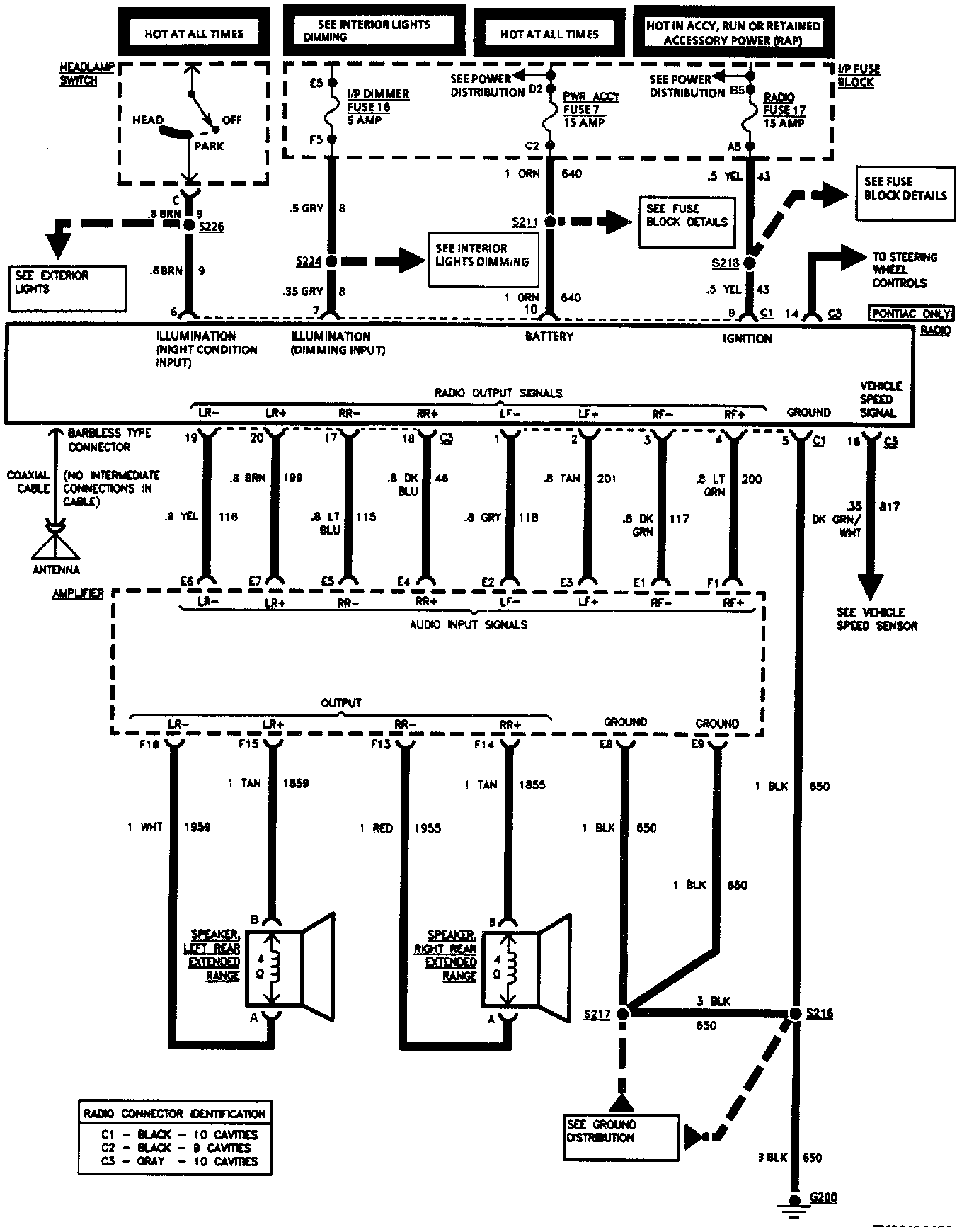

Radio/Stereo

UZ7 UP-Level Speaker System:



UZ7 UP-Level Speaker System:
