Interior Lamps Dimming

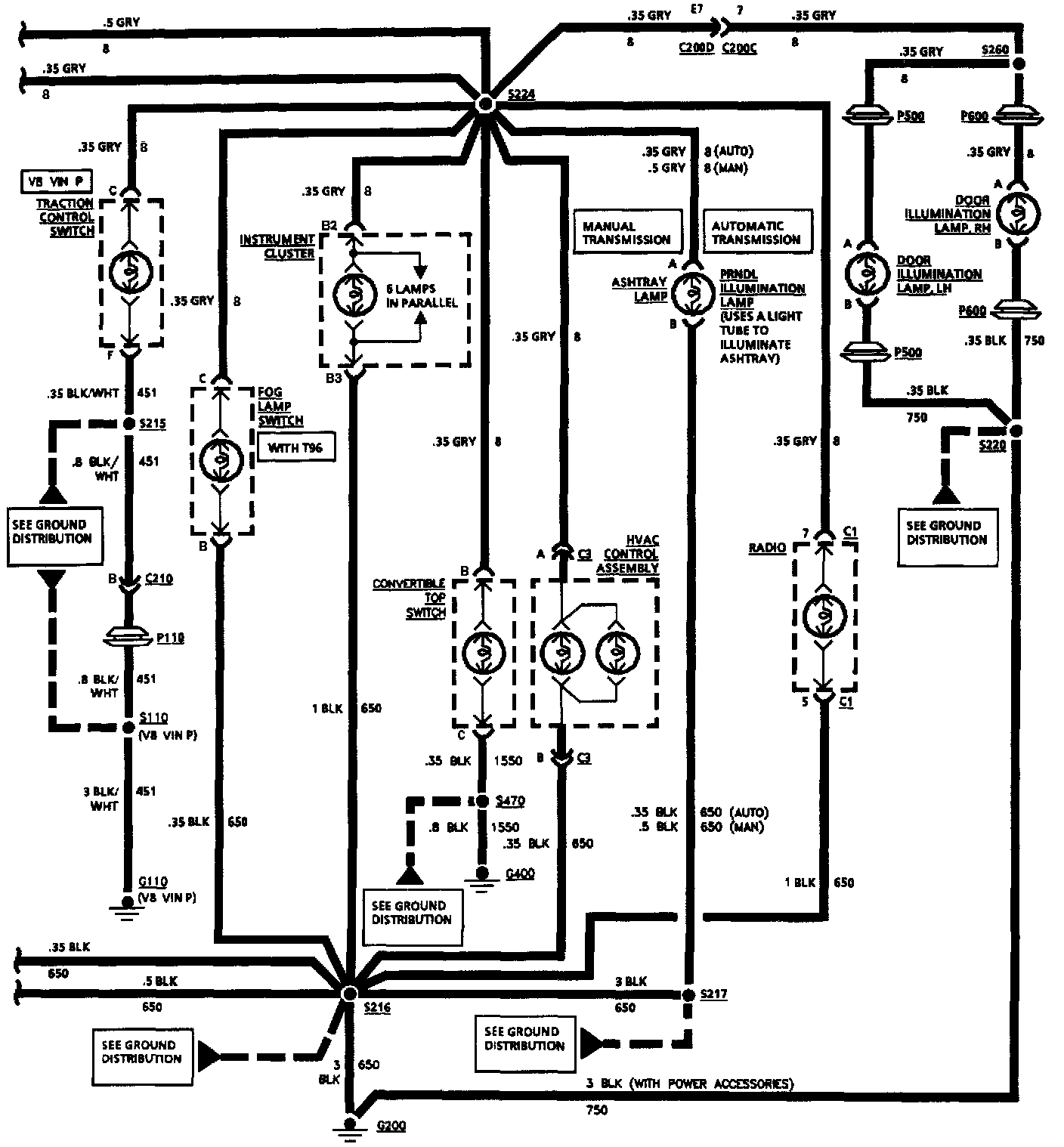

Interior Lights Dimming (Part 1 Of 2):

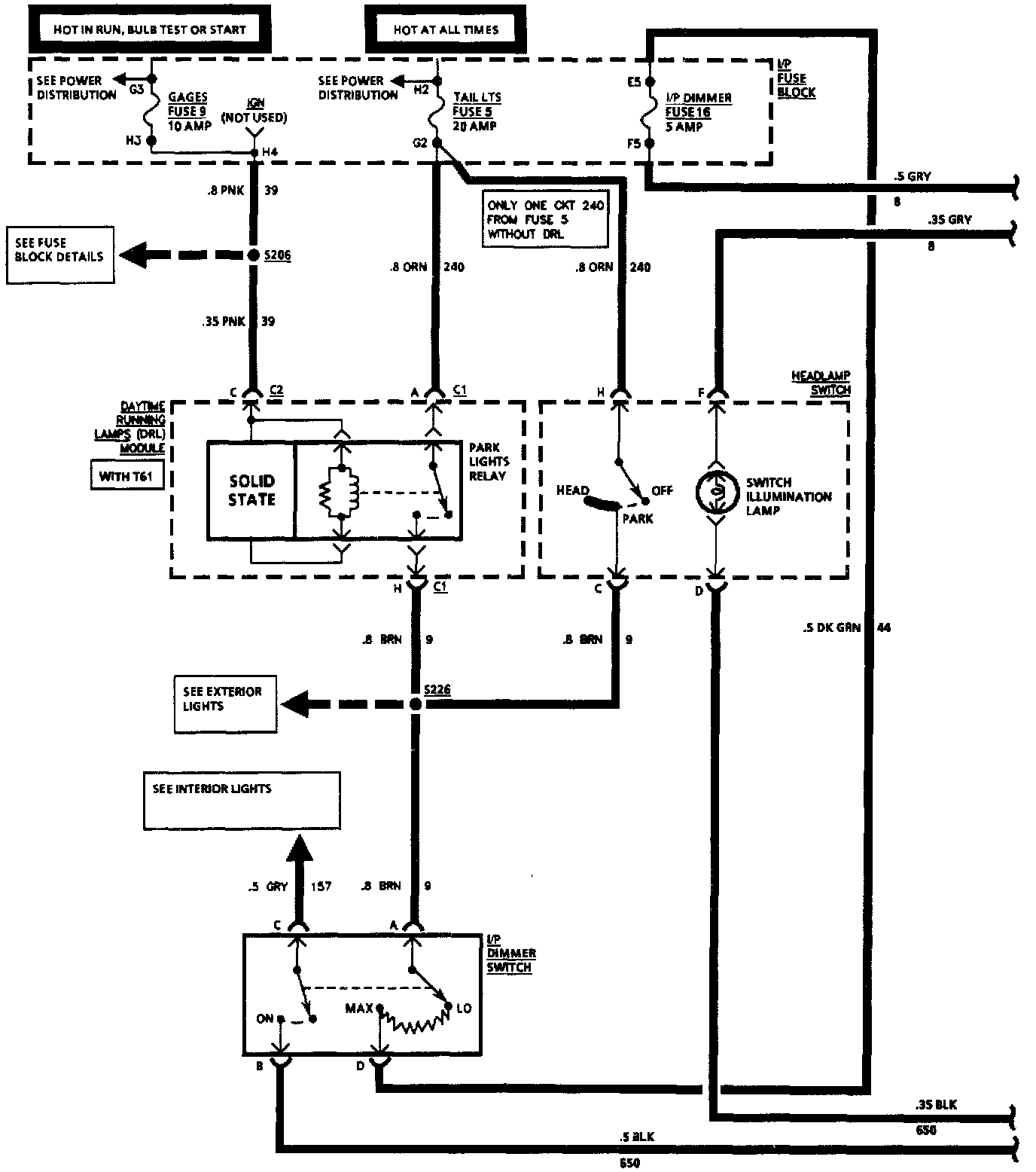

Interior Lights Dimming (Part 2 Of 2):
