System Diagram

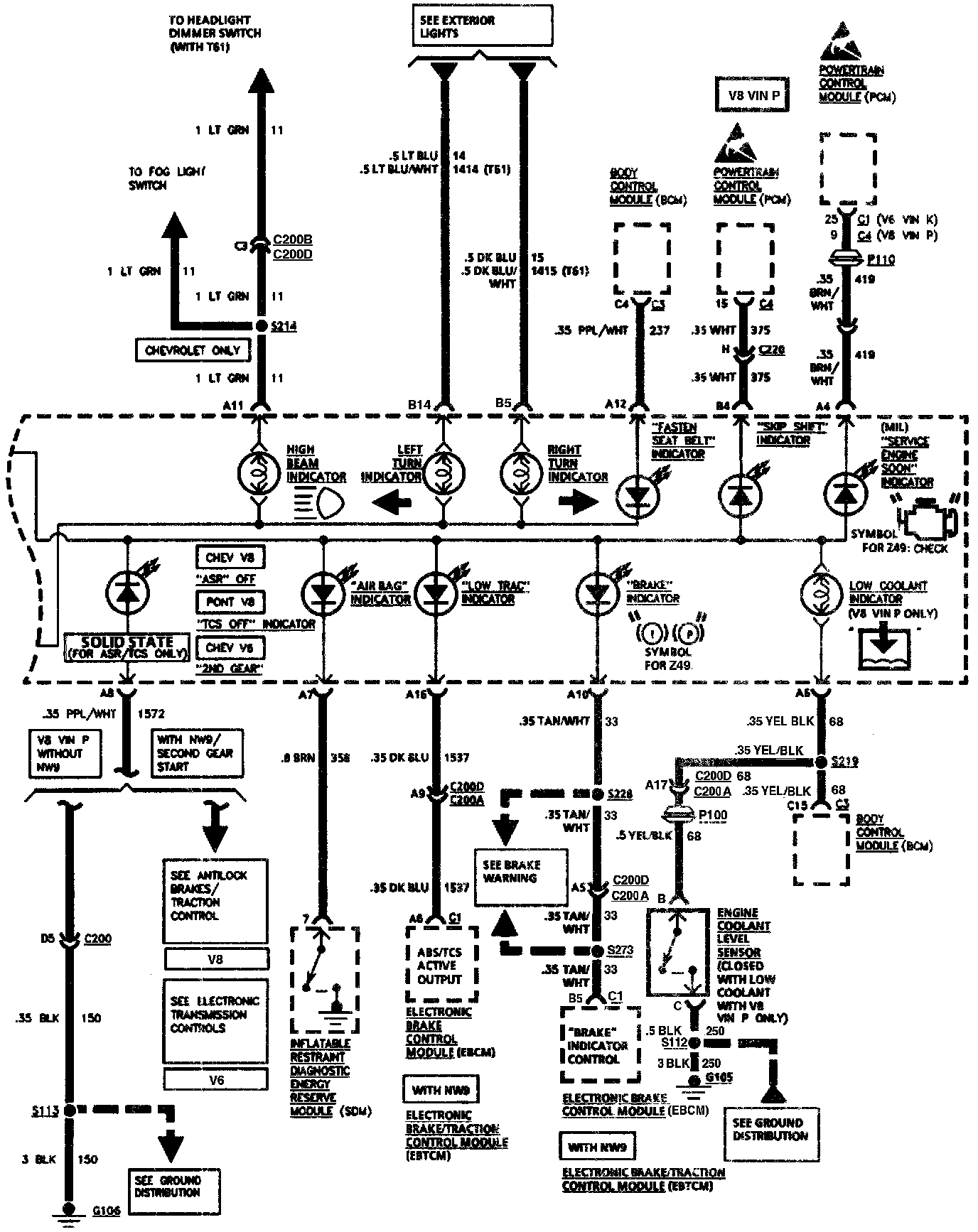

Instrument Cluster (Part 1 Of 4):

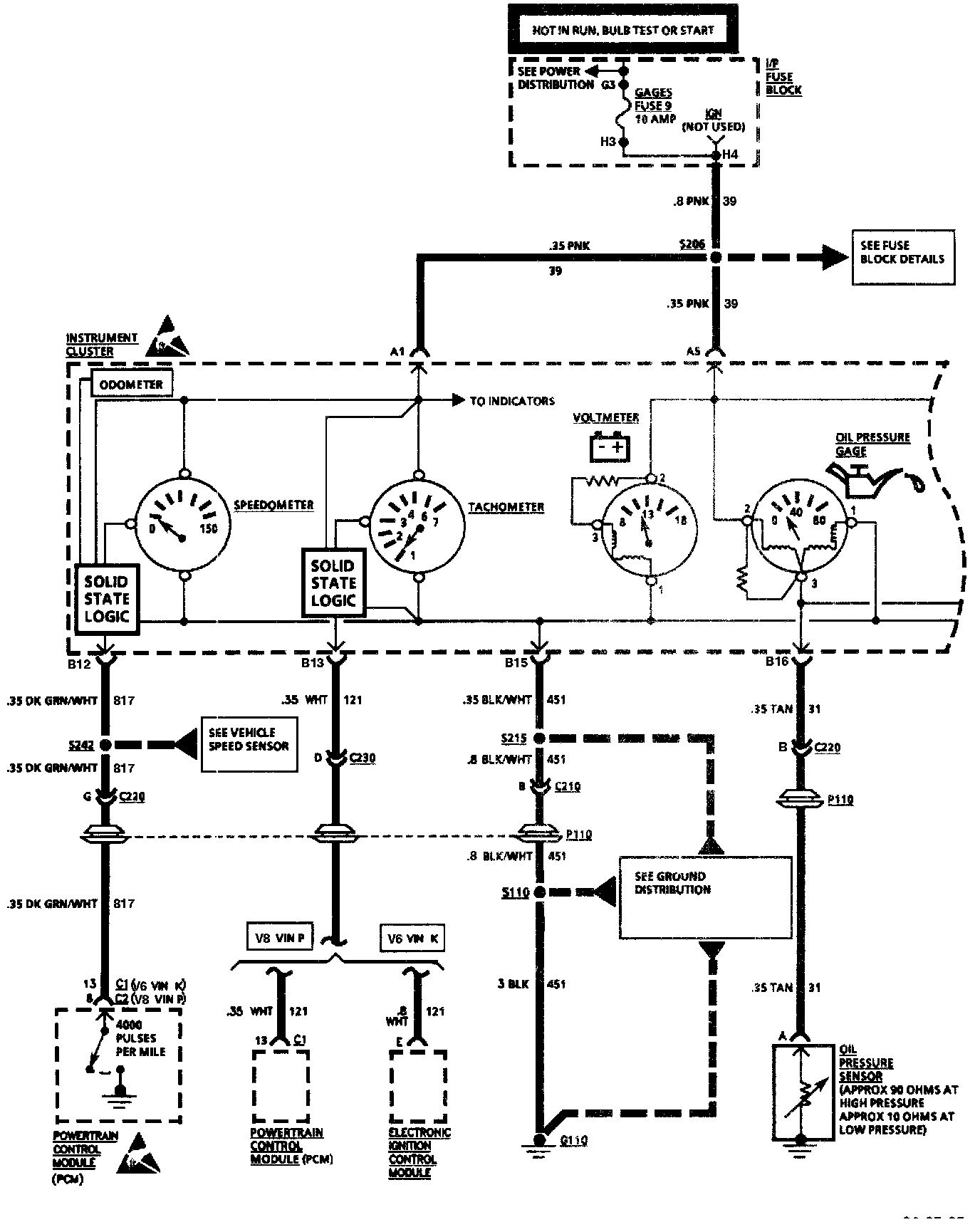

Instrument Cluster (Part 2 Of 4):

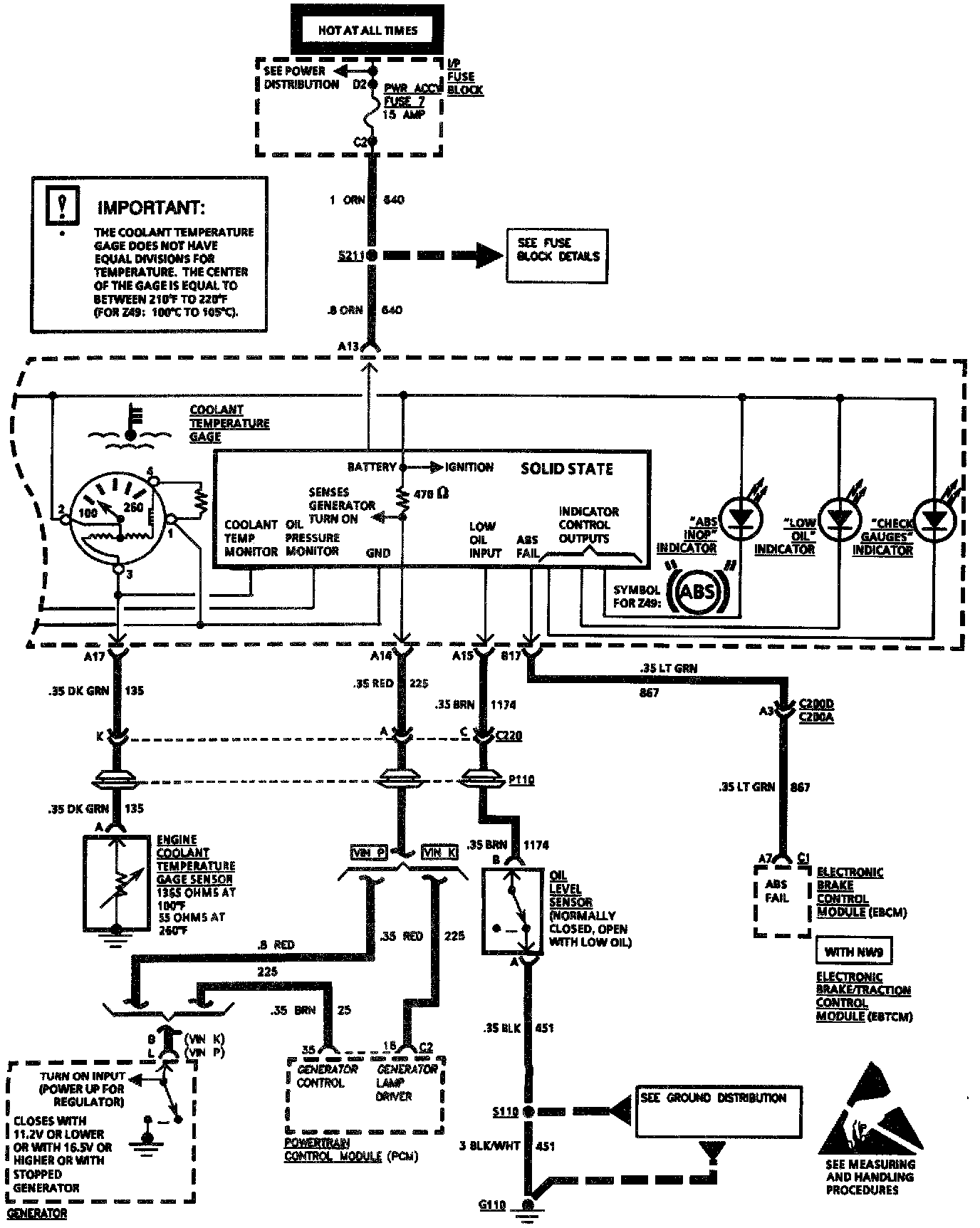

Instrument Cluster (Part 3 Of 4):

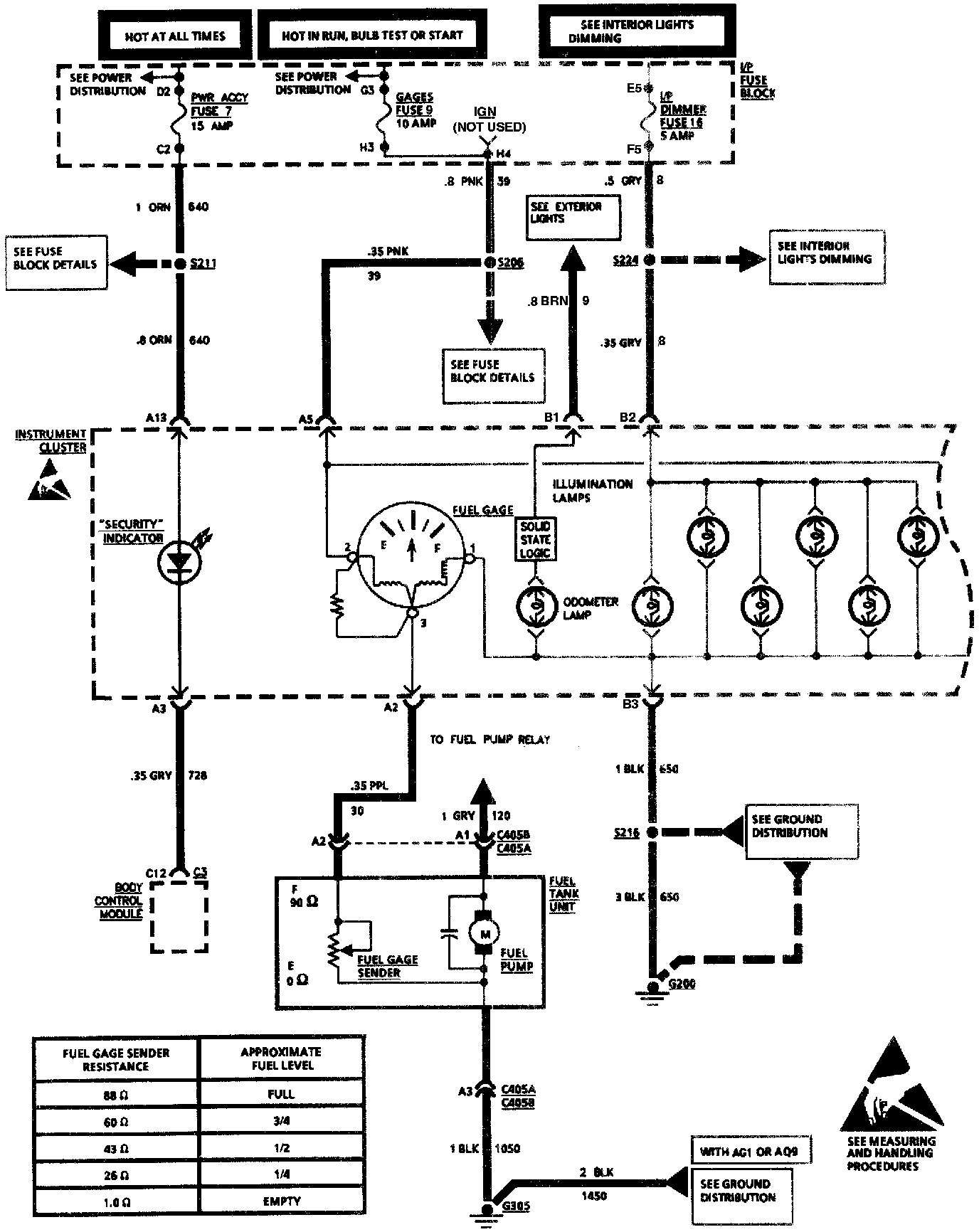

Instrument Cluster (Part 4 Of 4):
