Engine Harness to I/P Harness

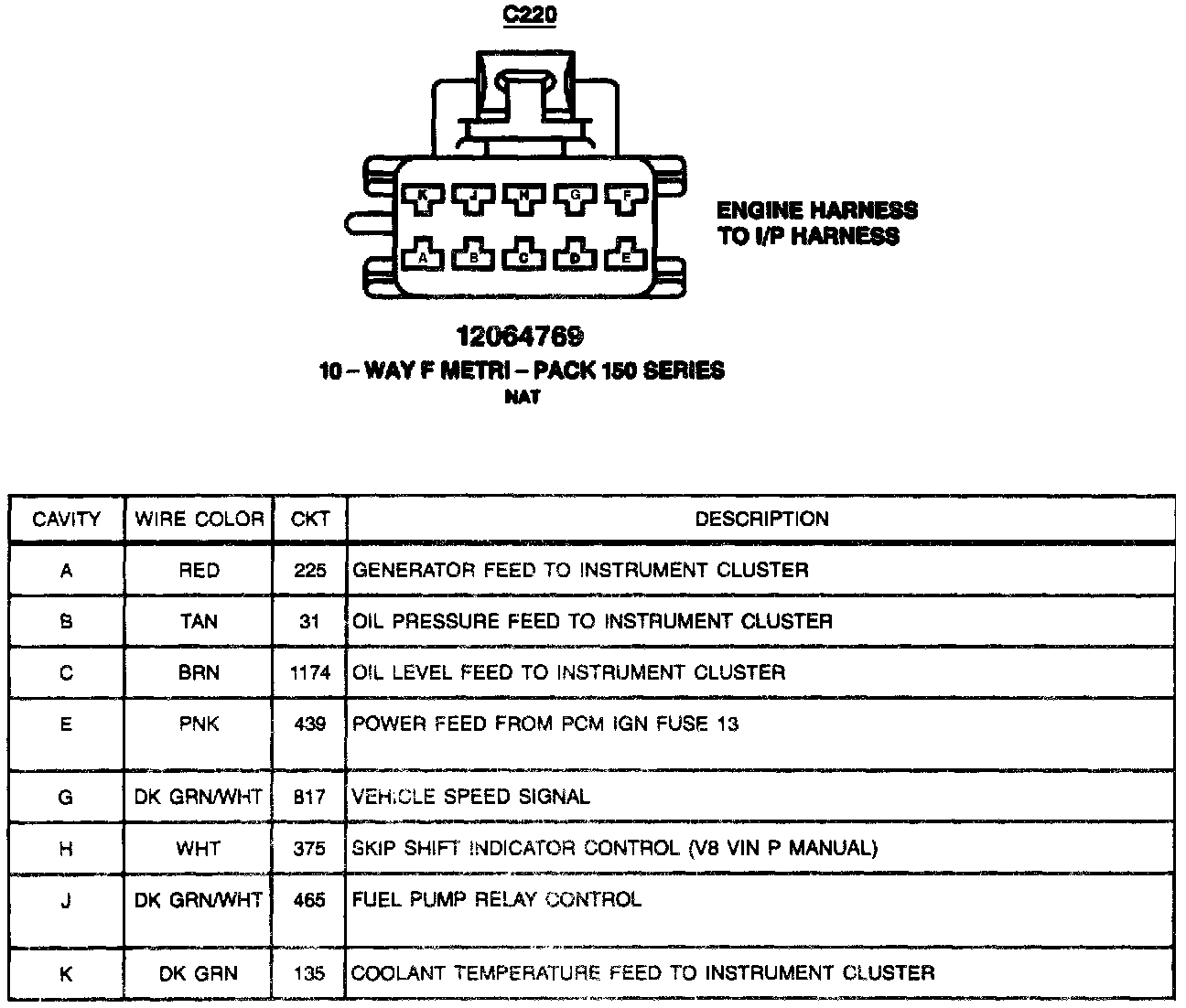

C220: Engine Harness To I/P Harness:

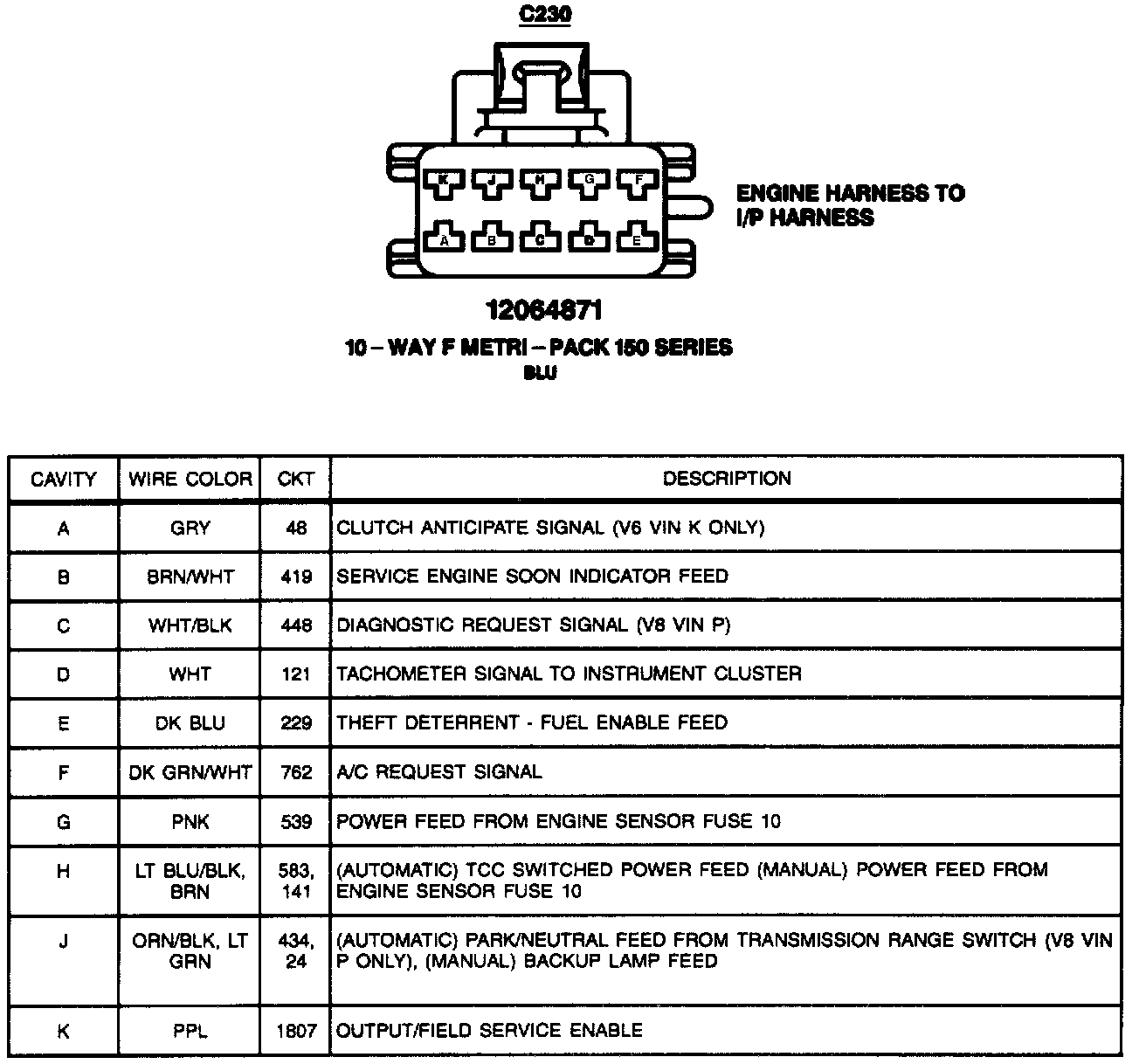

C230: Engine Harness To I/P Harness:

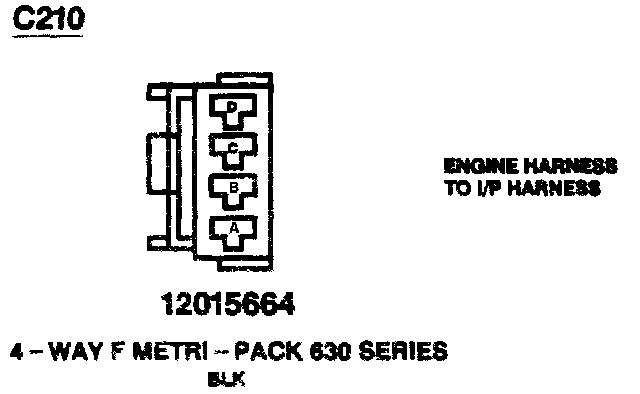

Engine Harness To I/P Harness: C210:
