Brake Switch (Cruise Control): Service and Repair

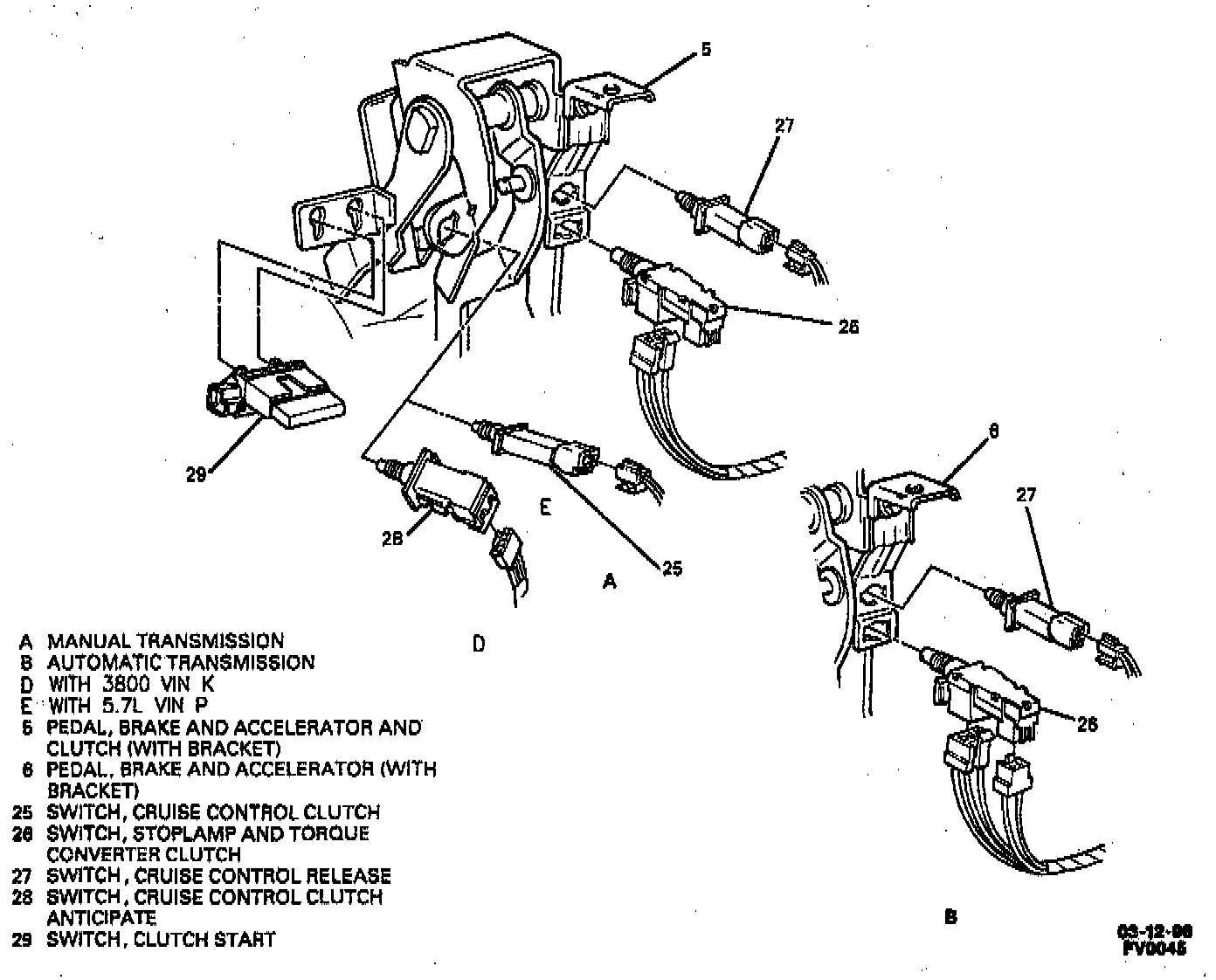

Stoplamp And Cruise Control Switches:

REMOVE OR DISCONNECT
1. Left side instrument panel insulator.
2. Electrical connectors.
3. Cruise control release switch, stoplamp and TCC switch, and cruise control clutch switch or cruise control clutch anticipate switch, if equipped, from pedal with bracket.

INSTALL OR CONNECT
1. Cruise control release switch, stoplamp and TCC switch, and cruise control clutch switch or cruise control clutch anticipate switch, if equipped, to pedal with bracket.
2. Electrical connectors.
3. Left side instrument panel insulator. Adjust Cruise control release switch, stoplamp and TCC switch, and cruise control clutch switch or cruise control clutch anticipate switch, as outlined above.
