ABS Main Relay: Service and Repair

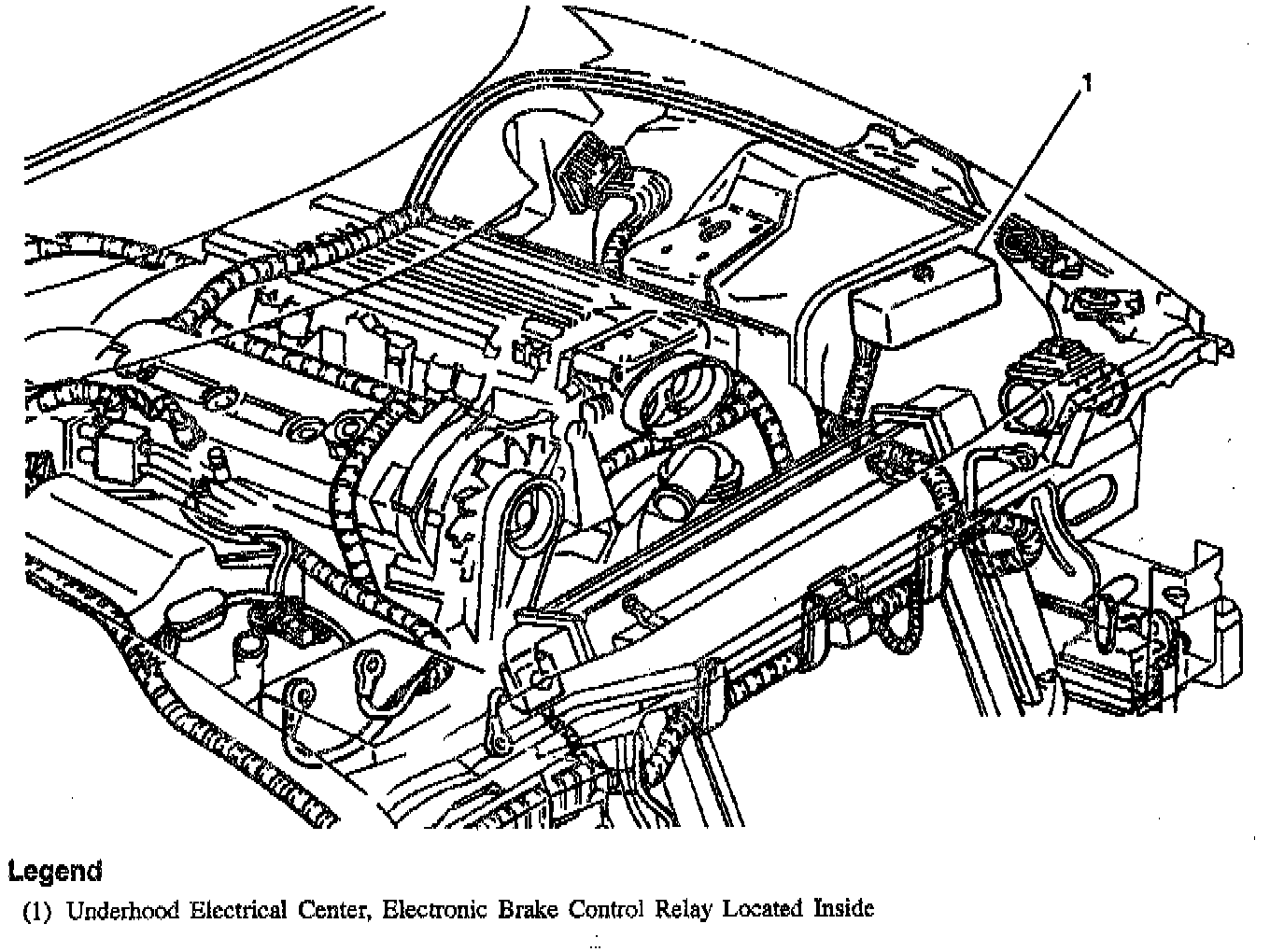

Electronic Brake Control Relay Location:






ELECTRONIC BRAKE CONTROL RELAY

Remove Or Disconnect
1. Electronic brake control relay cover.
2. Electronic brake control relay from connector.

Install Or Connect
1. Electronic brake control relay to connector.
2. Electronic brake control relay cover.
