Rear Brake Hose

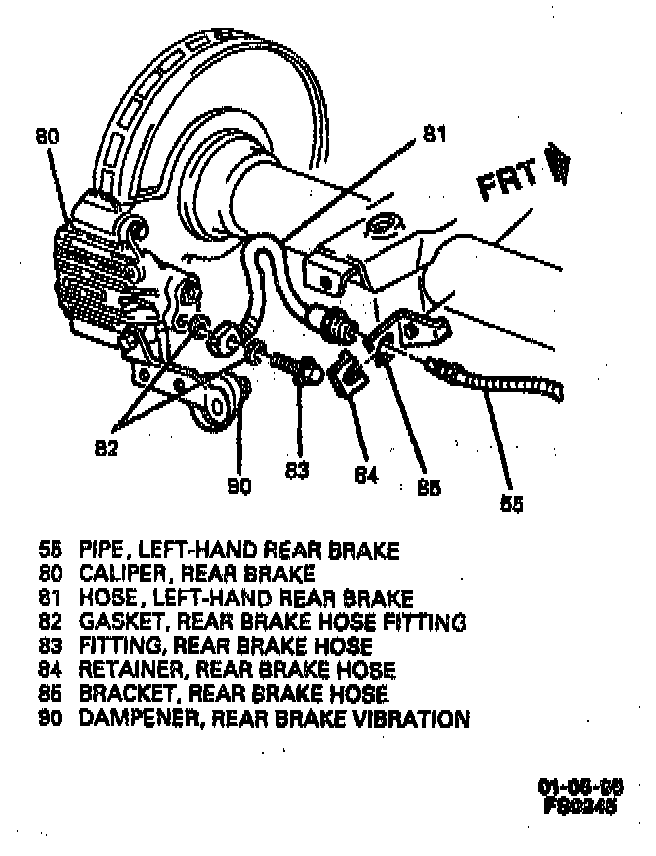

Rear Disc Brake Hose (Typical):

REMOVE OR DISCONNECT
1. Wheel and tire. Clean Dirt and foreign material from hose and pipe fitting.
2. Rear brake hose from rear brake pipe. Use backup wrench on brake hose fitting. Be careful not to bend rear brake hose bracket and rear brake pipe.
3. Rear brake hose retainer from brake hose bracket and rear brake hose.
4. Brake hose fitting, two brake hose fitting gaskets and rear brake hose from rear brake caliper. Discard brake hose fitting gaskets.

INSTALL OR CONNECT
1. Brake hose fitting, with new gaskets and rear brake hose to rear brake caliper. Lubricate hose fitting threads with clean brake fluid. Hose fitting flange must engage caliper orientation ledge. Tighten Rear brake hose fitting to 44 Nm (32 ft. lbs.).
2. Brake hose retainer to brake hose bracket and brake hose.
3. Rear brake hose to rear brake pipe. Use backup wrench on brake hose fitting. Be careful not to bend brake hose bracket and brake pipe. Tighten Rear brake pipe to brake hose to 17 Nm (13 ft. lbs.).
4. Bleed hydraulic brake system.
5. Wheel and tire.
