Left Front Wheel Speed Sensor Jumper Harness

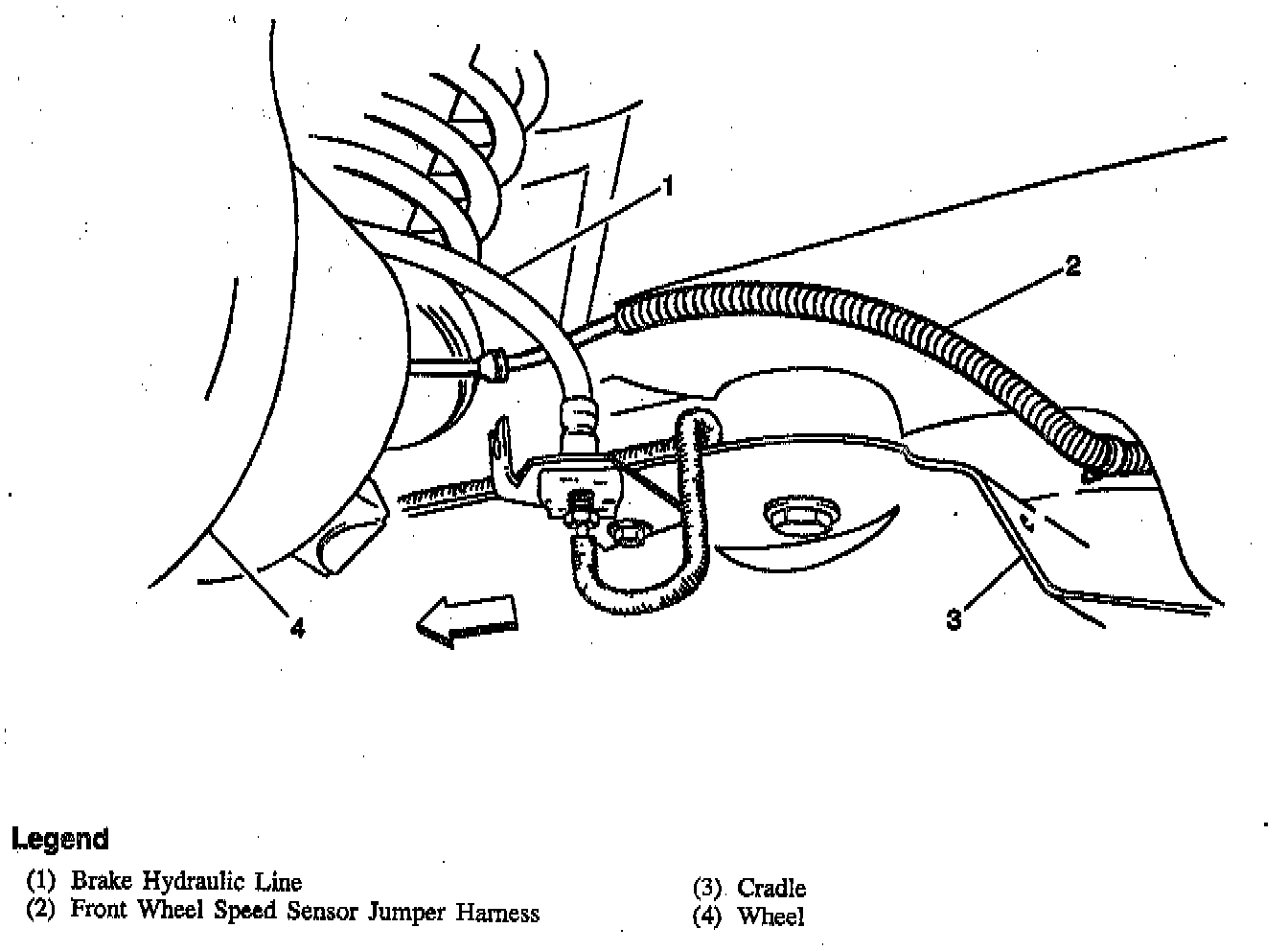

Front Wheel Speed Sensor Jumper Harness (Left Hand Shown, Right Hand Similar):

REMOVE OR DISCONNECT
1. Raise and support vehicle on suitable hoist.
2. Connector from wheel speed sensor.
3. Harness from retaining clips.
4. Grommet retainer at inner fender.
5. Lower vehicle.
6. Transmission cable retainer and various harnesses from restraints at left strut tower to access jumper harness connector.
7. Upper jumper harness connector.
8. Pull grommet through inner fender pass through and remove jumper harness.

INSTALL OR CONNECT
1. Route new jumper harness through inner fender pass-through.
2. Upper jumper harness connector.
3. Transmission cable retainer and various harness to restraints that may have been disconnected to access jumper harness.
4. Raise vehicle.
5. Seat grommet into position in the inner fender.
6. Grommet retainer at inner fender.
7. Harness to sensor.
8. Harness to retaining clip.
