Trunk / Liftgate Switch: Service and Repair

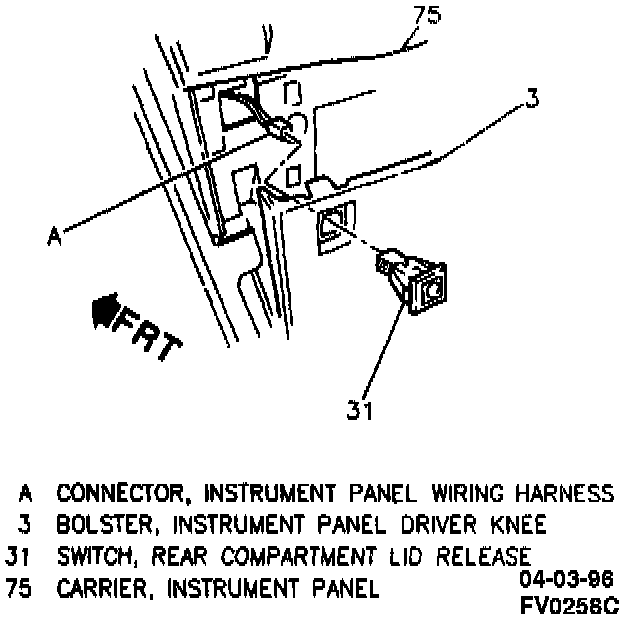

Remove or Disconnect
1. Driver knee bolster.
2. Switch (31) from instrument panel wiring harness electrical connector.
3. Switch (31) from holster (3).

Install or Connect
1. Switch (31) to holster (3).
2. Switch (31) to instrument panel wiring harness electrical connector.
3. Driver knee bolster.
