Convertible Top - Revised Inoperative Diagnostic Chart

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 63-81-36

Date: November, 1996

SERVICE MANUAL UPDATE

Subject:
Section 8A-121 - Revised Diagnostic Chart # 1 - Convertible Top Inoperative

Models:
1997 Chevrolet Camaro
1997 Pontiac Firebird

This bulletin is being issued to revise the diagnostic Chart # 1 (Convertible Top Inoperative) on page 8A-121-3 of the 1997 Camaro/Firebird Service Manual (GMP/97-F-1).

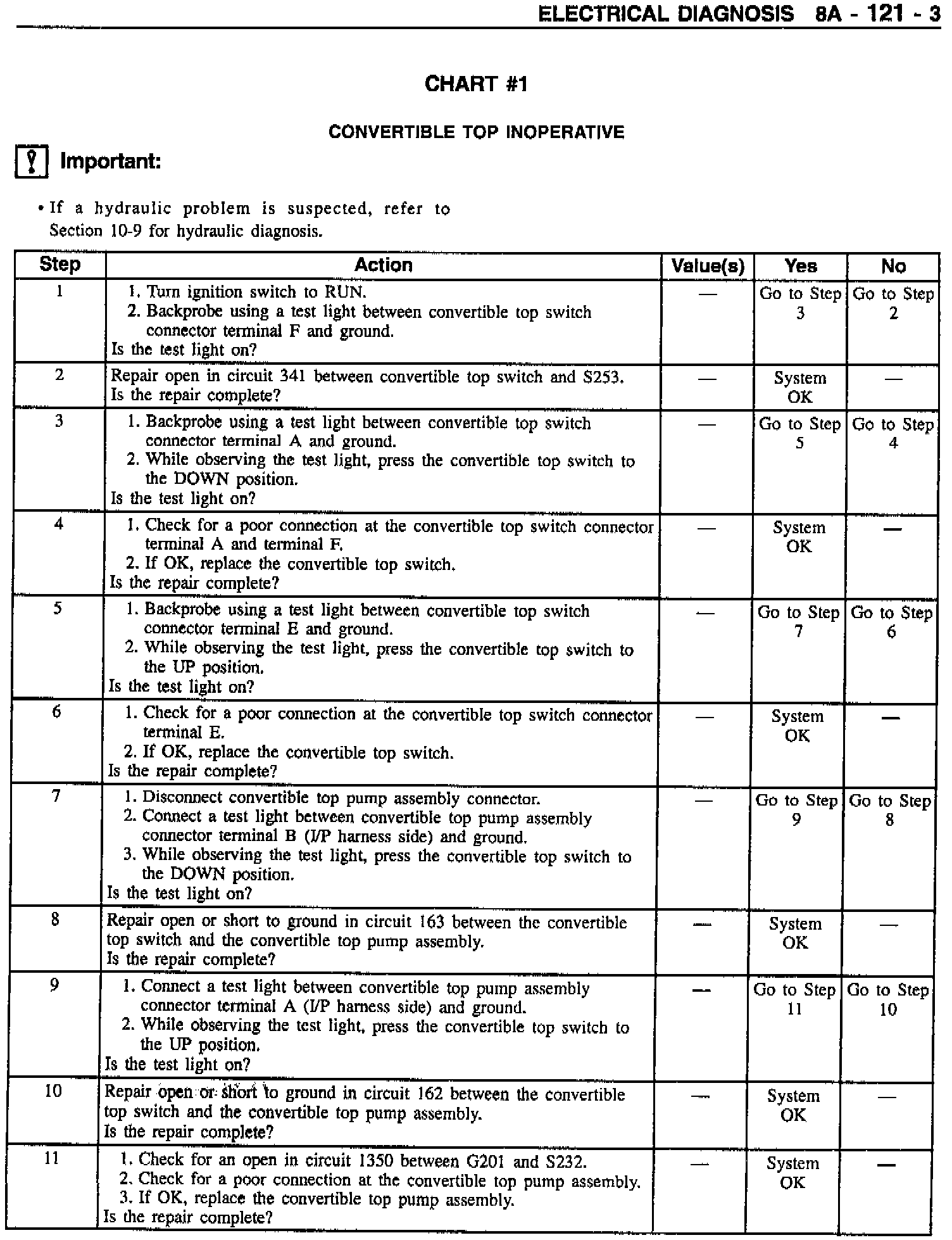

Please use image to replace the existing chart in the affected Service Manuals.
