Knee Bolster Replacement

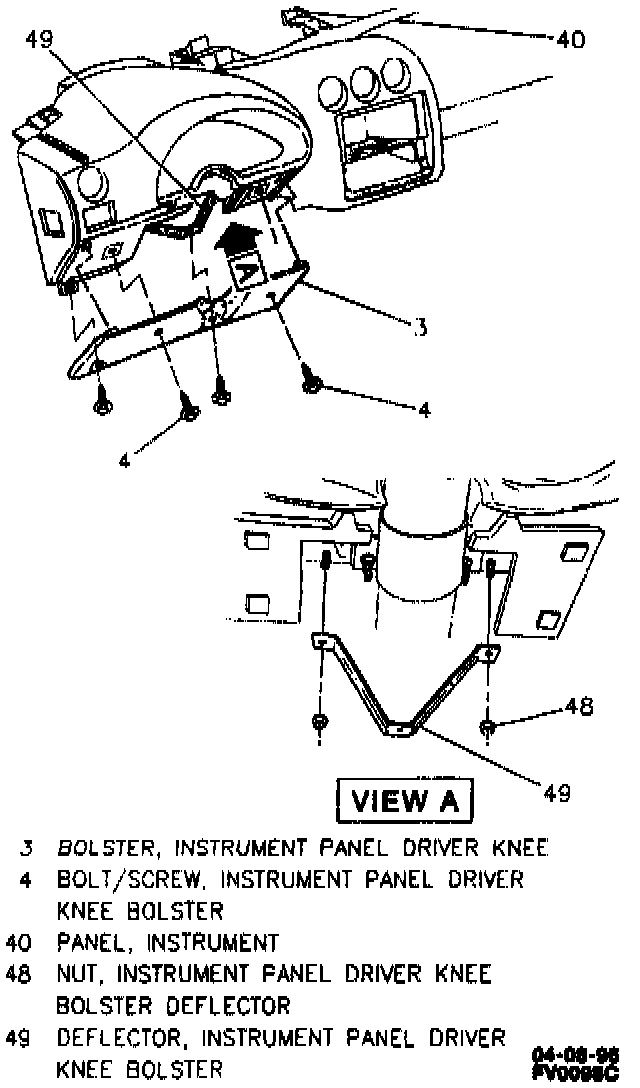

Remove or Disconnect
1. Instrument panel driver knee bolster bolts/ screws (4).
2. Instrument panel driver knee bolster (3).
3. Instrument panel driver knee bolster deflector nuts (48).
4. Instrument panel driver knee bolster deflector (49).

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Instrument panel drive knee bolster deflector (49).
2. Instrument panel driver knee bolster deflector nuts (48).
Tighten
^ Instrument panel driver knee bolster deflector nuts (48) to 10 Nm (89 lb in).
3. Instrument panel driver knee bolster (3).
4. Instrument panel driver knee bolster bolts/ screws (4).
Tighten
^ Instrument panel driver knee bolster bolts/screws (4) to 1.9 Nm (17 lb in).
