System Test - Antenna

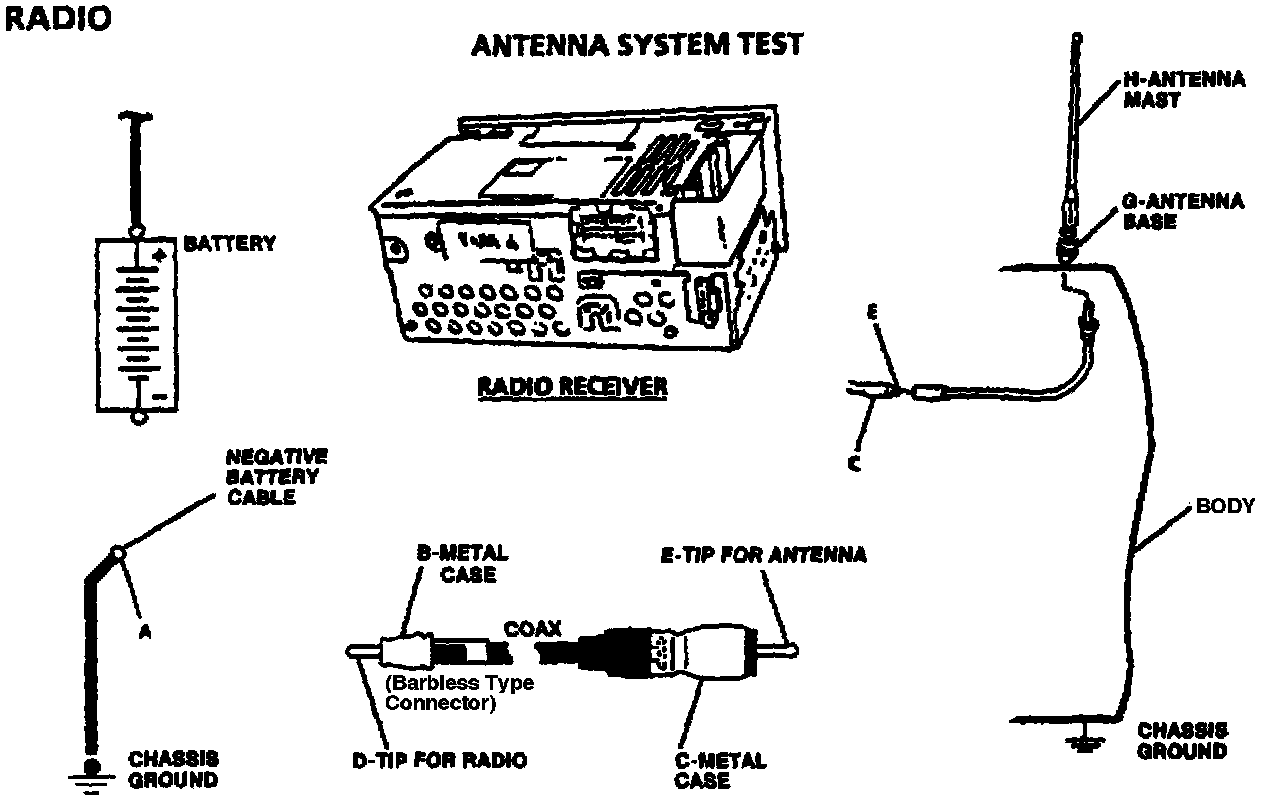

Antenna System Test:

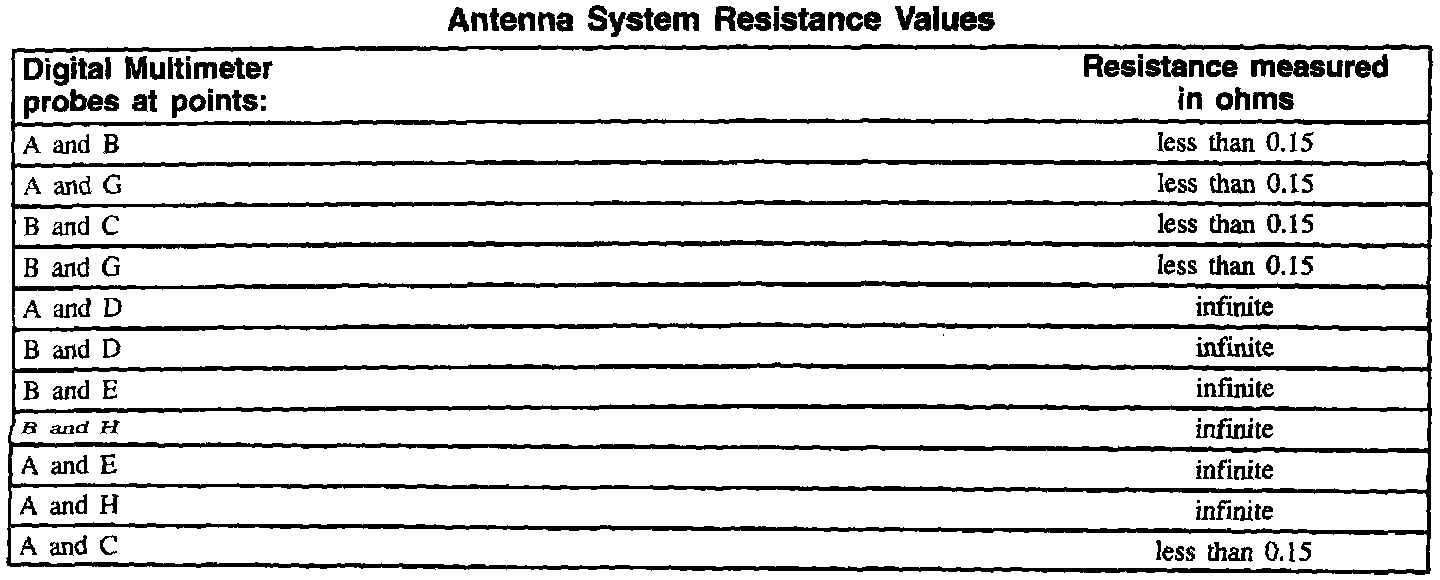

Antenna System Resistance Values (Part 1 Of 2):

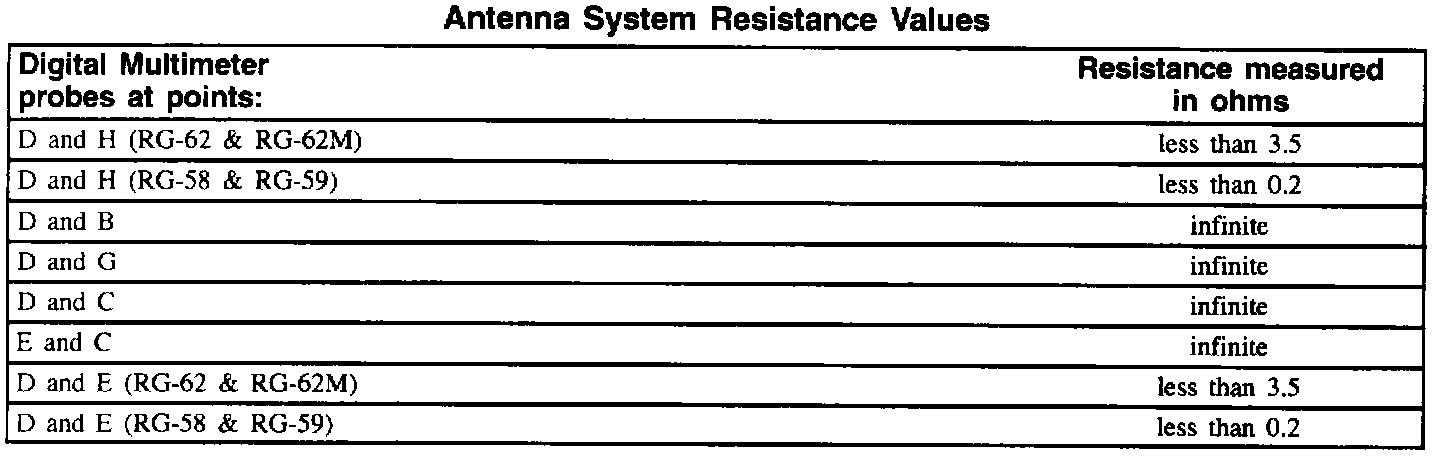

Antenna System Resistance Values (Part 2 Of 2):

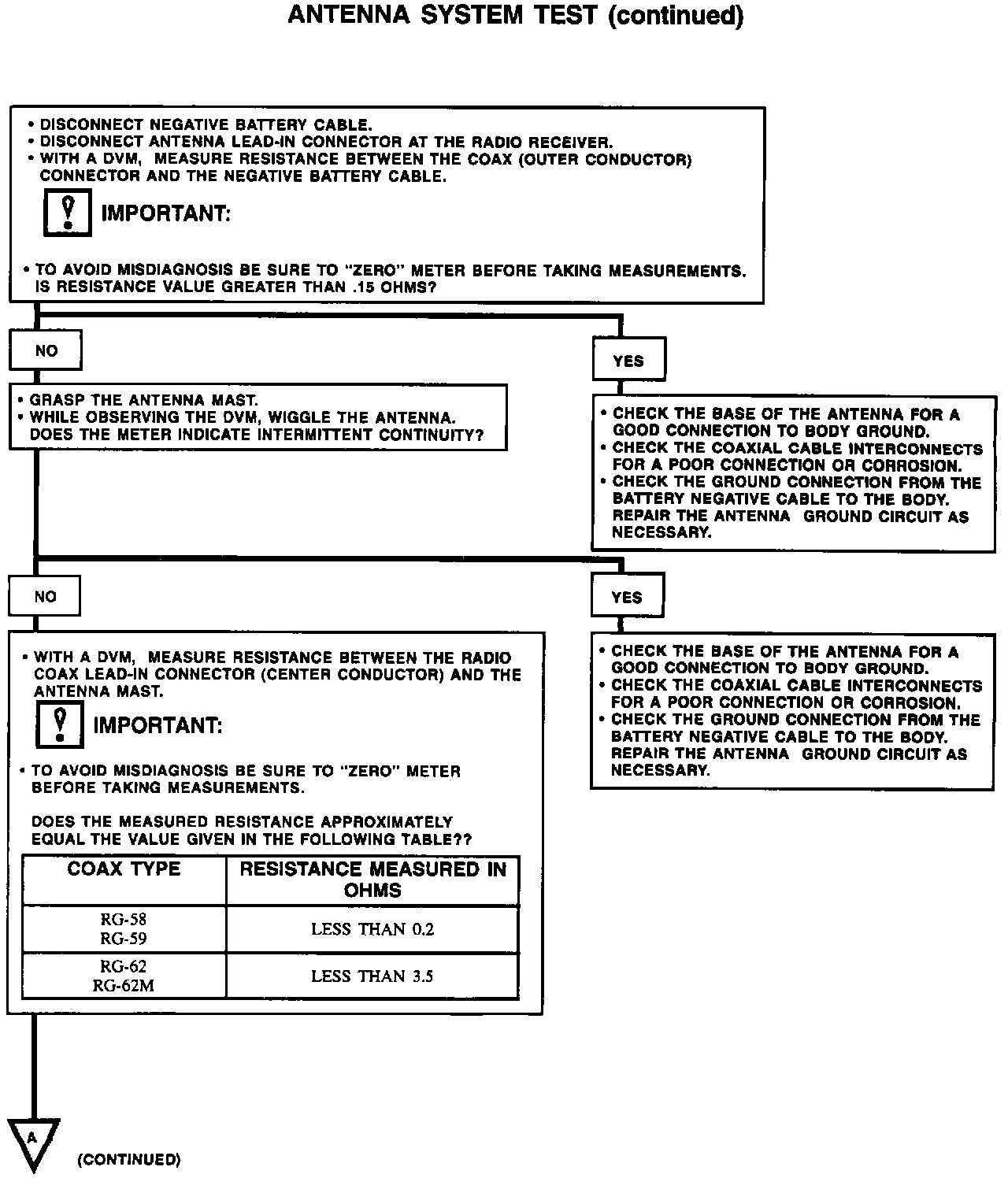

Antenna System Test (Part 1 Of 2):

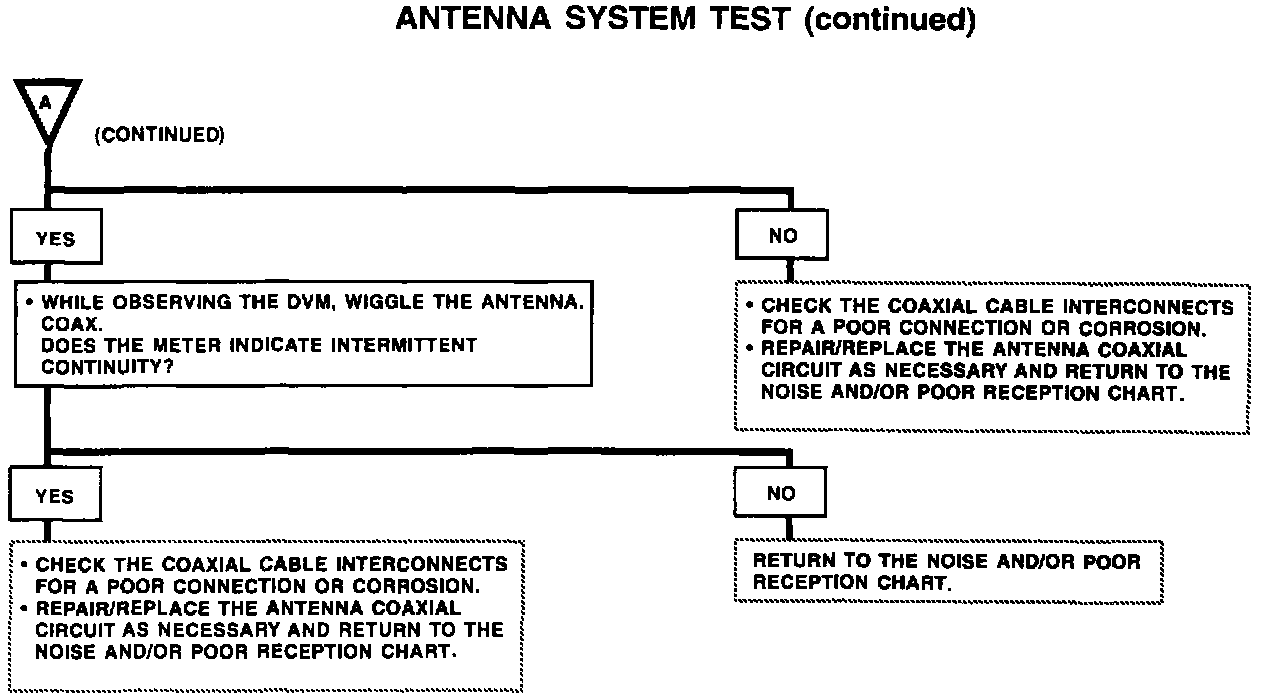

Antenna System Test (Part 2 Of 2):
