Radio Power Antenna

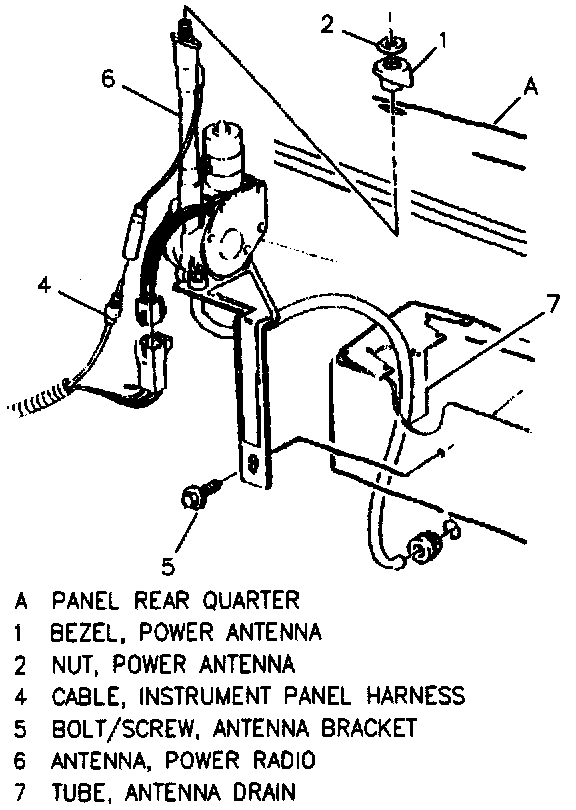

Radio Power Antenna Mounting (Chevrolet Shown, Pontiac Similar):

TOOL REQUIRED:
J 3853-A Antenna Bezel Socket

REMOVE OR DISCONNECT
1. Quarter inner rear trim finishing panel.
2. Jack and spare tire.
3. Cable (4) from antenna cable connector.
4. Electrical connector from power antenna (6).
5. Nut (2) from power antenna (6) using J 38536-A.
6. Bezel (1) from power antenna (6).
7. Drain tube (7) and grommet from rear quarter panel.
8. Bolt/screw (5) from power antenna (6) and spare tire bracket.
9. Power antenna (6).

INSTALL OR CONNECT
NOTICE: Refer to "Service Precautions".

1. Power antenna (6).
2. Bolt/screw (5) to power antenna (6) and spare tire bracket.
Tighten
^ Bolt/screw (5) to 5 N.m (44 lb. in.)
3. Drain tube (7) and grommet to rear quarter panel.
4. Bezel (1) to power antenna (6).
5. Nut (2) to power antenna (6) using J 38536-A.
Tighten
^ Nut (3) to 3 N.m (34 lb. in.).
6. Electrical connector to power antenna (6).
7. Cable (4) to antenna cable connector.
8. Jack and spare tire.
9. Quarter inner rear trim finishing panel.
