Radio Fixed Antenna

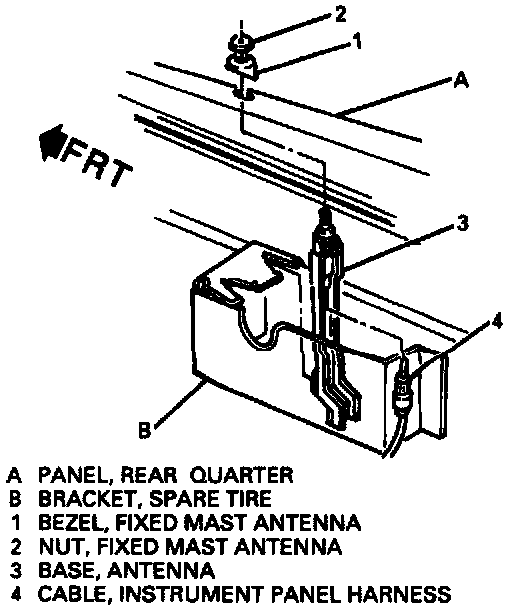

Radio Fixed Antenna Mounting:

TOOL REQUIRED:
J 38536A Antenna Bezel Socket

REMOVE OR DISCONNECT
1. Using J 38536-A loosen nut (2).
2. Antenna base (3) from spare tire bracket.
3. Nut (2) and bezel (1).
4. Top of antenna base (3) from rear quarter panel
5. Cable (4) from antenna base (3).

INSTALL OR CONNECT

NOTICE: If substituting an antenna or cable, be sure to use a barbless-type connector. Incorrect connectors may cause poor reception or damage to connectors.
NOTICE: Refer to "Service Precautions".

1. Cable (4) into antenna base (3).
2. Top of antenna base (3) into hole in rear quarter panel.
3. Bezel (1) to antenna base (3) and secure with nut (2) (finger tighten only).
4. Bottom of antenna base (3) into spare tire bracket.
Tighten
^ Nut (2) to 3 N.m (34 lb. in.) using J 38536-A.
