AM/FM Stereo and Clock Radio Replacement









Remove or Disconnect

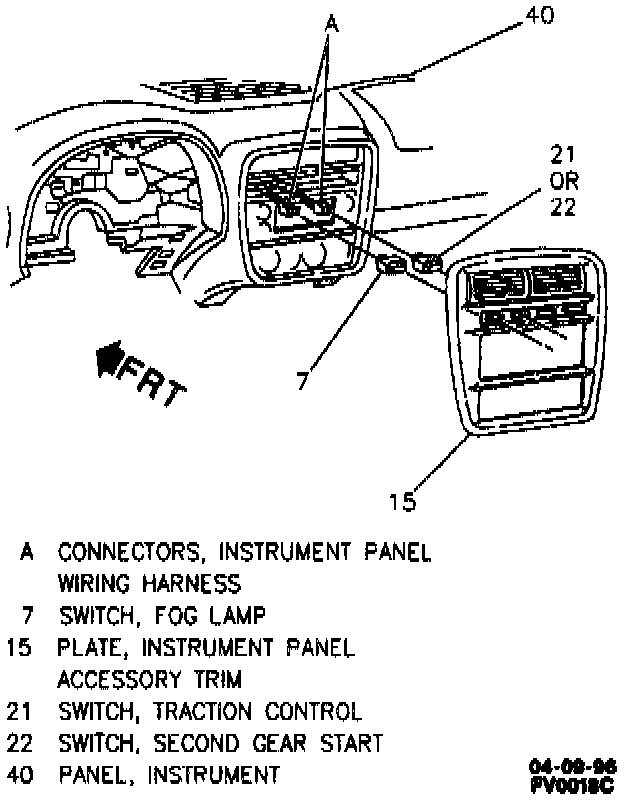

1. Unsnap instrument panel accessory trim plate (15).
2. Electrical connectors from switches (7, 21 or 22), if equipped.
3. Instrument panel accessory trim plate (15).

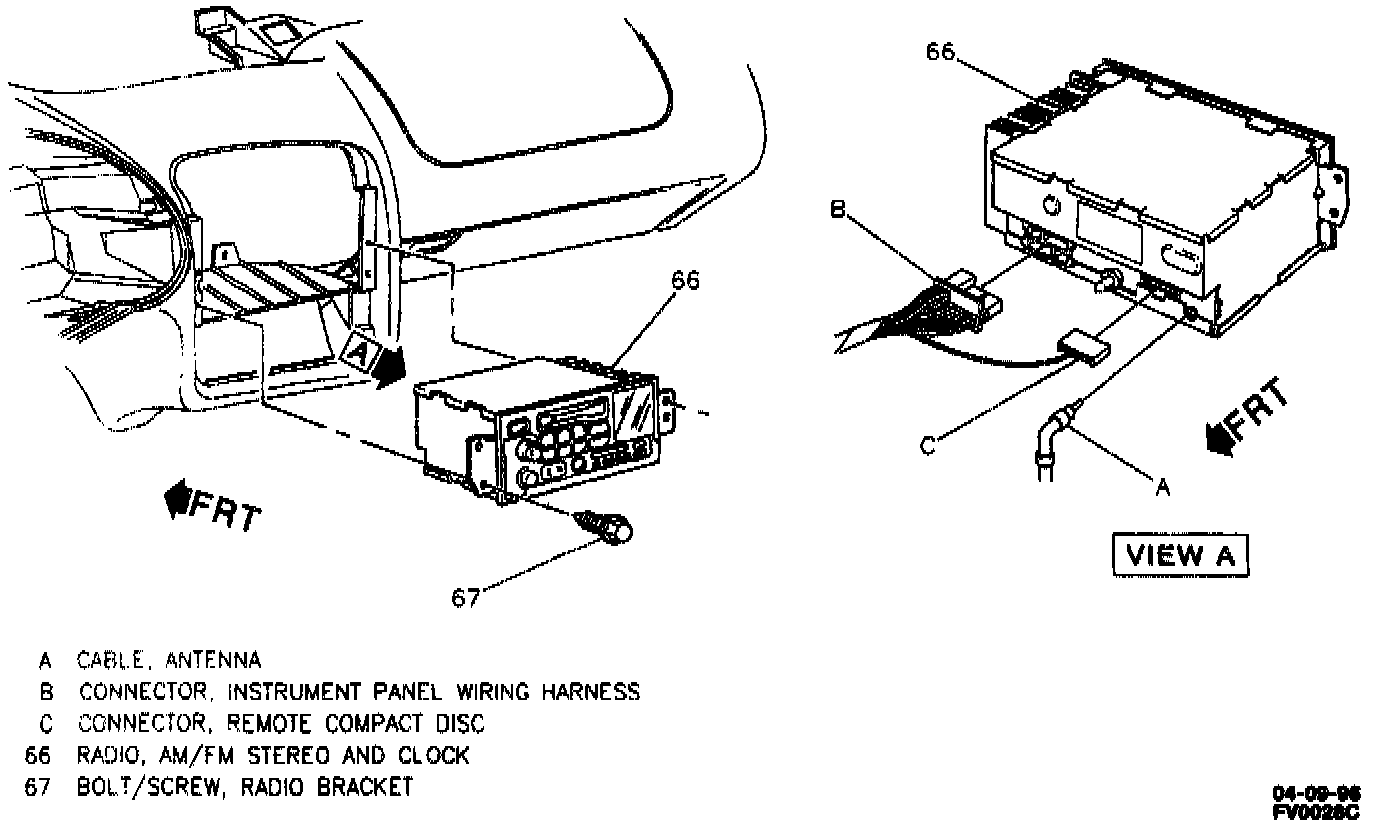

4. Radio bracket bolts/screws (67).
5. Slide the radio (66) out from the instrument panel.
6. Antenna cable and electrical connectors from radio (66).
7. Radio (66) from vehicle.

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Radio (66) to vehicle.
2. Electrical connectors and antenna cable to the radio (66).
3. Slide the radio (66) into die instrument panel.
4. Radio bracket bolts/screws (67).
Tighten
^ Radio bracket bolts/screws to 1.8 Nm (16 lb in).
5. Instrument panel accessory trim plate (15).
6. Electrical connectors to switches (7, 21 or 22), if equipped.
7. Snap instrument panel accessory trim plate (15) to instrument panel.
