Multiple Compact Disc Changer

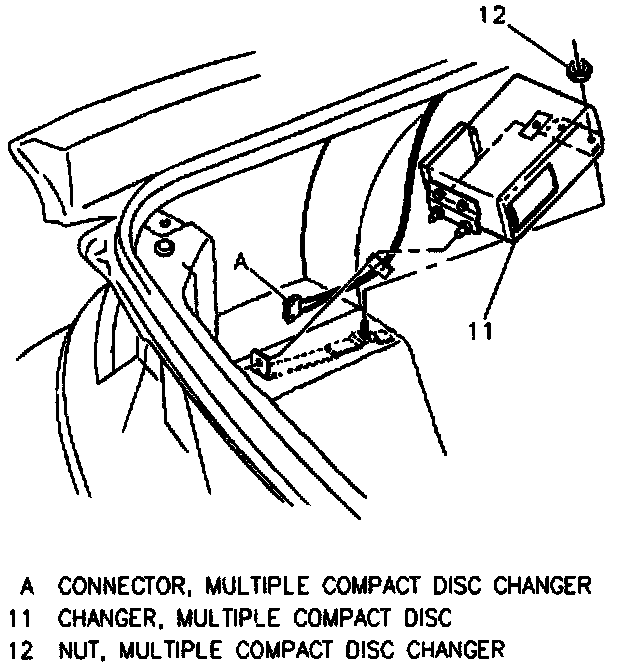

Multiple Compact Disc Changer:

REMOVE OR DISCONNECT
1. Open rear compartment lift window panel.
2. Twelve-disc magazine from CD player.
3. CD changer mounting nut (12).
4. Electrical connector.
5. CD changer (11).
6. Bolts/screws, and brackets from CD changer, if necessary.
Important
^ If transporting or shipping the CD changer, reinstall the shipper pin by inserting the pin into the original position and fixing in place with clear tape.
^ If installing a new CD changer, remove the shipper pin and cover the hole with the supplied adhesive material.

INSTALL OR CONNECT
1. Brackets and bolts/screws to CD changer, if necessary.
Tighten
^ Bracket bolts/screws to 1.9 N.m (17 lb. in.).
^ Bracket nut (bullet) to 2.5 N.m (22 lb. in.).
2. CD changer (11).
^ Coup-Position the CD changer using the front stud and hole of the brackets.
^ Convertible-Position the CD changer using the rear stud and hole of the brackets.
3. CD changer mounting nut (12).
Tighten
^ Nut (12) to 25 N.m (18 lb. ft.).
4. Electrical connector.
5. Twelve-disc magazine to CD changer.
6. Close rear compartment lift window panel.
