General Information

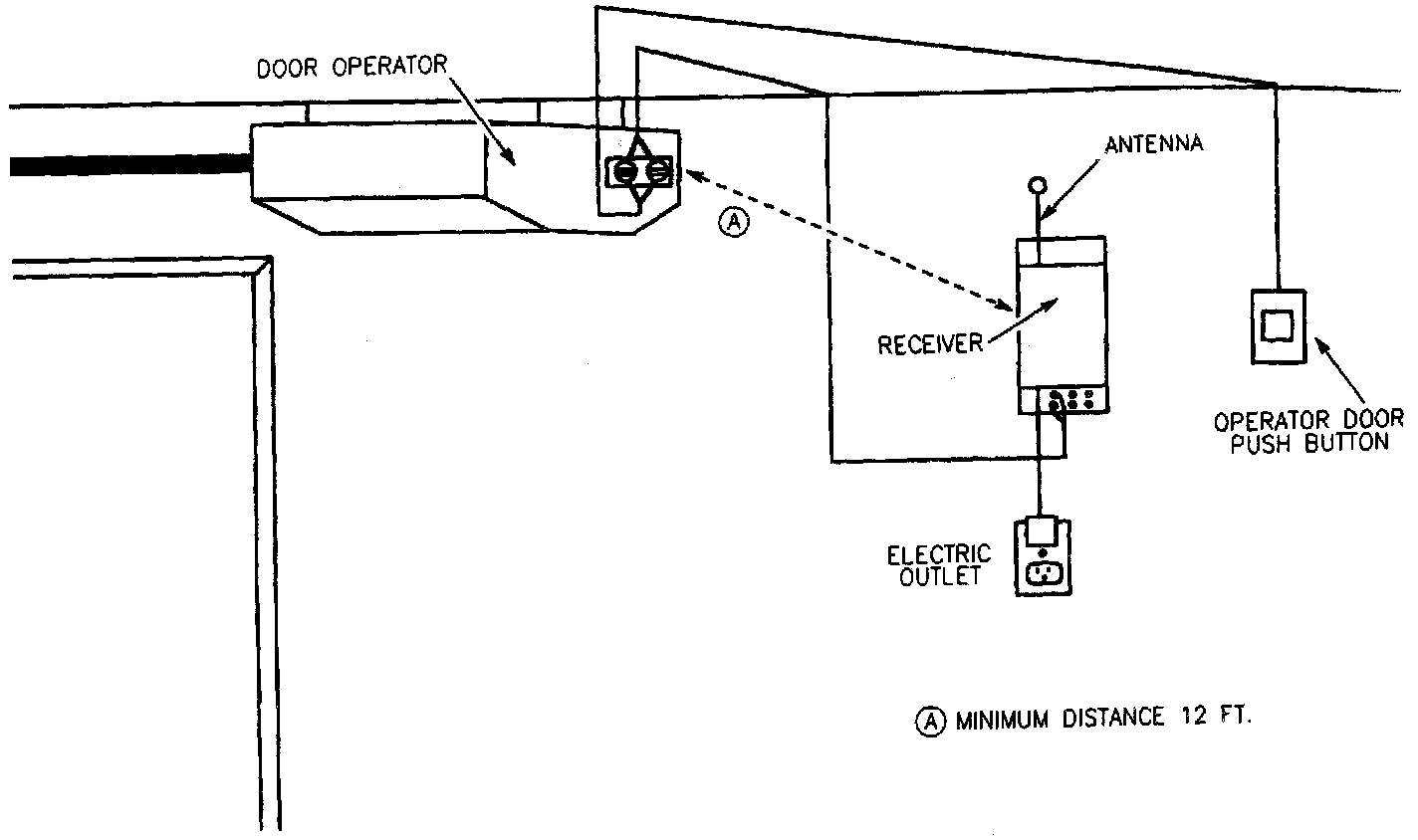

Garage Door Receiver Installation (Typical):

If the garage door opener system is inoperative, verify the following conditions before performing the garage door opener functional test.
^ Verify that the receiver and transmitter are coded the same.
^ Verify that the receiver unit has electrical power through the 110V transformer.
^ Verify that the device being operated has power.
^ Check the receiver hook-up wiring for damage. Breaks in the wire are usually found under staples, etc., or at connections.
^ Check that the antenna is properly installed in the receiver.
If the problem persists and the hand-held transmitter is confirmed to be functioning properly, then contact HomeLink TM at 1-800-355-3515 for additional assistance.

Prince Corporation
Attn: Customer Service
35 Madison Avenue
Holland, M1 49424
(616) 392-3234
7:00 AM - 3:30 PM (EST)
Technical Assistance
1-800-355-3515
