Garage Door Opener Transmitter: Service and Repair

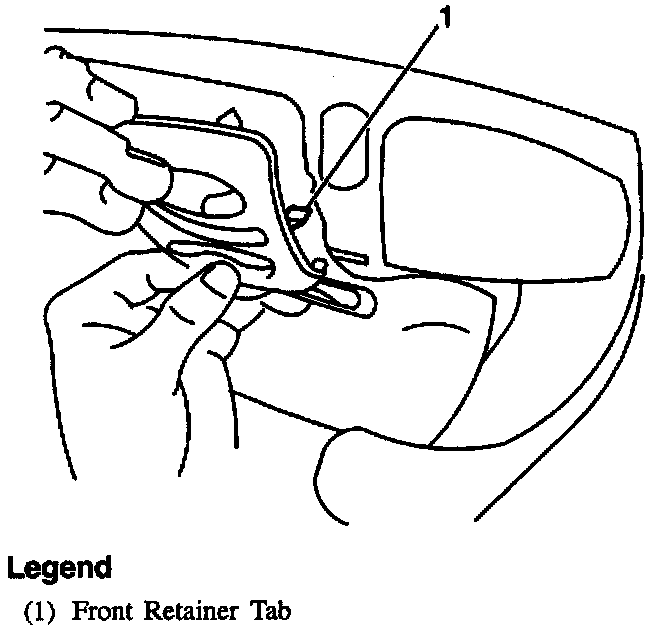

UGDO Removal (Part 1 Of 2):

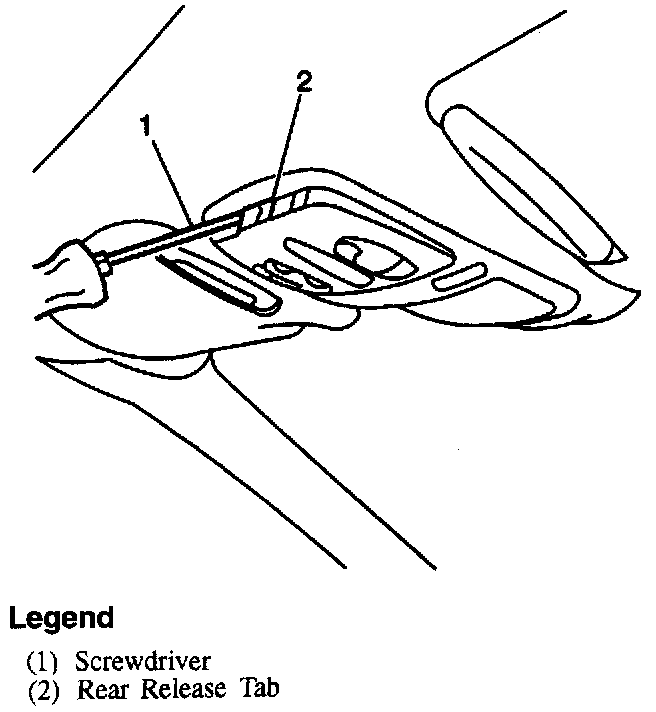

UGDO Removal (Part 2 Of 2):

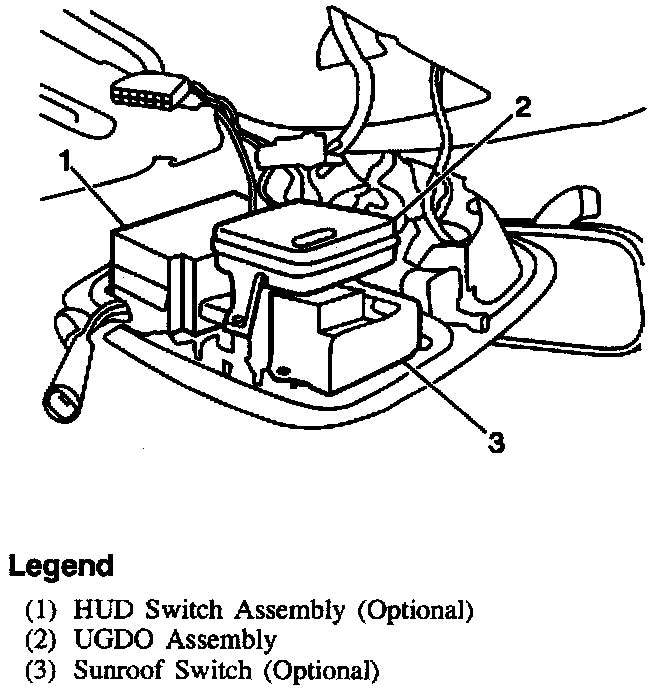

Overhead Console Component Location View:

REMOVE OR DISCONNECT
1. Insert flat bladed tool at rear edge of access door to disengage lock tab.
2. Disengage forward tabs from overhead console.
3. Electrical connector(s).
4. Two screws from UGDO to overhead console.

INSTALL OR CONNECT
1. Two screws attaching UGDO to roof console.
2. Electrical connector(s)
3. Position access door, align rear tabs into overhead console.
4. Push upward engaging front tab.
