Diagnostic Charts

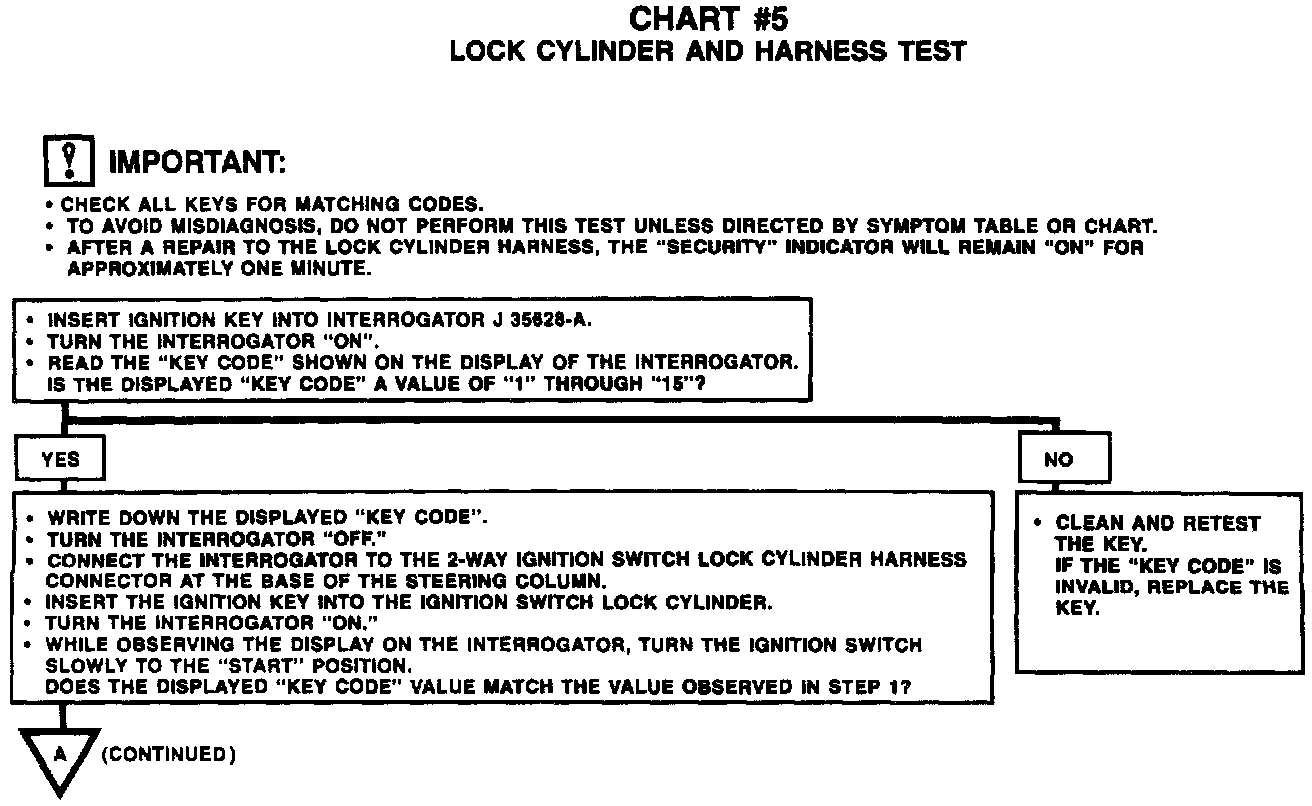

Chart #5 Lock Cylinder And Harness Test (Part 1 Of 2):

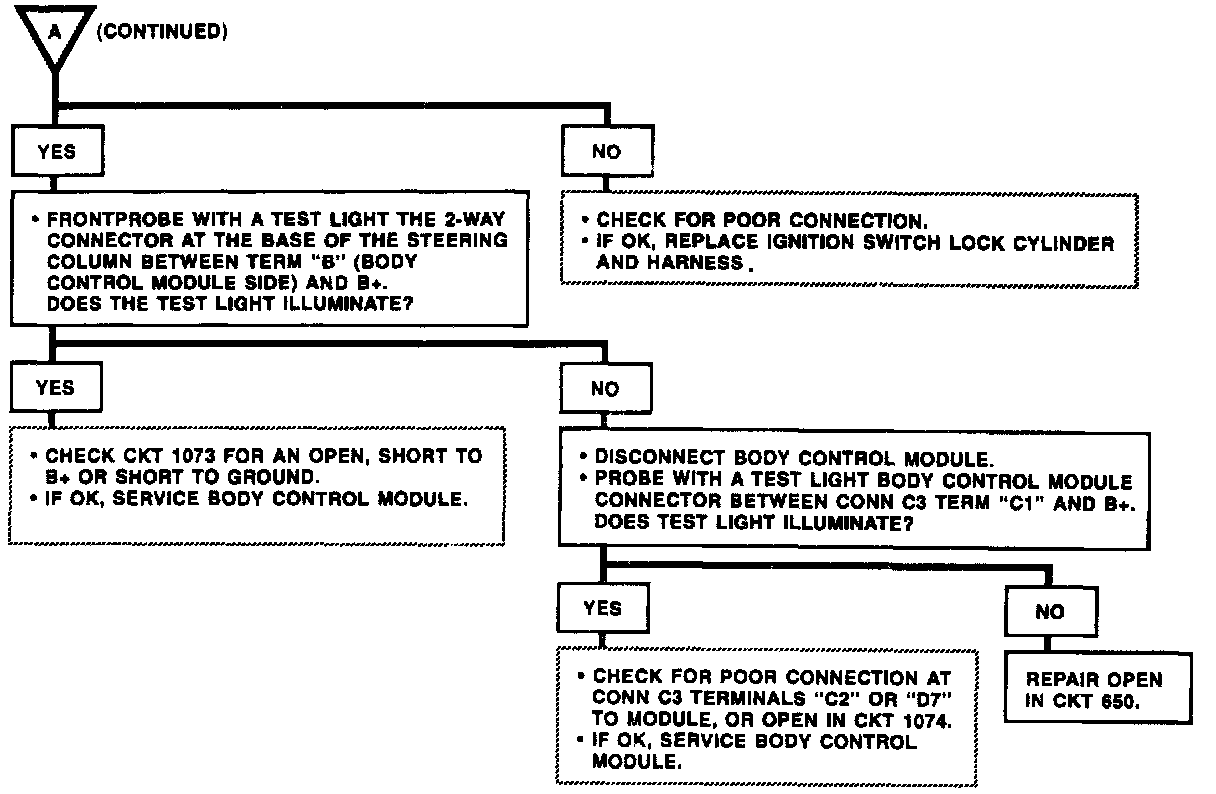

Chart #5 Lock Cylinder And Harness Test (Part 2 Of 2):
