VCM 24-Pin Connector

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1997 GMC Yukon, 1997 GMC Suburban, 1997 GMC Pickup, 1997 GMC Cab & Chassis, and 1997 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

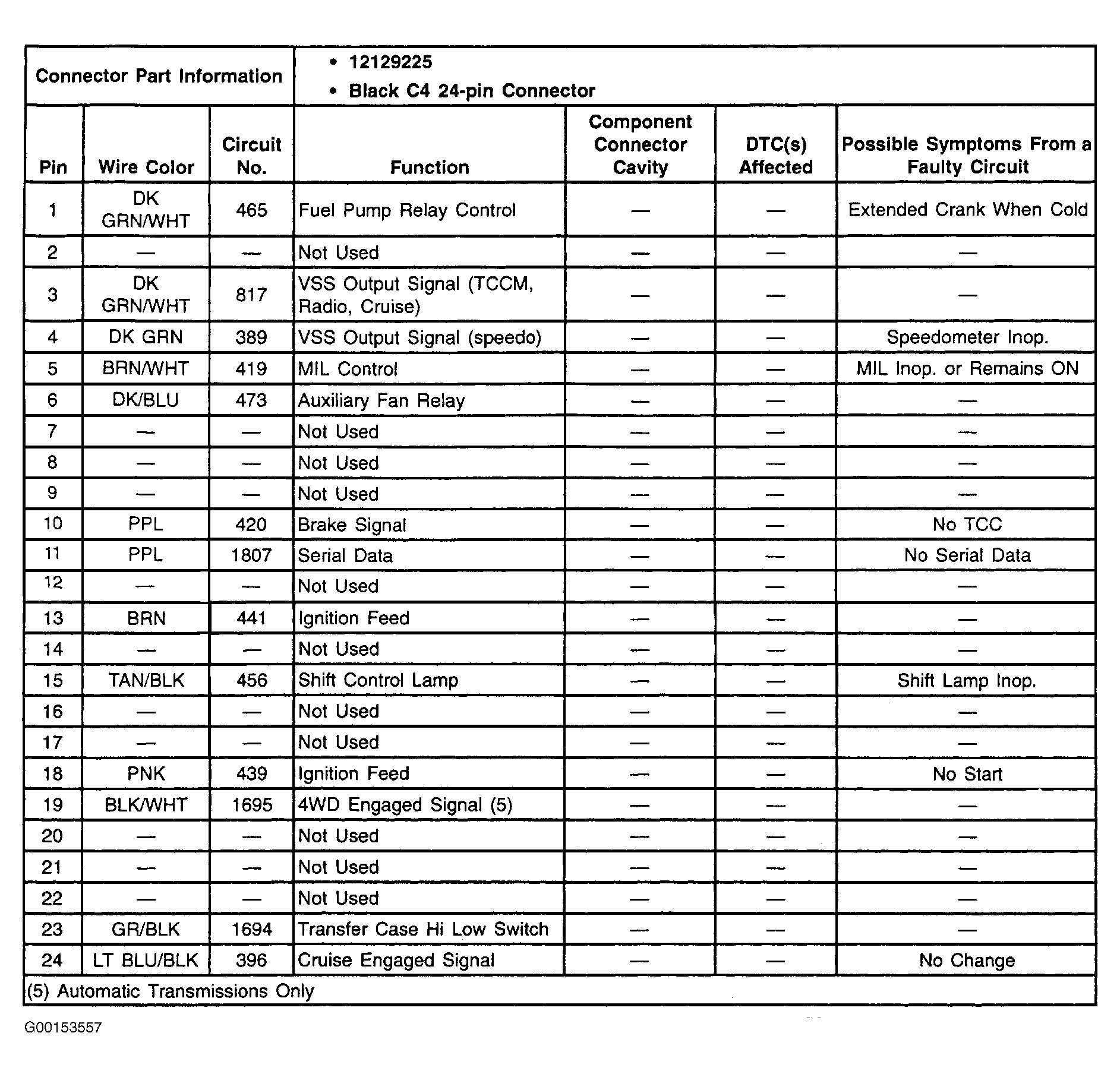

Fig 1: VCM 24-Pin Connector - Terminal Identification - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: VCM 24-Pin Connector (Black) - Legend - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
