VCM 32-Pin Connector

WARNING: This page is about a different car, the 1997 GMC Pickup and 1997 Chevrolet Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: VCM 32-Pin Connector - Terminal Identification - (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

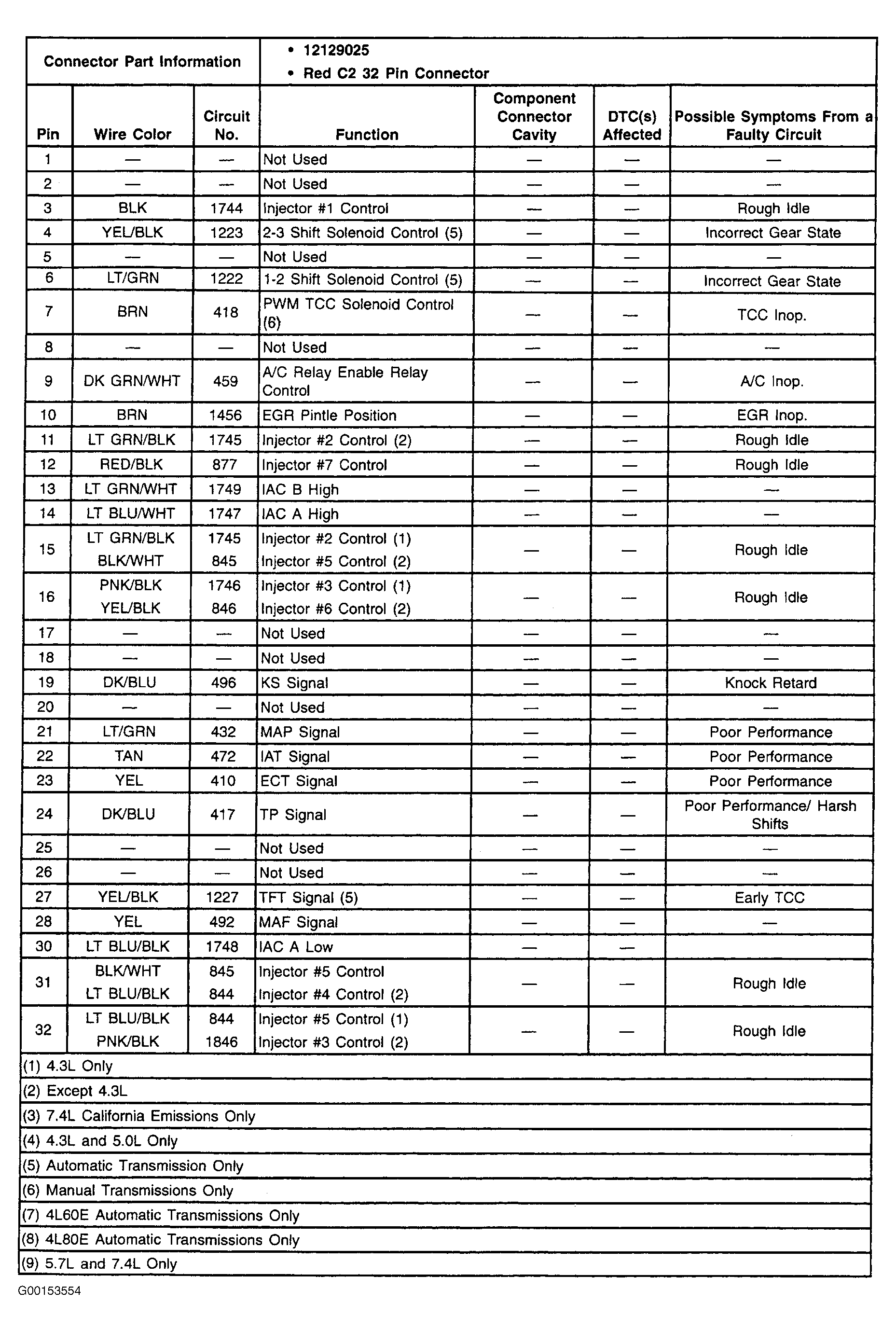

Fig 2: VCM 32-Pin Connector (Blue) - Legend - (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

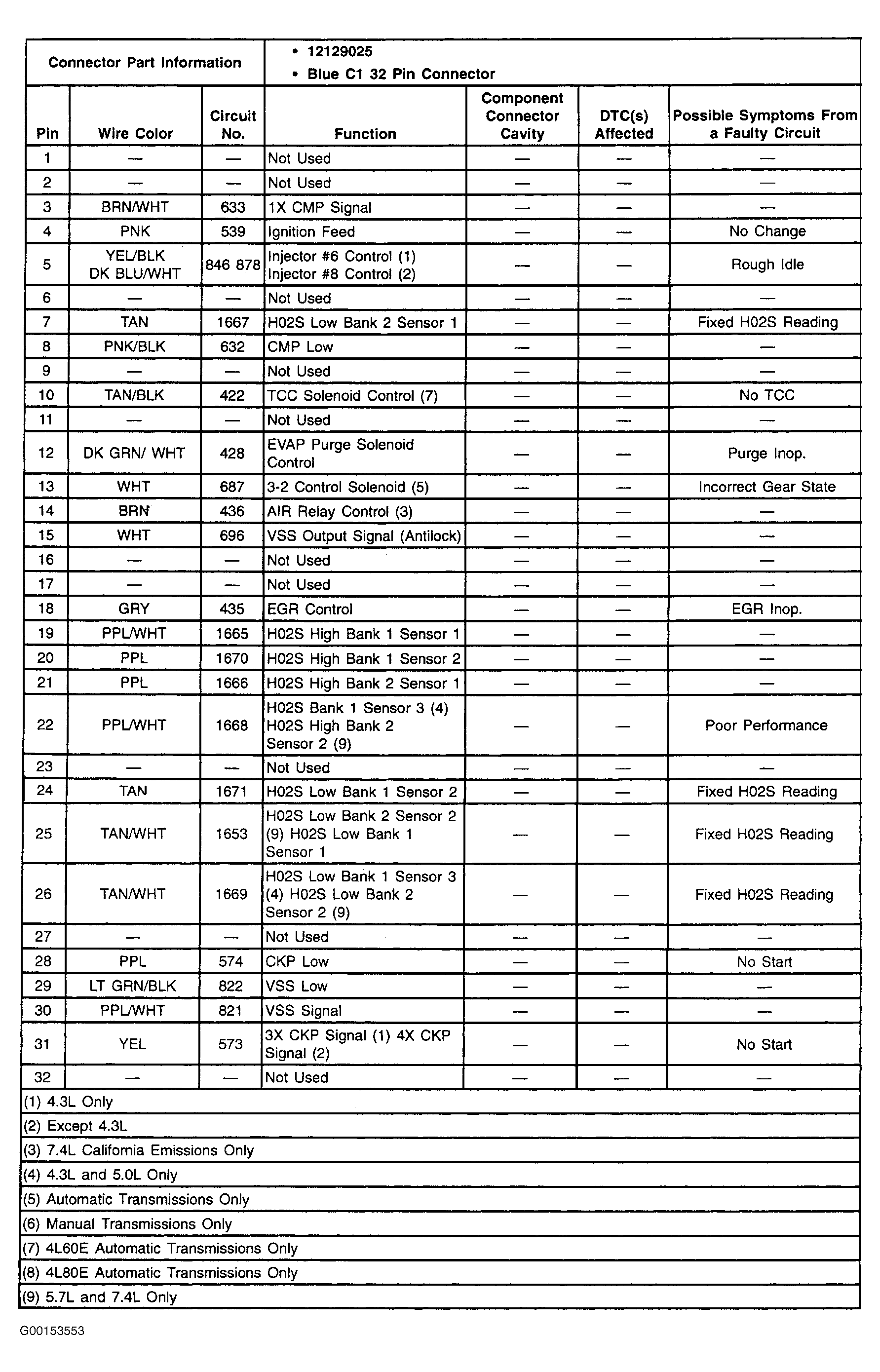

Fig 3: VCM 32-Pin Connector (Red) - Legend - (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

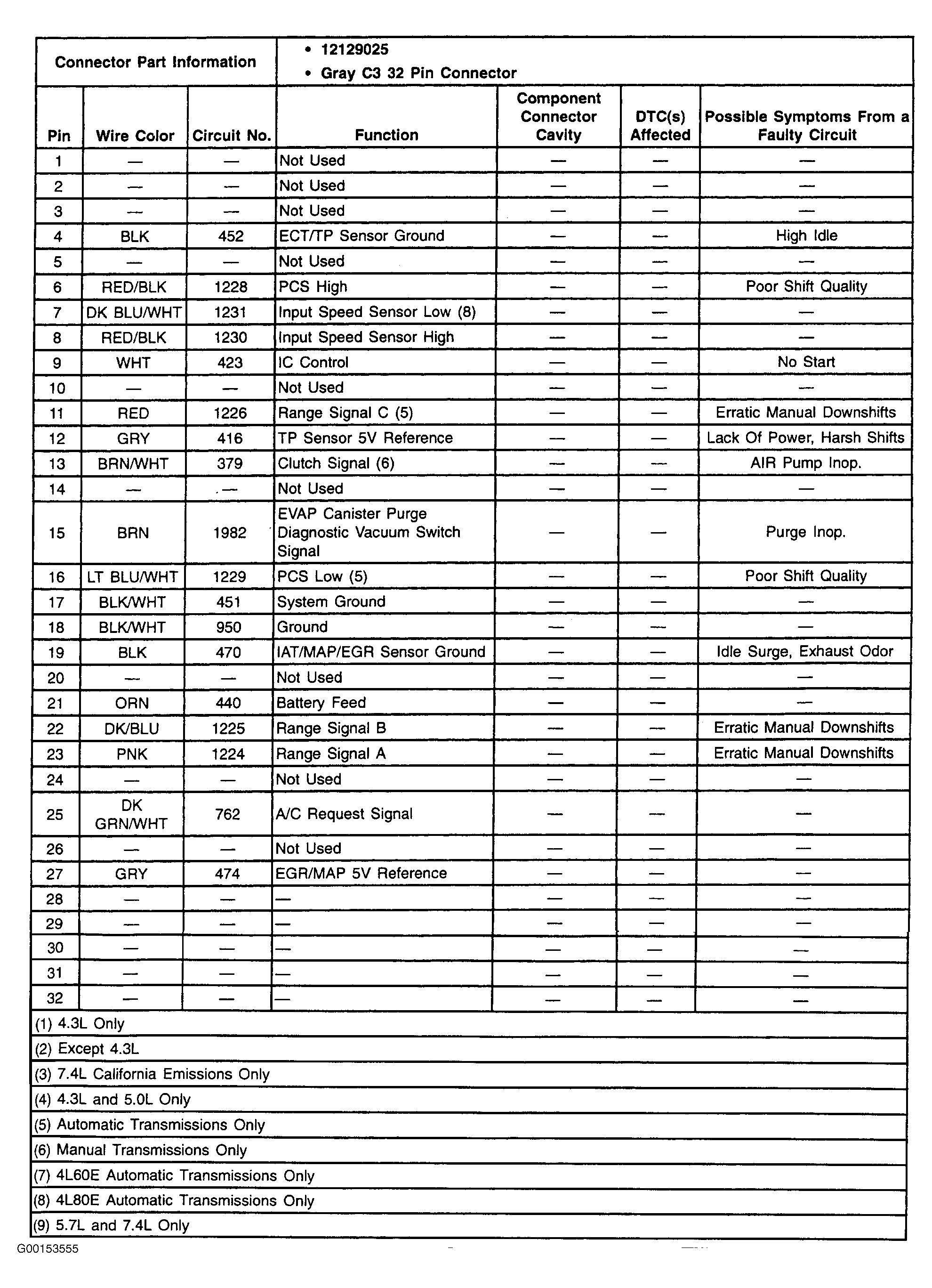

Fig 4: VCM 32-Pin Connector (Gray) - Legend - (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
