VCM Connectors

WARNING: This page is about a different car, the 1997 GMC Pickup and 1997 Chevrolet Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: VCM 32 Pin Connector - Terminal Identification (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

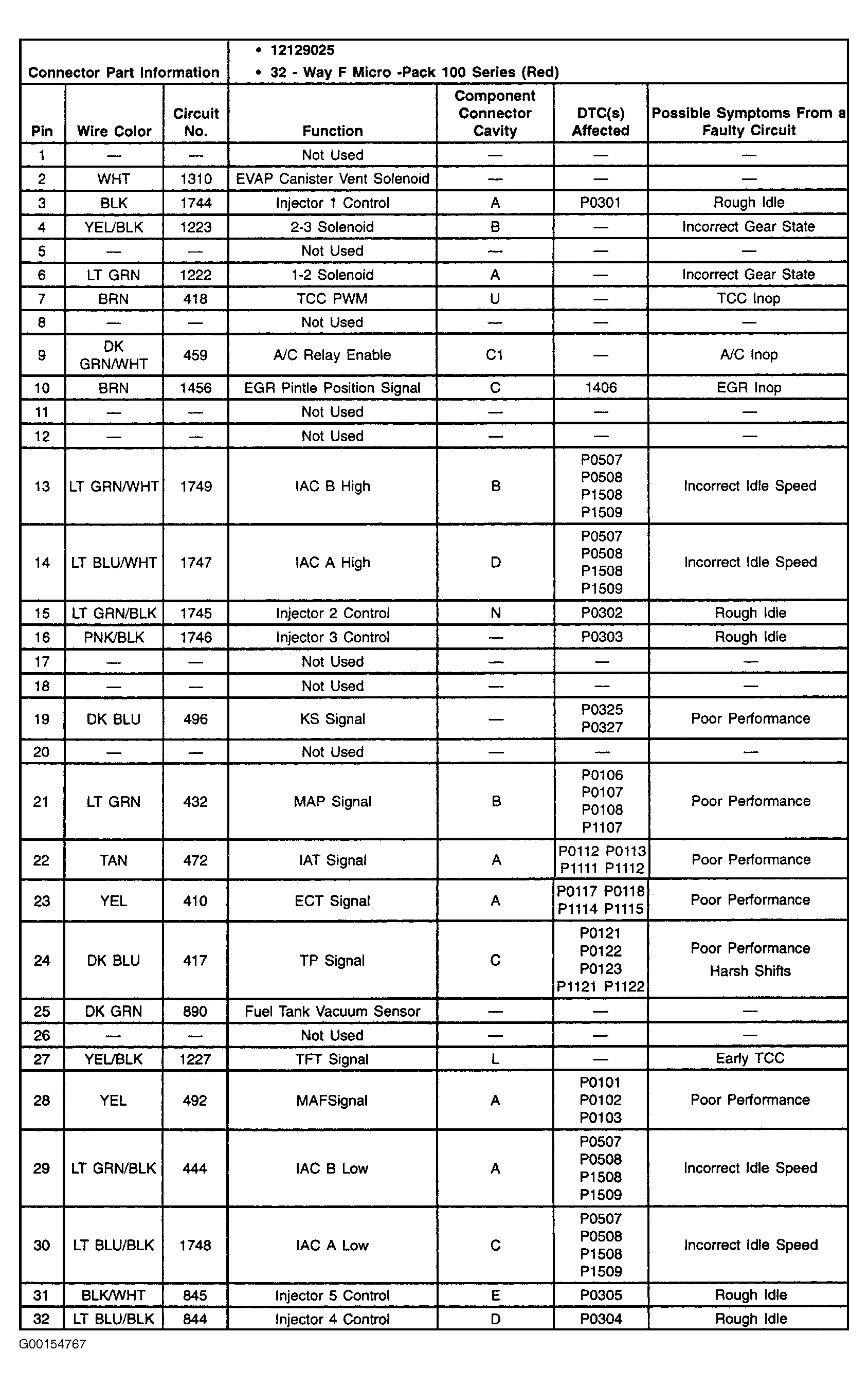

Fig 2: VCM 32 Pin Connector C1 (Blue) - Legend (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

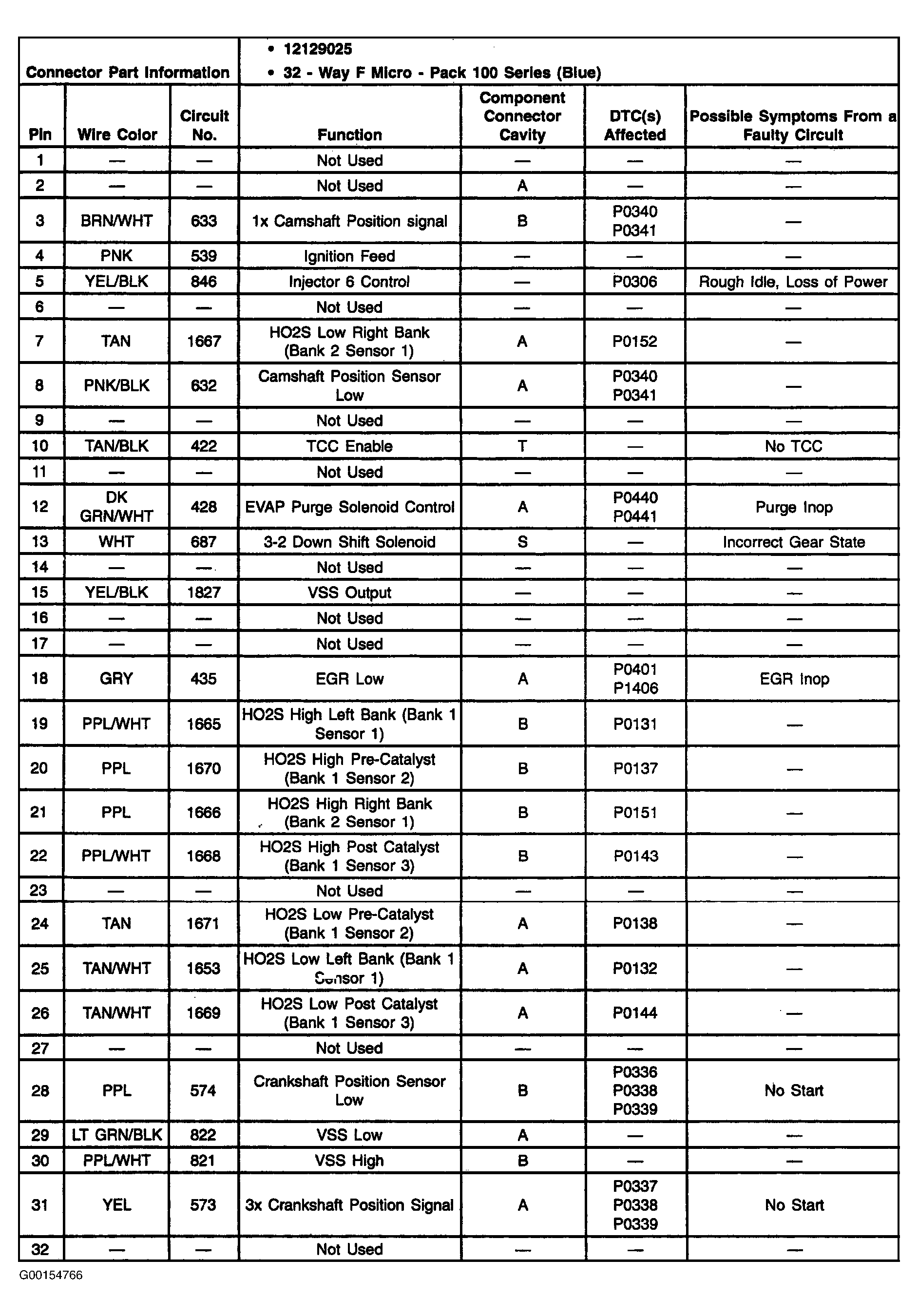

Fig 3: VCM 32 Pin Connector C2 (Red) - Legend (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

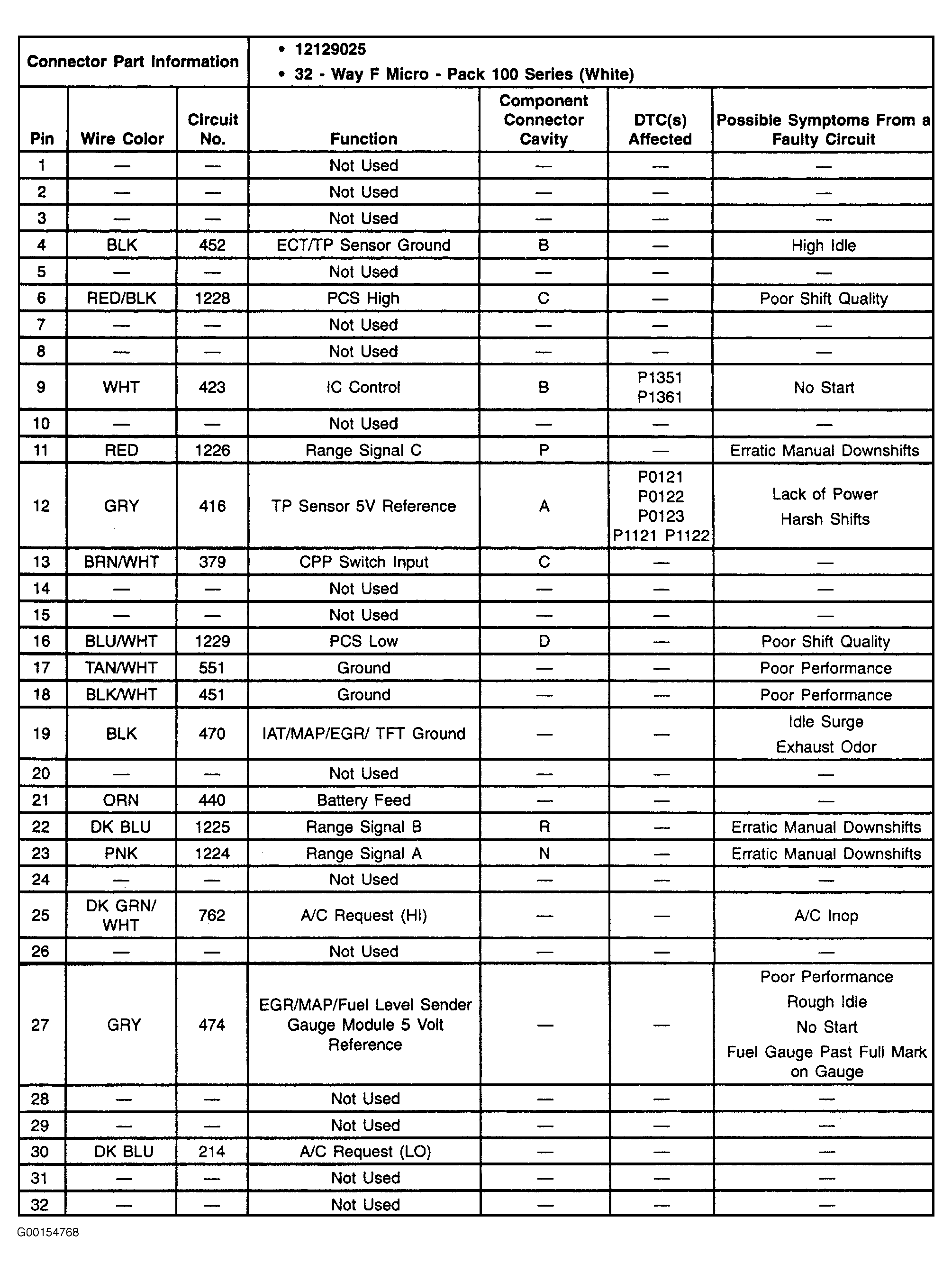

Fig 4: VCM 32 Pin Connector C3 (White) - Legend (4 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 5: VCM 24 Pin Connector C4- Terminal Identification (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

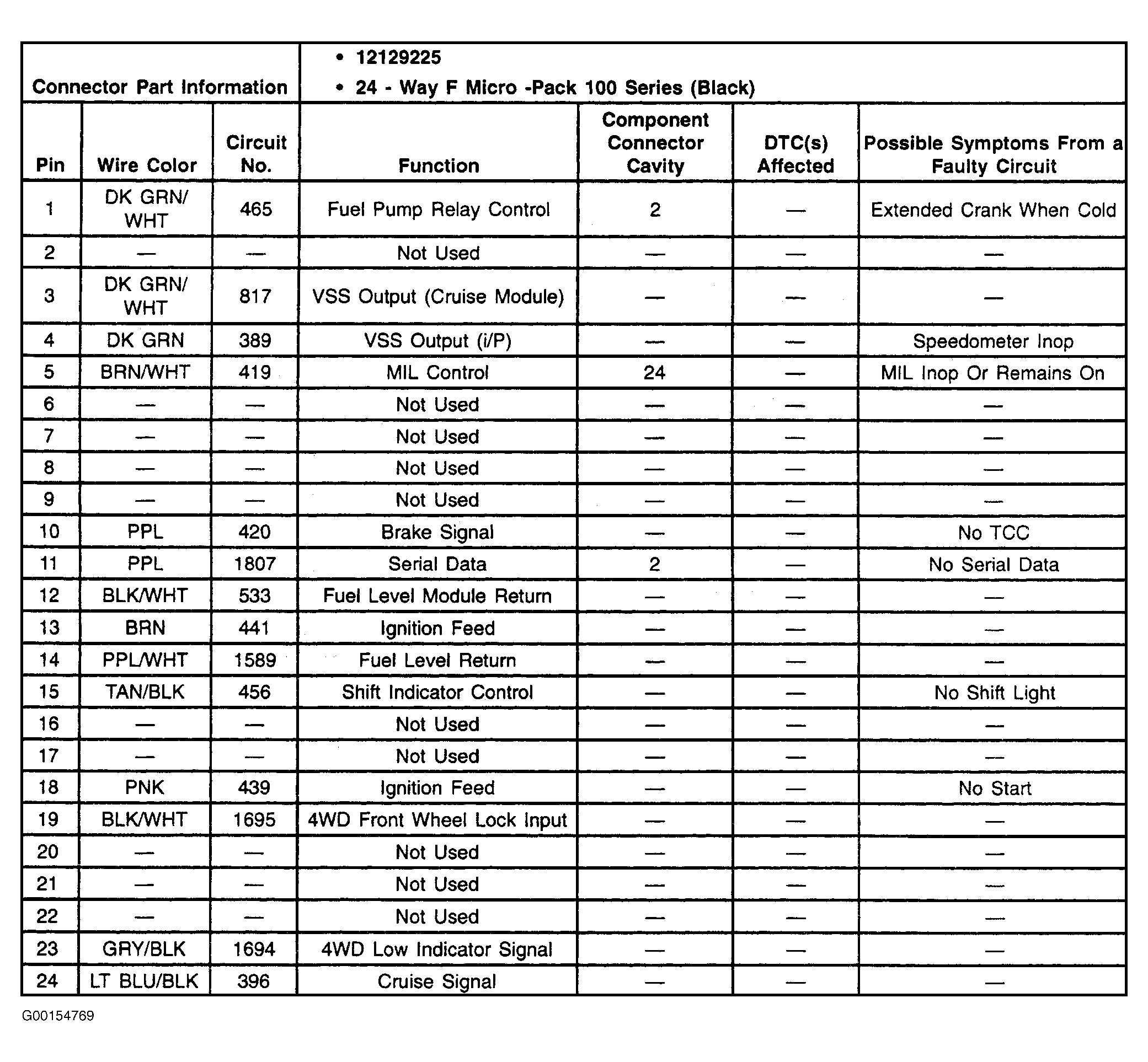

Fig 6: VCM 24 Pin Connector C4 (Black) - Legend (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
