Injection Pump: Installation

  1. Install injection pump gasket. Install injection pump, aligning locating pin on injection pump hub with slot in injection pump gear. Loosely install injection pump mounting nuts.
  2. Align timing marks on injection pump flange and front cover. Tighten injection pump mounting nuts to specification. Install injection pump gear-to-injection pump bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
  3. To complete installation, reverse removal procedure. Ensure fuel lines are properly connected to ports on injection pump. See Fig 1.

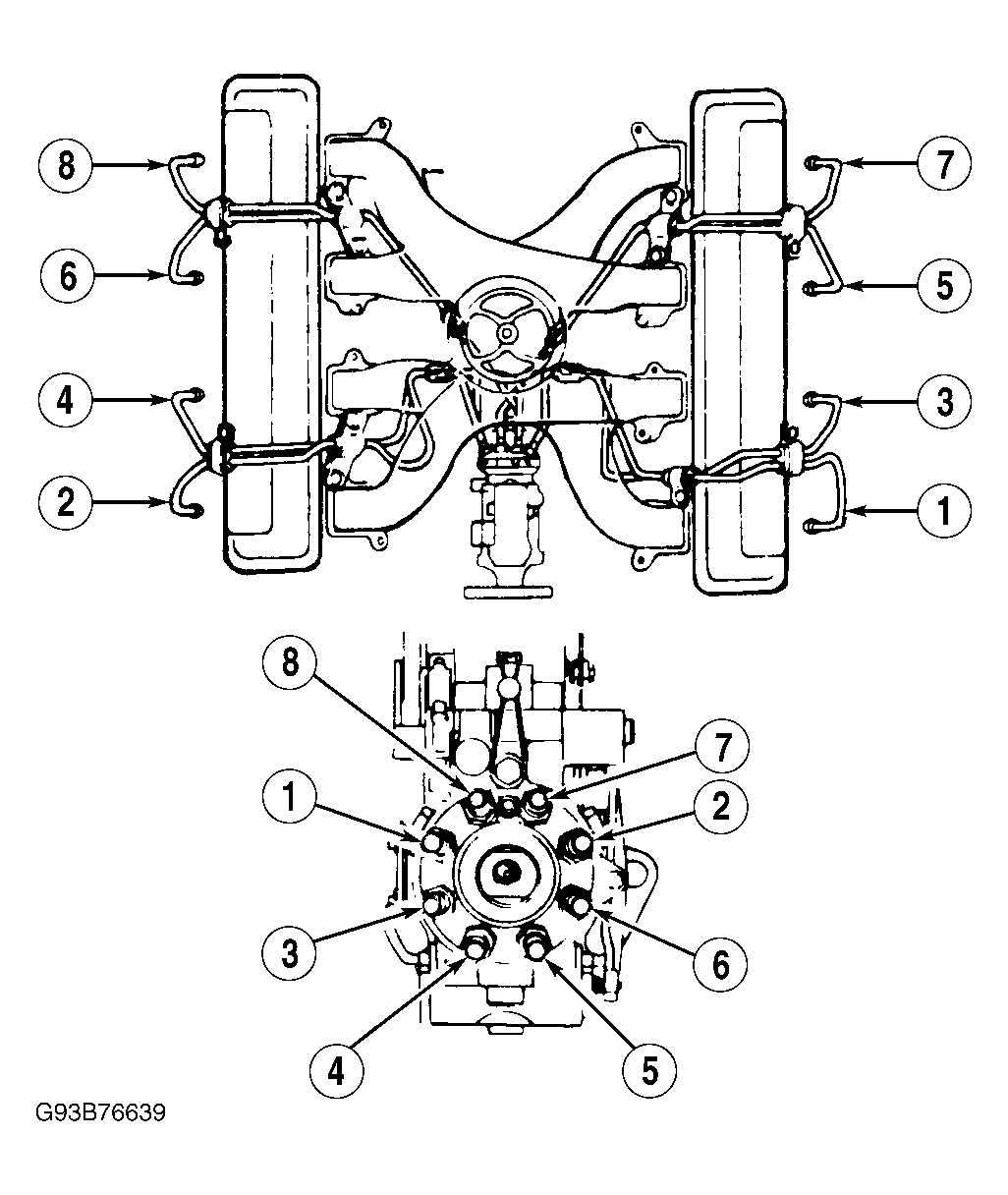

Fig 1: Identifying Fuel Injection Lines
G93B76639Courtesy of GENERAL MOTORS CORP.
