Disc Brakes & Drum Brakes: Overhaul

NOTE: For overhaul procedures, use exploded views. See Fig 1 -Fig 3 .

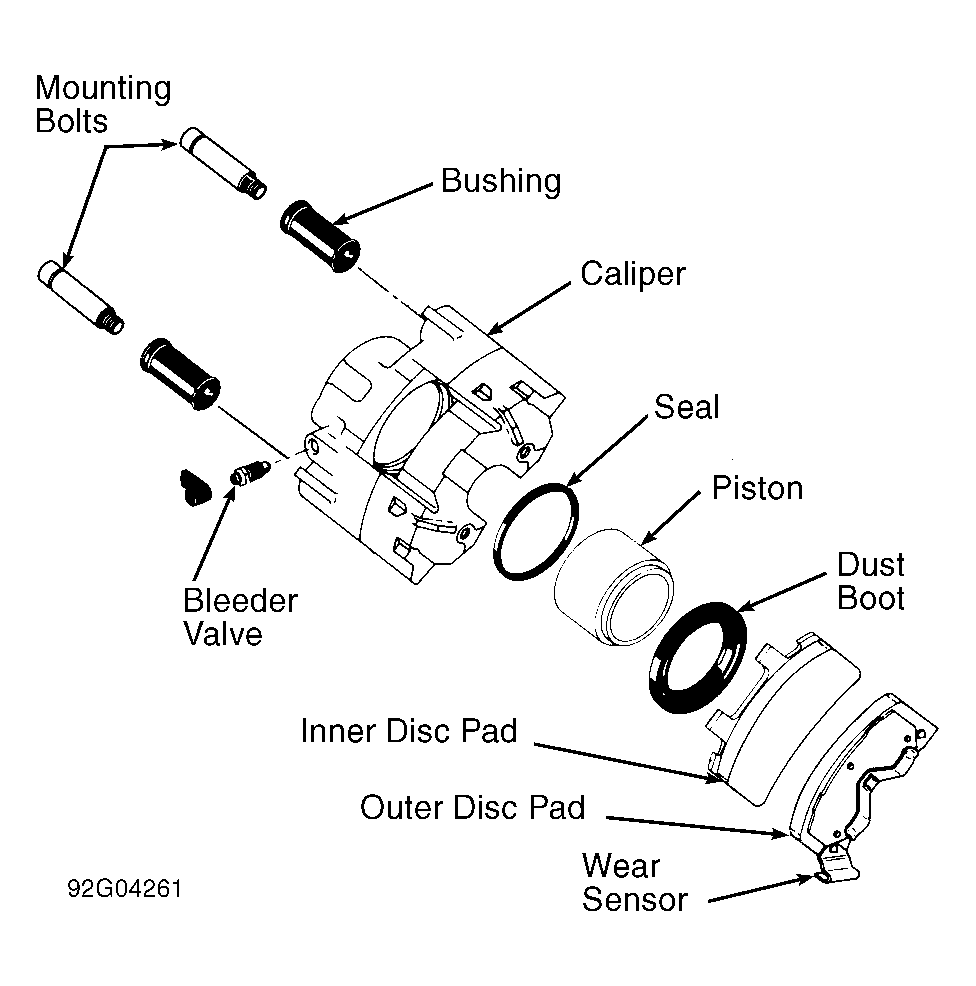

Fig 1: Exploded View Of Front Brake Caliper Assembly
G92G04261Courtesy of GENERAL MOTORS CORP.
Fig 2: Exploded View Of Master Cylinder
G95C13021Courtesy of GENERAL MOTORS CORP.

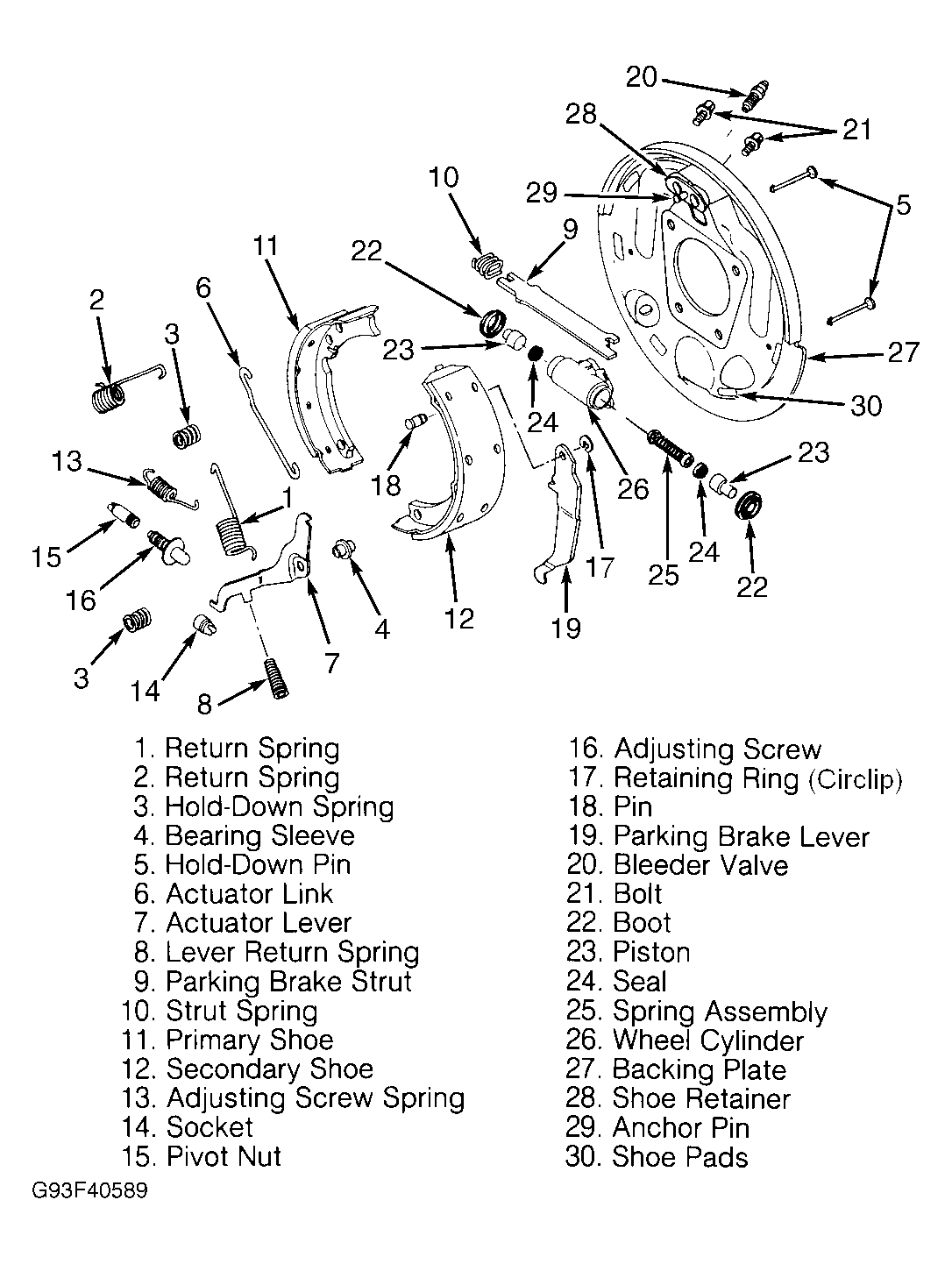

Fig 3: Exploded View Of Rear Drum Brake Assembly
G93F40589Courtesy of GENERAL MOTORS CORP.
