Reassembly (Cam Unit With 9 1/2" Ring Gear)

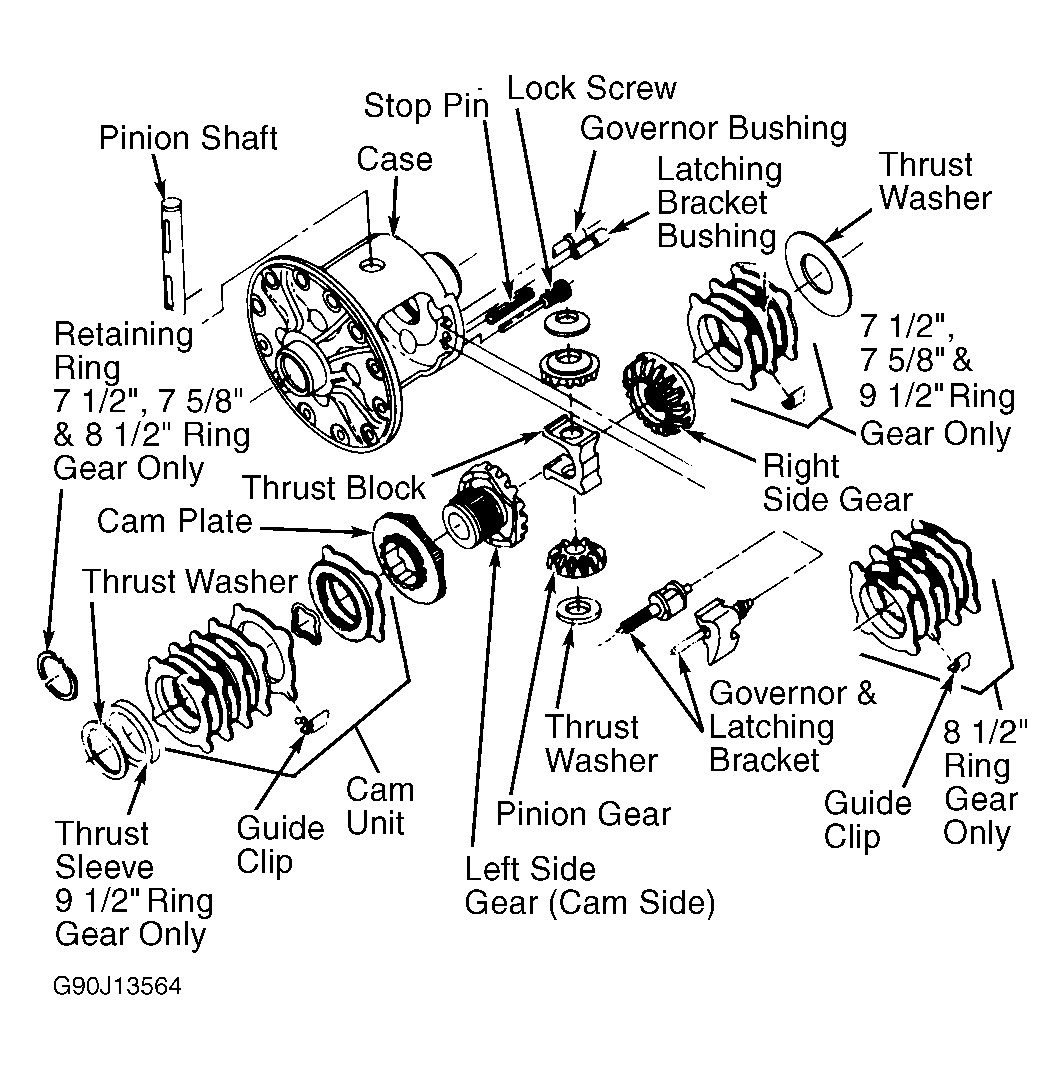

Install cam plate on left side gear. Install wave spring. Install clutch plates. Install clutch plates in alternating sequence. See Figure. Press thrust sleeve on left side gear until sleeve is even with surface of left side gear disc splines.
Use grease to hold guide clips in place. Install guide clips on clutch plates. If side gear or thrust sleeve were replaced, measure and record overall length of gear assembly from front of gear to back of thrust sleeve and thrust washer.
Compare new measurement with original measurement taken during disassembly. If difference between 2 measurements is .003" (.07 mm) or more, install NEW thrust washer to obtain measurement nearest to original measurement.
