DTC 67 - Open Motor Circuit Or Shorted BPMV Output; DTC 68 -

Locked Motor Or Shorted Motor Circuit

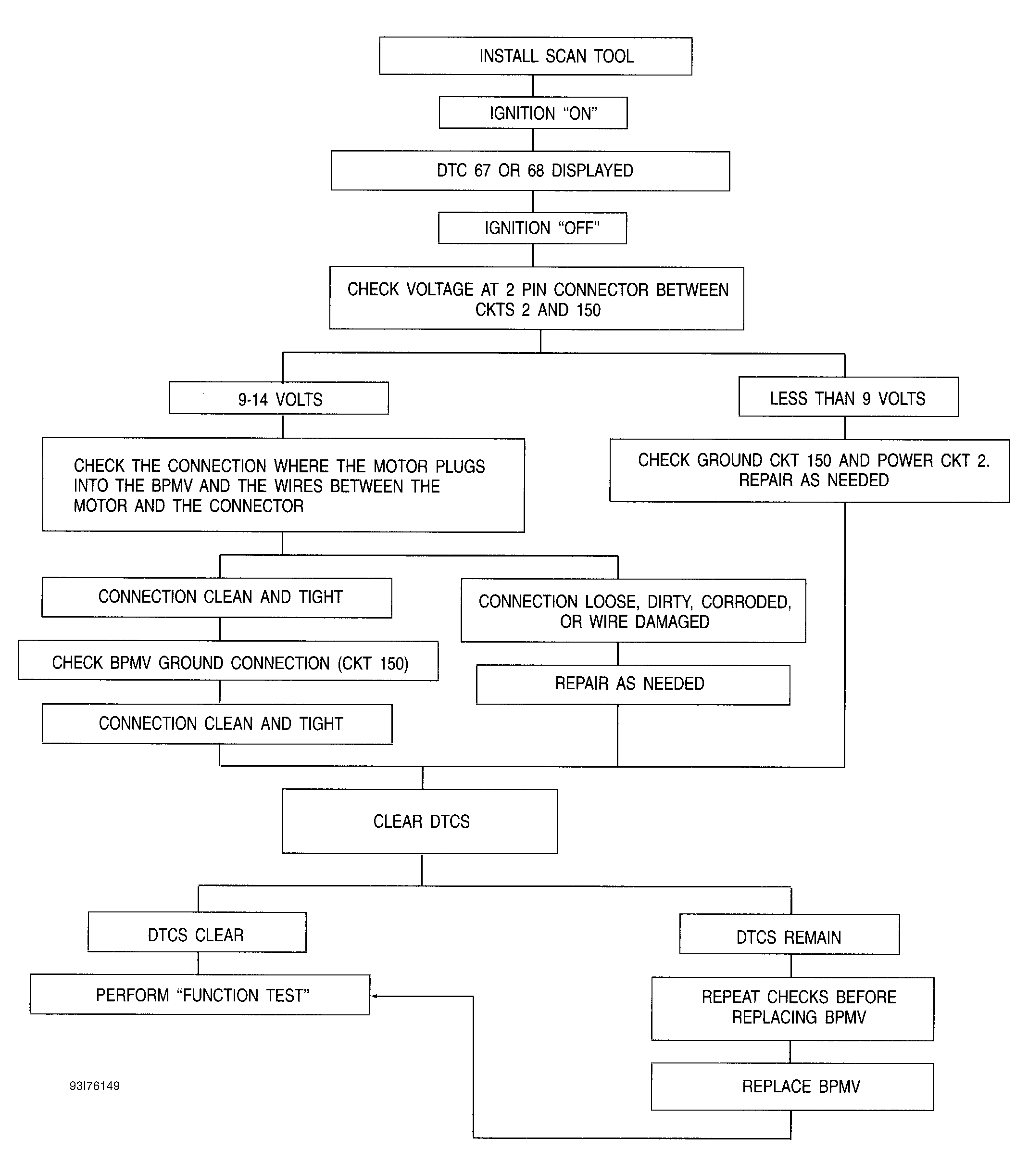

Fig 1: DTC 67 Open Motor Circuit Or Shorted BPMV Output; DTC 68 Locked Motor Or Shorted Motor Circuit Flow Chart

Courtesy of GENERAL MOTORS CORP.
