DTC 65 Or 66 - Open Or Shorted Pump Motor Relay

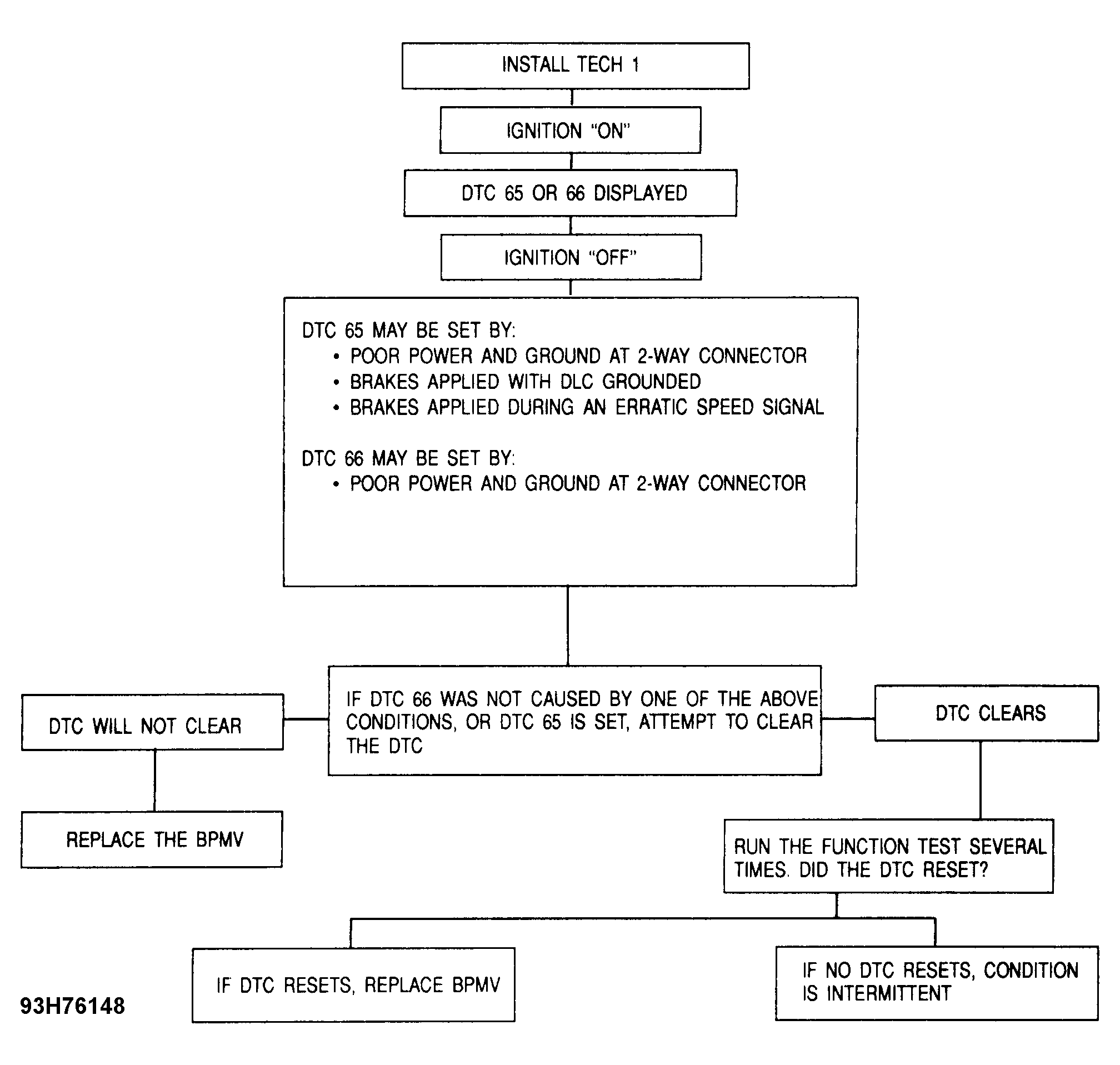

Fig 1: DTC 65 Or 66 Open Or Shorted Pump Motor Relay Flow Chart

G93H76148

Courtesy of GENERAL MOTORS CORP.
