DTC 36 - Missing Vehicle Speed Sensor Signal

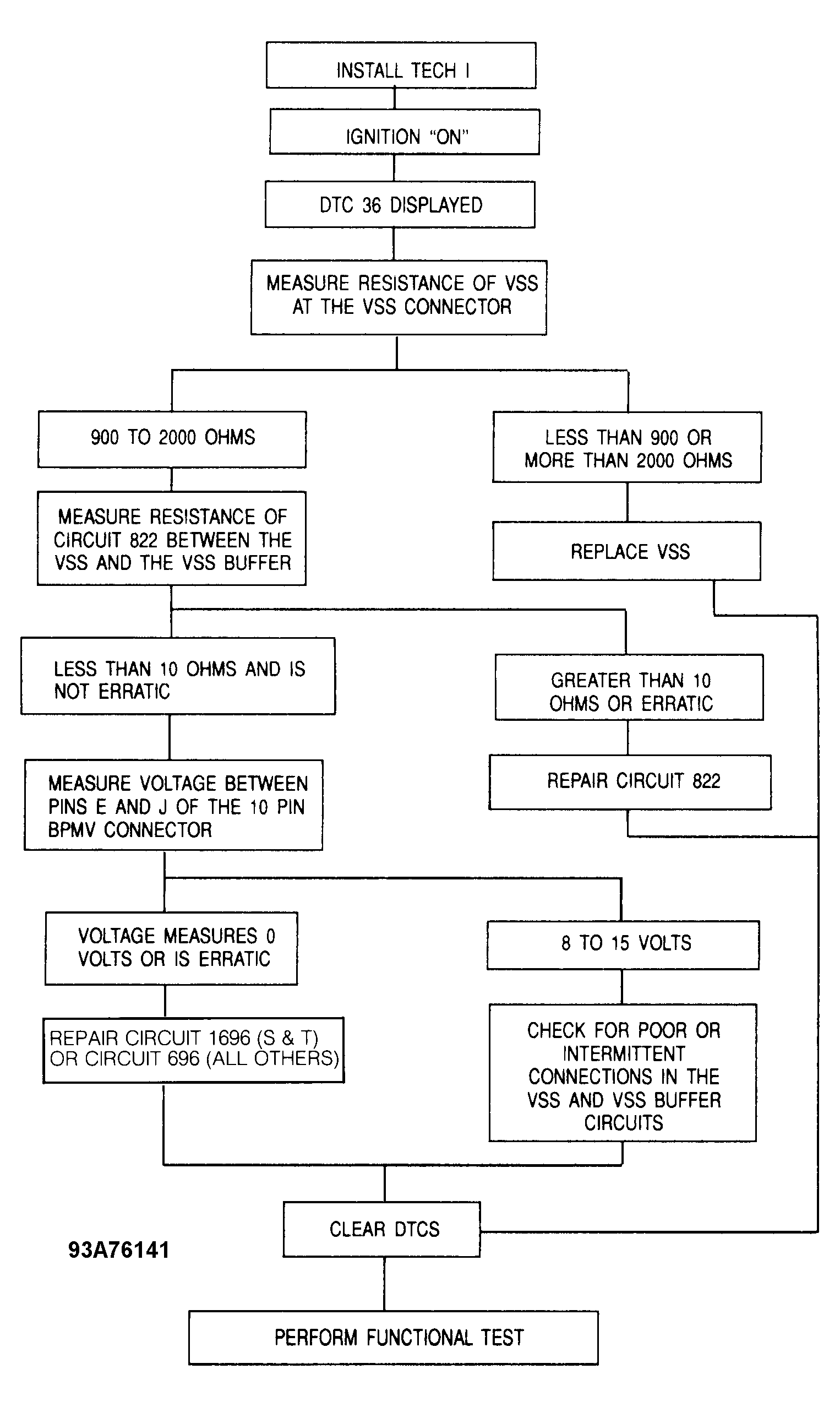

Fig 1: DTC 36 Missing Vehicle Speed Sensor Signal Flow Chart

G93A76141

Courtesy of GENERAL MOTORS CORP.
