DTC 35 - Open Or Grounded Vehicle Speed Signal Circuit

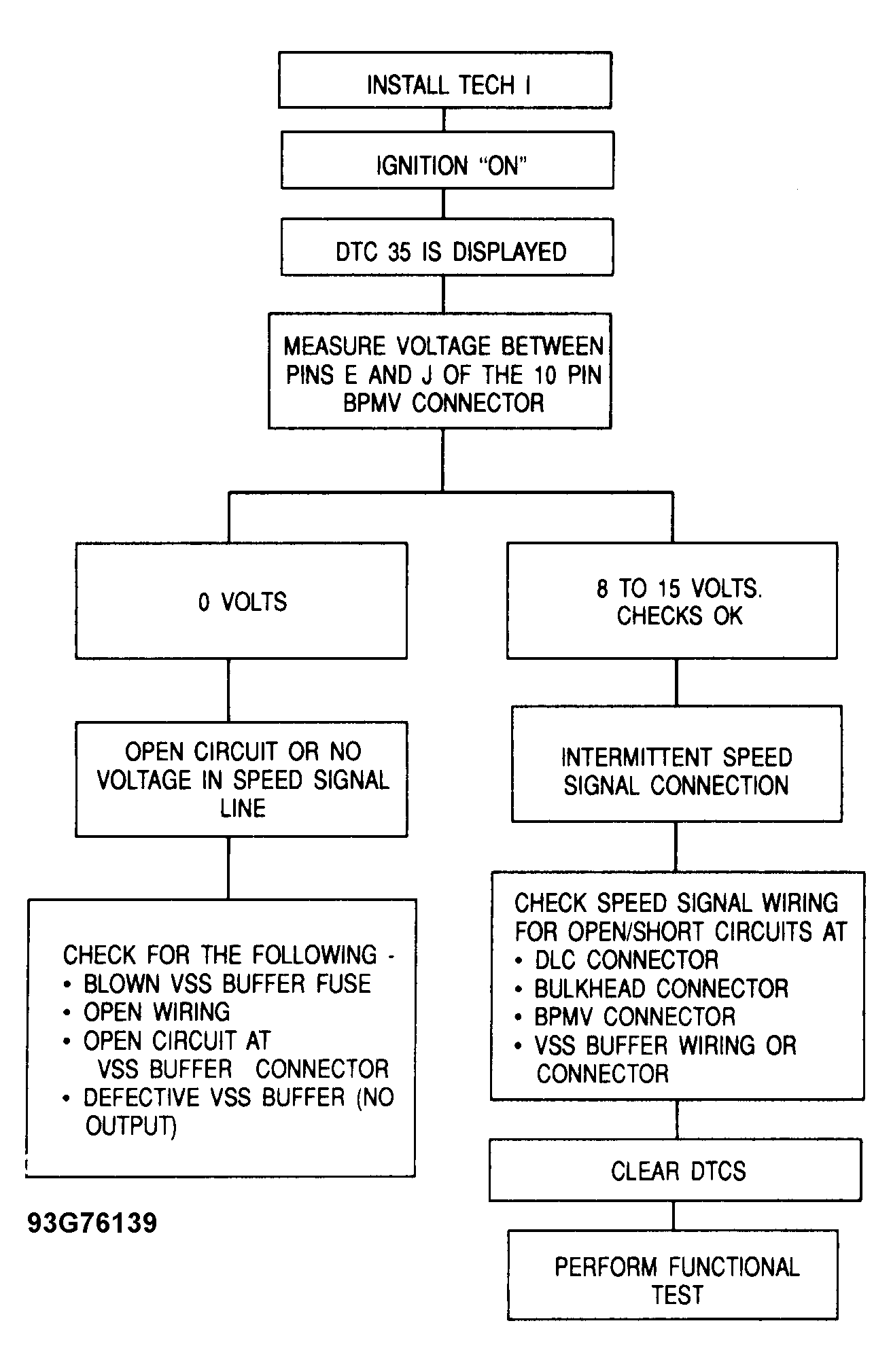

Fig 1: DTC 35 Open Or Grounded Vehicle Speed Signal Circuit Flow Chart

G93G76139

Courtesy of GENERAL MOTORS CORP.
