DTC 29 - Simultaneous Drop-Out Of Front Speed Sensors

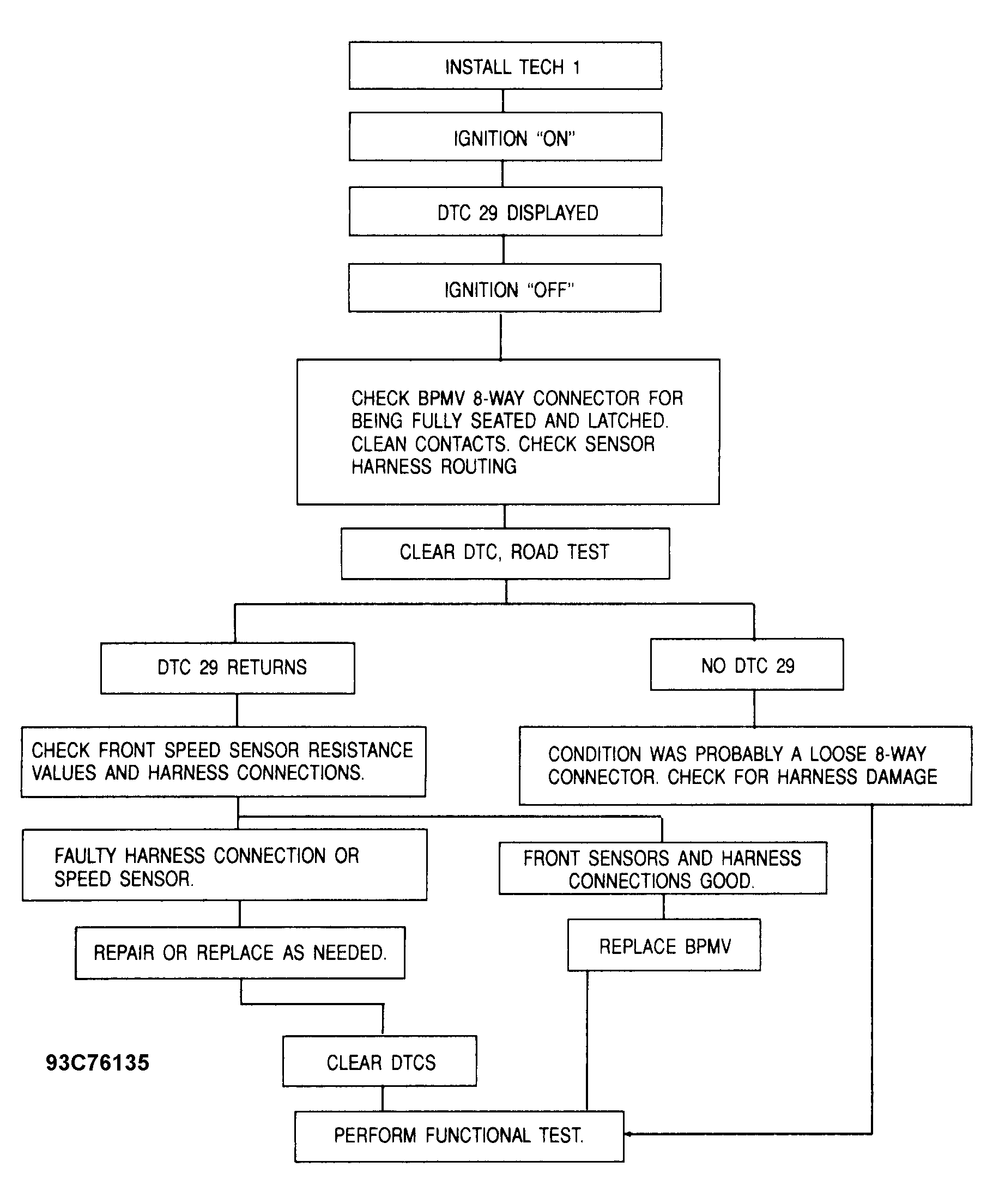

Fig 1: DTC 29 Simultaneous Drop-Out Of Front Speed Sensors Flow Chart

G93C76135

Courtesy of GENERAL MOTORS CORP.
