DTC 27 - Erratic Left Front Speed Sensor

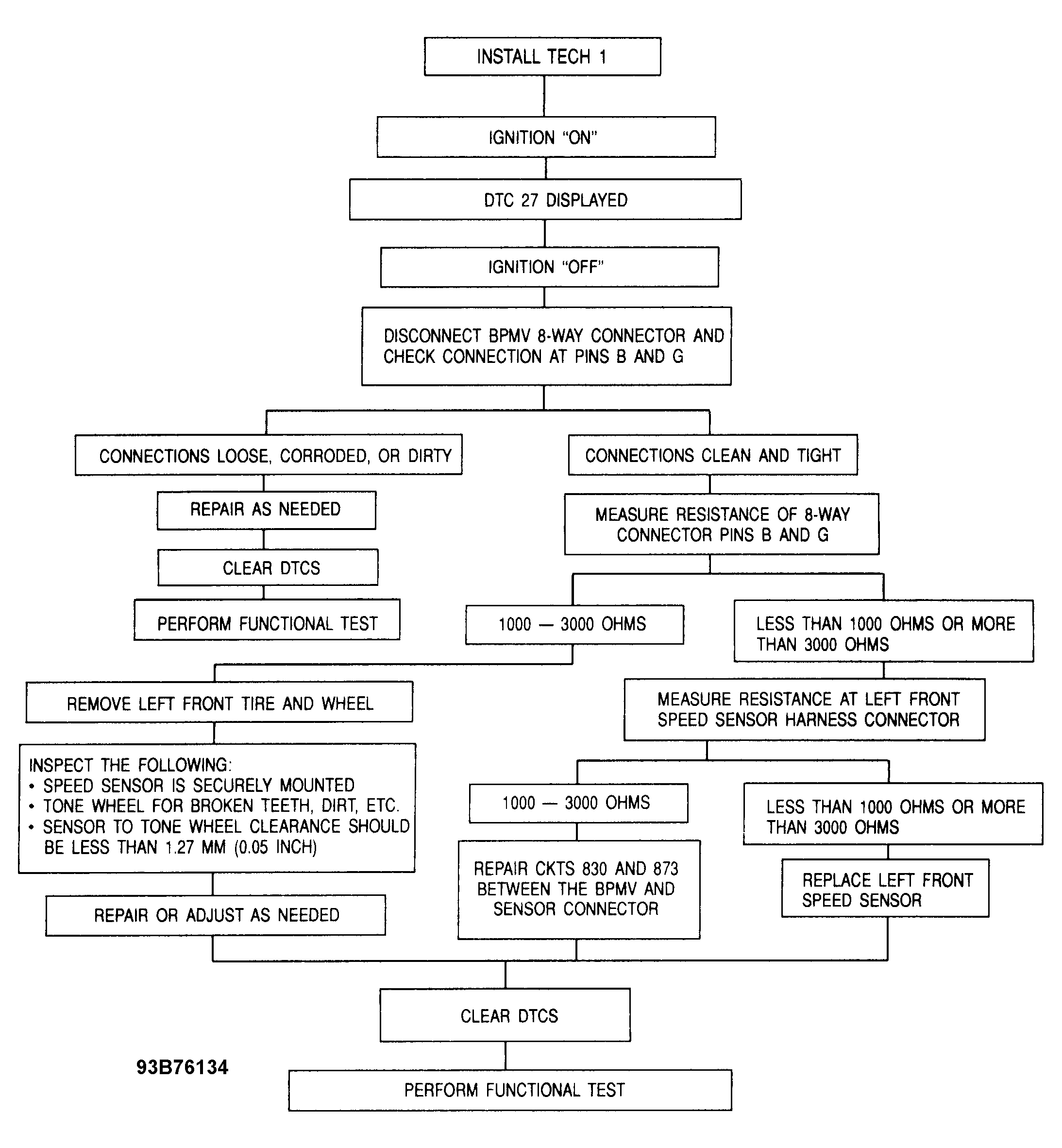

Fig 1: DTC 27 Erratic Left Front Speed Sensor Flow Chart

G93B76134

Courtesy of GENERAL MOTORS CORP.
