DTC 26 - Missing Left Front Speed Signal

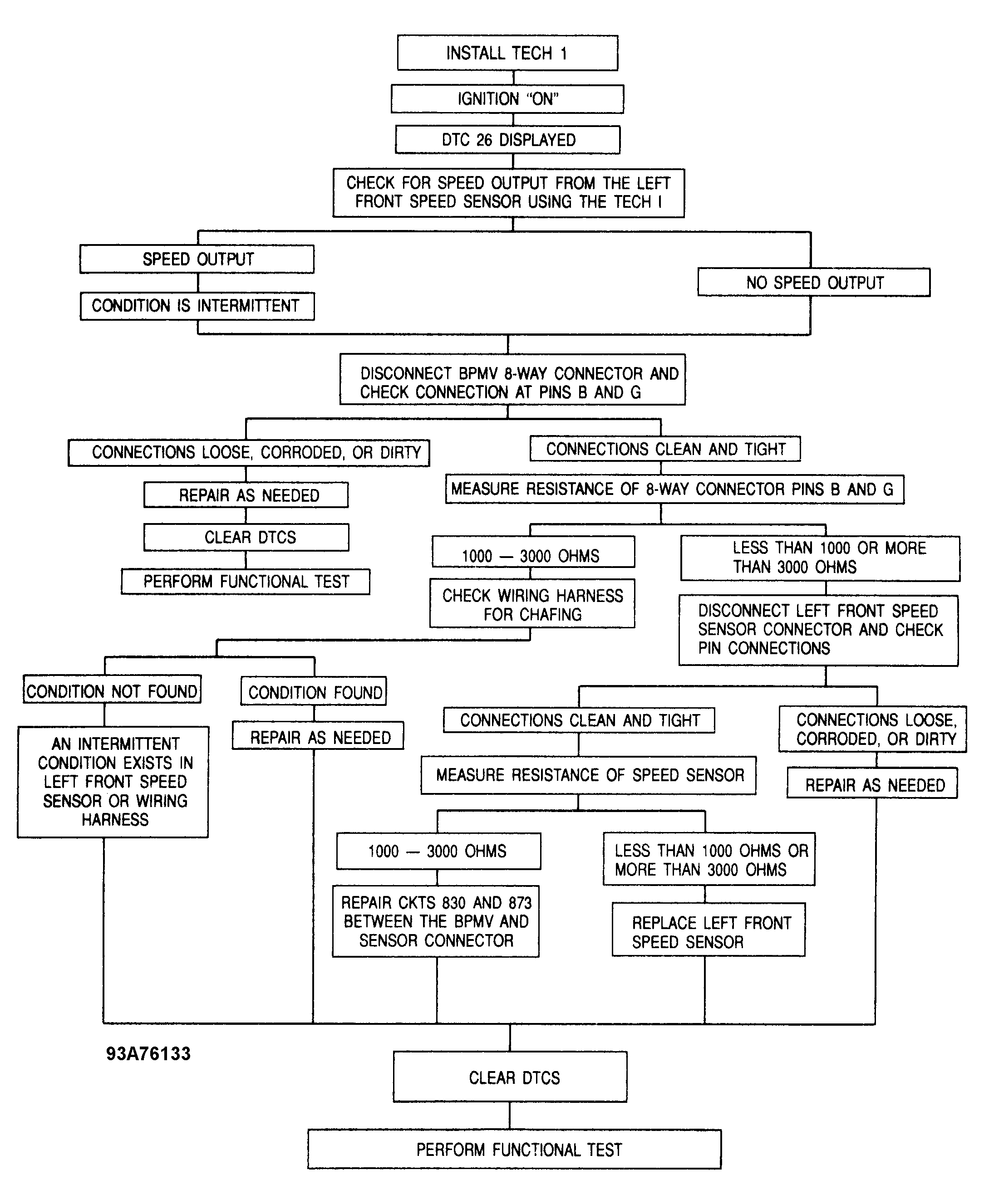

Fig 1: DTC 26 Missing Left Front Speed Signal Flow Chart

G93A76133

Courtesy of GENERAL MOTORS CORP.
