DTC 23 - Erratic Right Front Speed Sensor

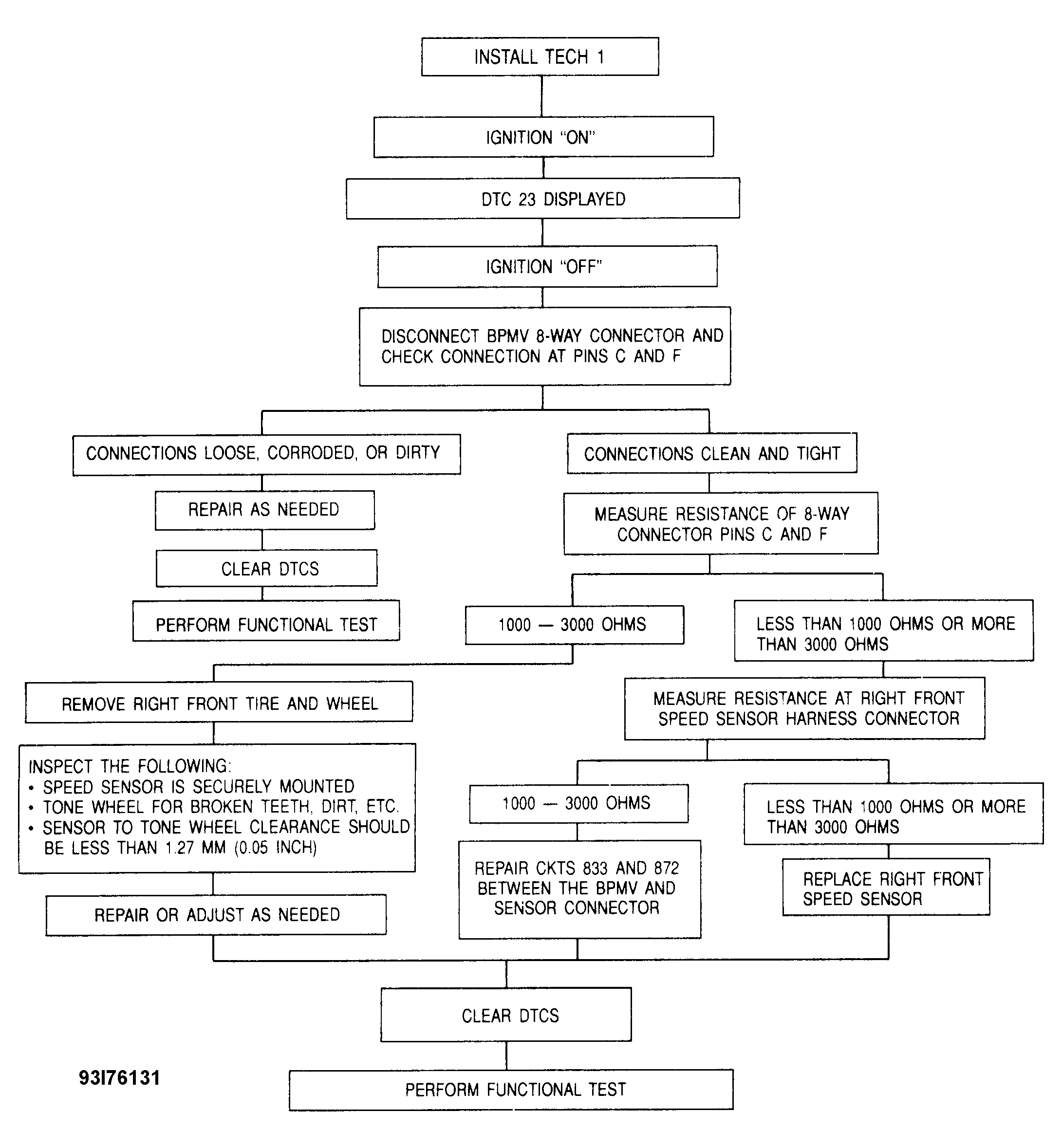

Fig 1: DTC 23 Erratic Right Front Speed Sensor Flow Chart

G93I76131

Courtesy of GENERAL MOTORS CORP.
