DTC 22 - Missing Right Front Speed Signal

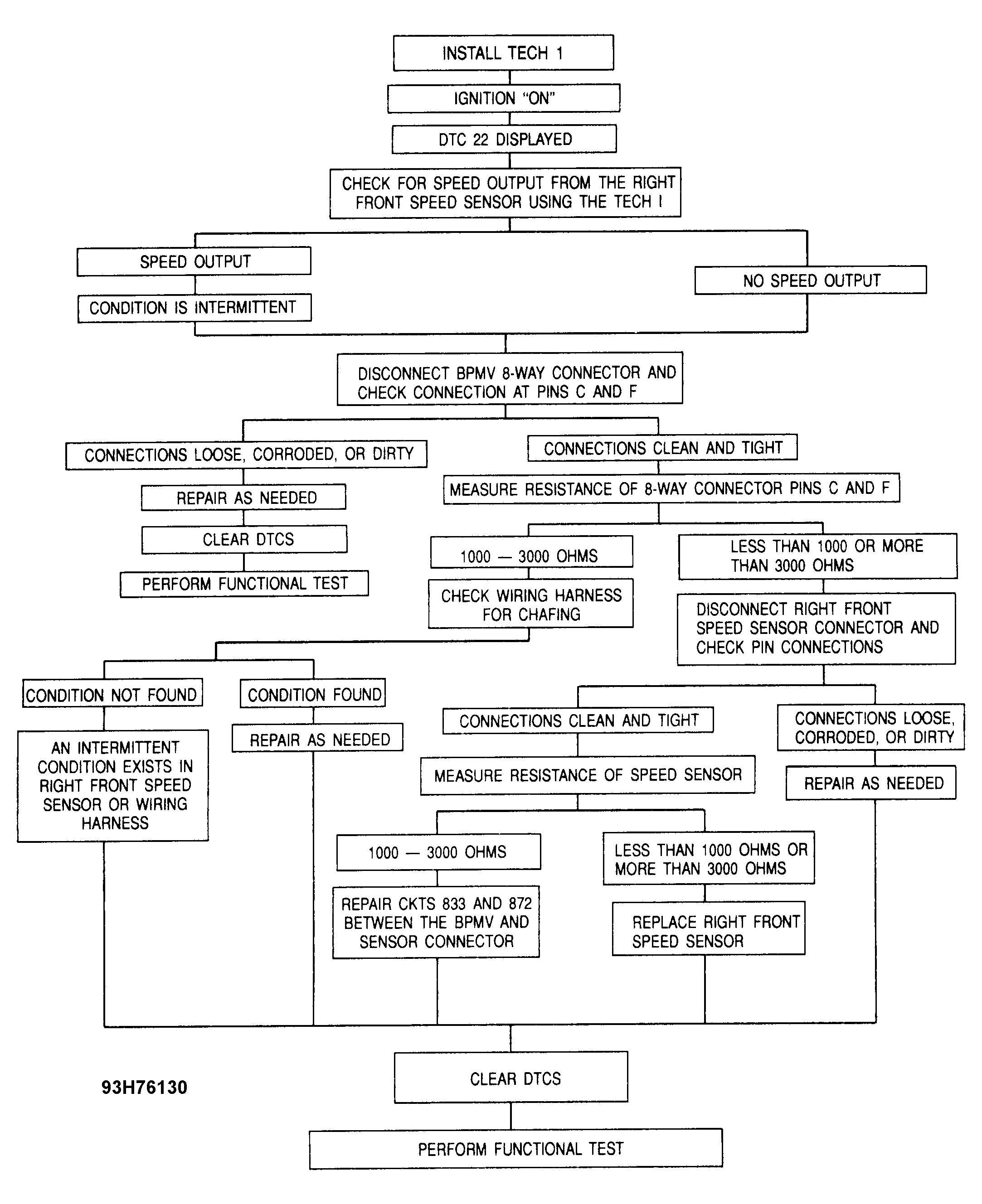

Fig 1: DTC 22 Missing Right Front Speed Signal Flow Chart

G93H76130

Courtesy of GENERAL MOTORS CORP.
