DTC 21 - Right Front Speed Sensor Or Circuit Open

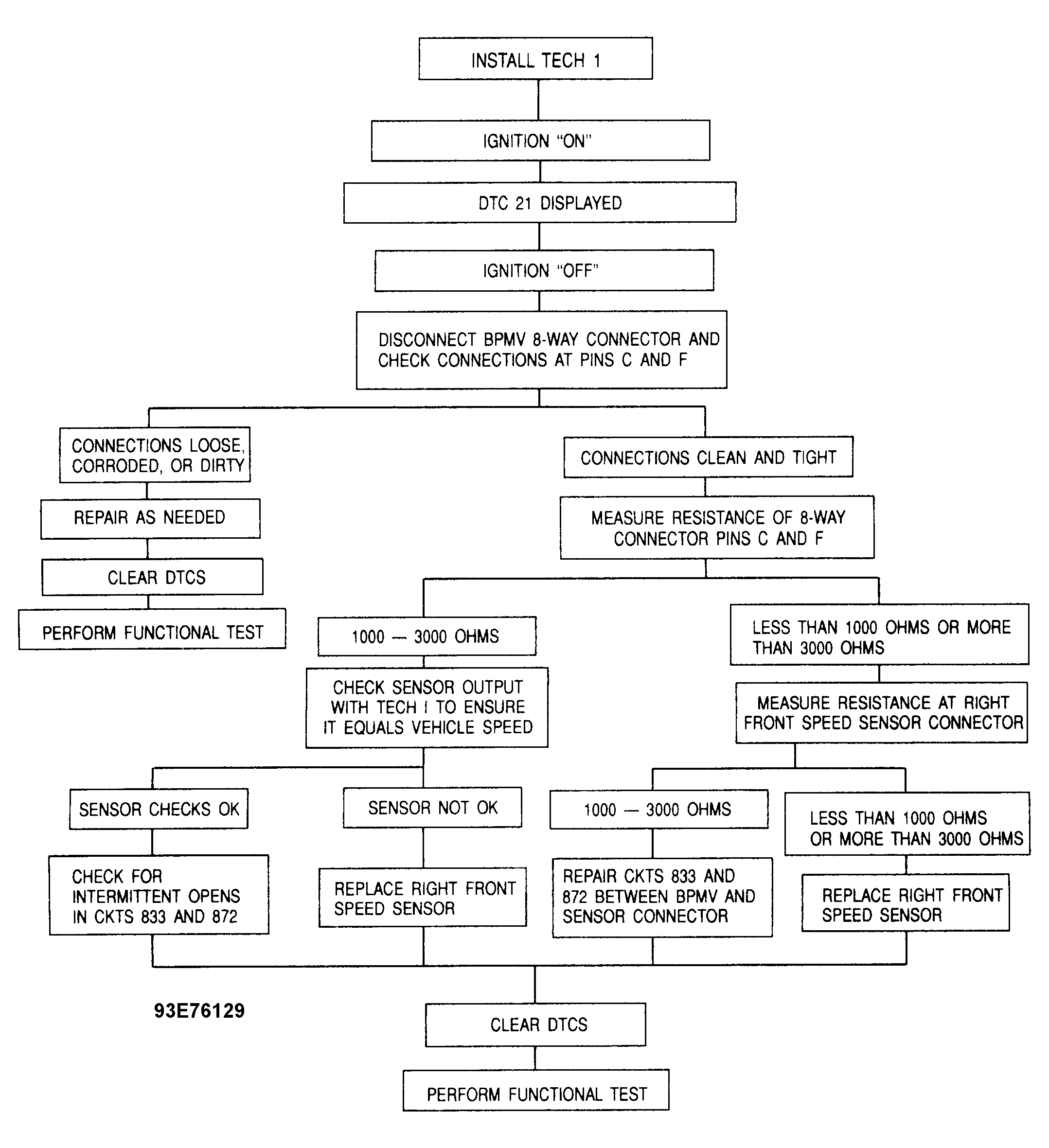

Fig 1: DTC 21 Right Front Speed Sensor Or Circuit Open Flow Chart

G93E76129

Courtesy of GENERAL MOTORS CORP.
