TC Series Pump

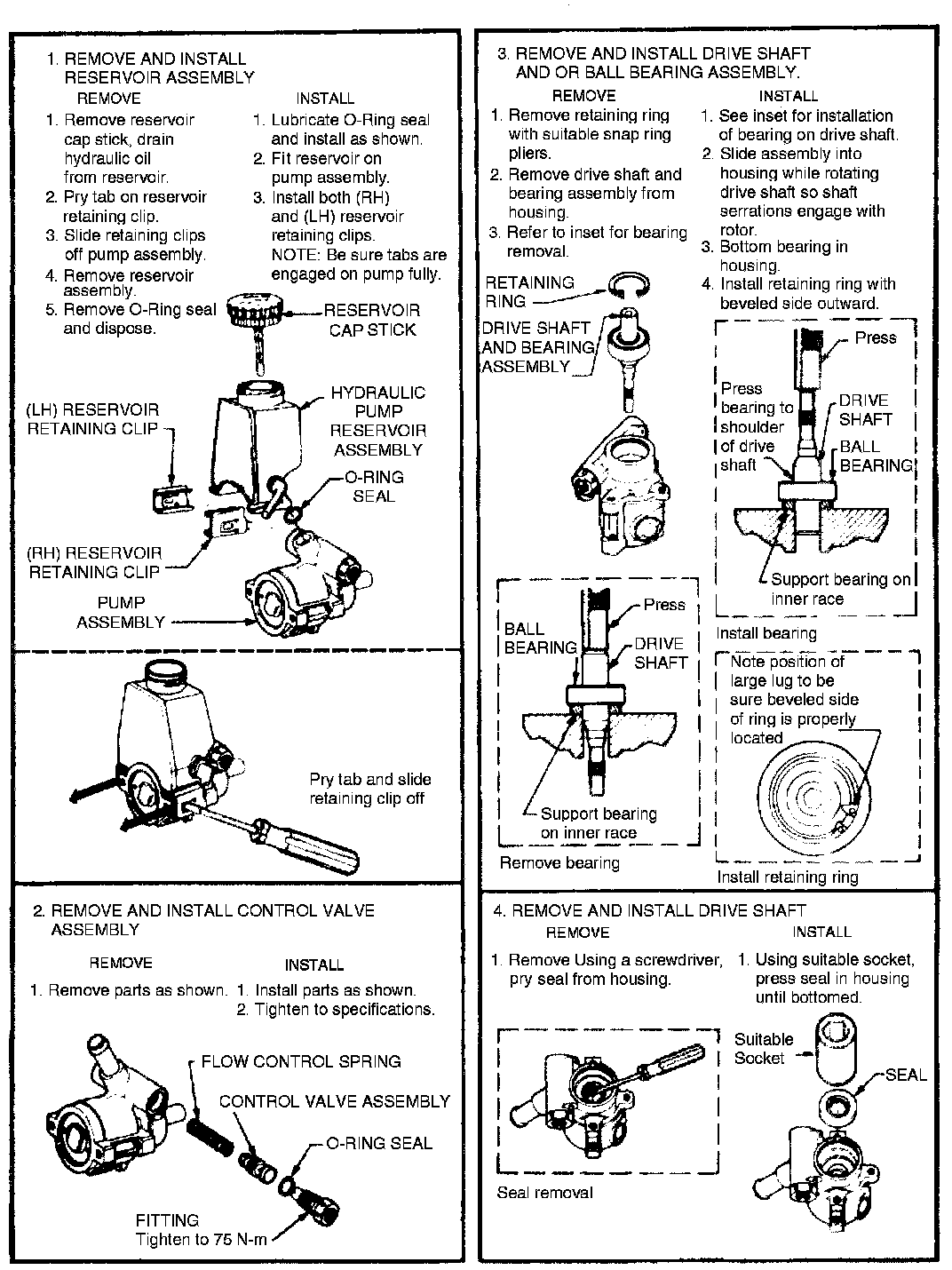

Fig. 11 Power Steering Pump Assembly Overhaul (Part 1 Of 4).:

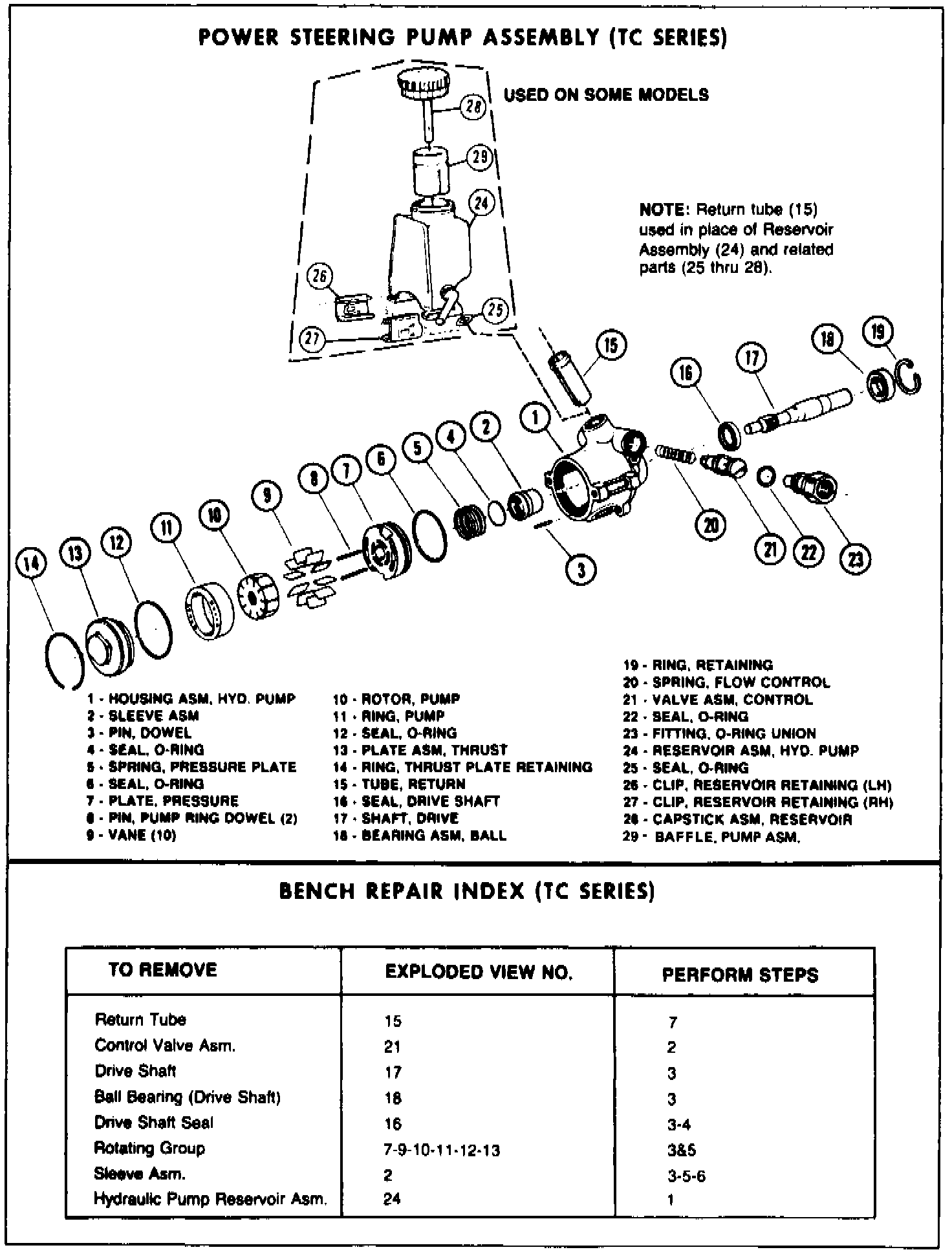

Fig. 11 Power Steering Pump Assembly Overhaul (Part 2 Of 4).:




Fig. 11 Power Steering Pump Assembly Overhaul (Part 3 Of 4).:




Fig. 11 Power Steering Pump Assembly Overhaul (Part 4 Of 4).:
