Instrument Panel (I/P) Fuse Block Label
Instrument Panel (I/P) Fuse Block Label
Fuse Data: I/P Fuse Block Label:

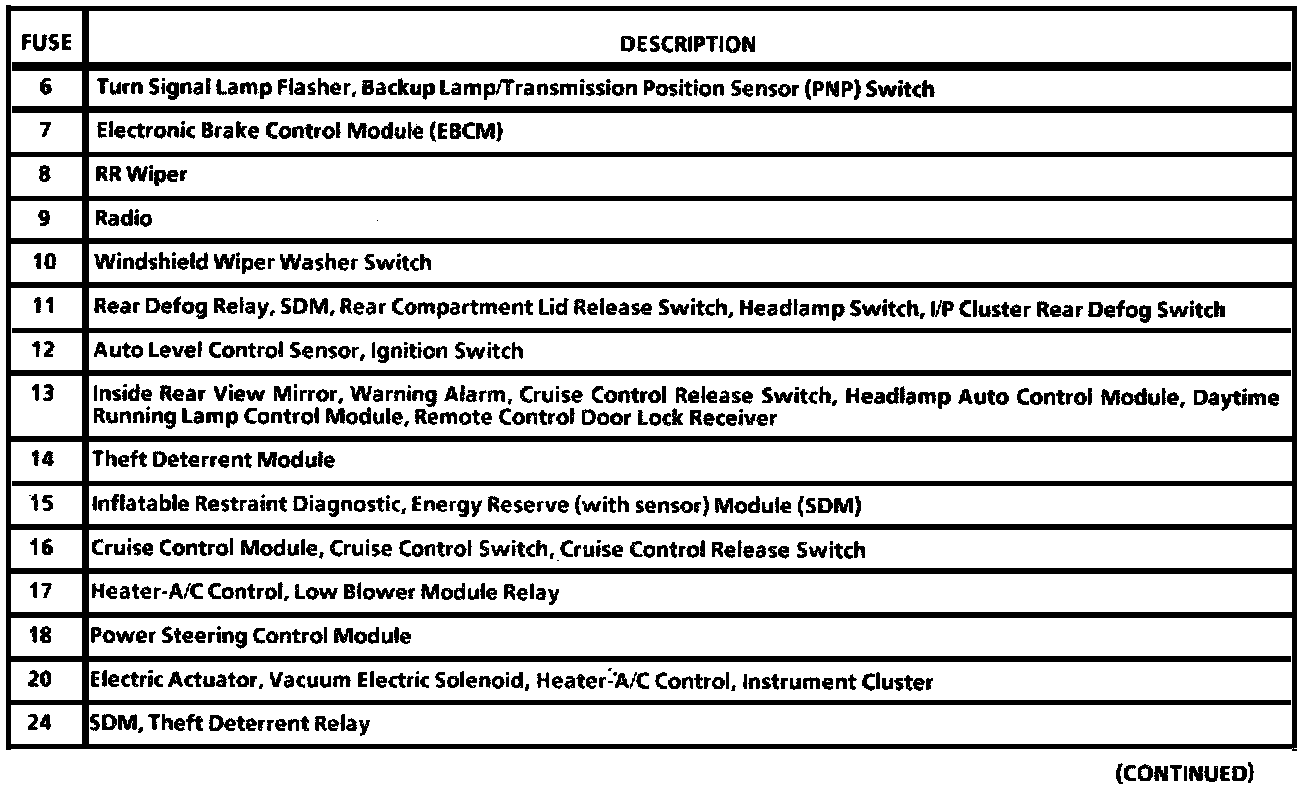

Fuse Data: I/P Fuse Block Label (Part 1 Of 3):

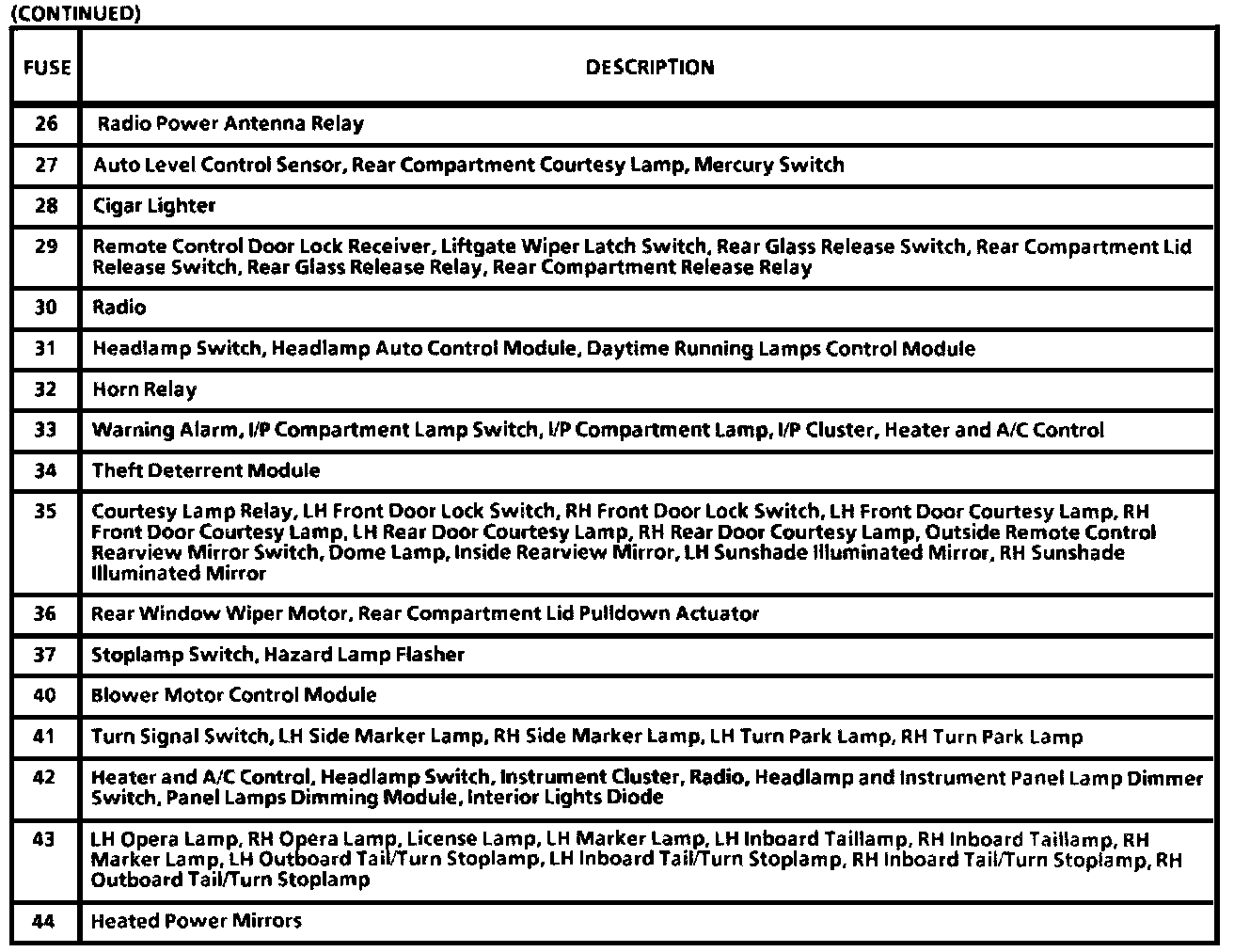

Fuse Data: I/P Fuse Block Label (Part 2 Of 3):
