Chart 5 RH and/or LH Stop/Turn Lamps Inoperative
Chart 5 RH and/or LH Stop/Turn Lamps Inoperative

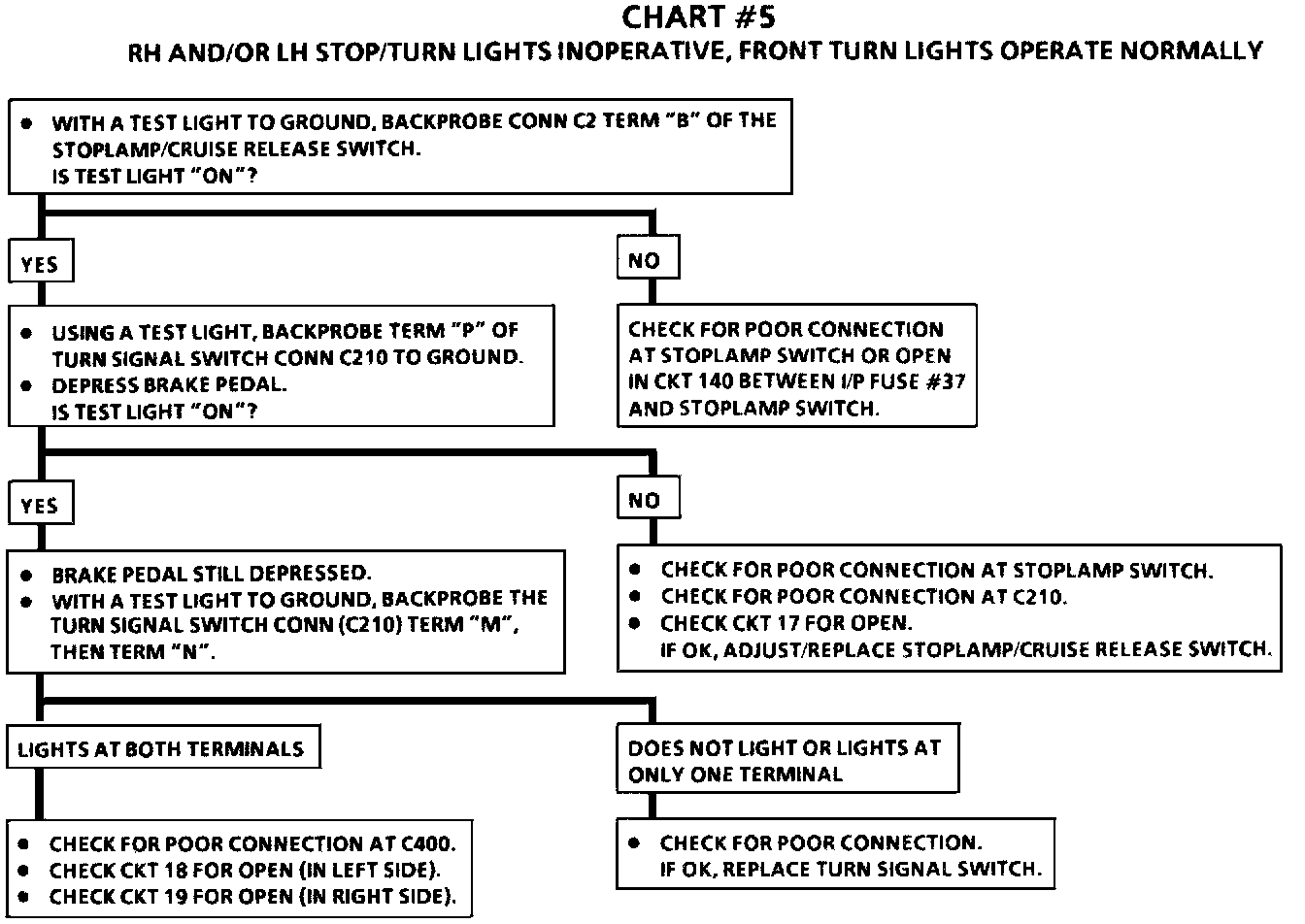

Chart #5 RH And/Or LH Stop/Turn Lights Inoperative, Front Turn Lights Operate Normally:
