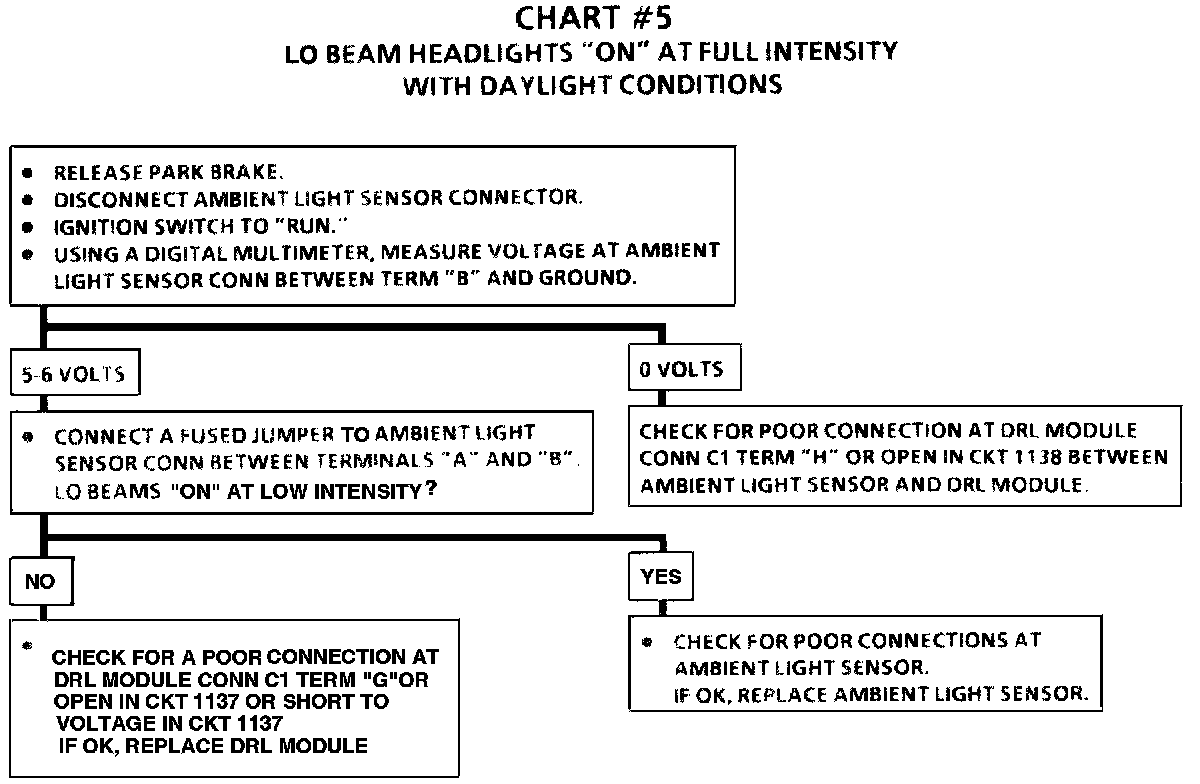

Chart #5 LOW Beam Headlights ON at Full Intensity
Chart #5 LOW Beam Headlights ON at Full Intensity
Chart #5 LO Beam Headlights ON At Full Intensity With Daylight Conditions:
