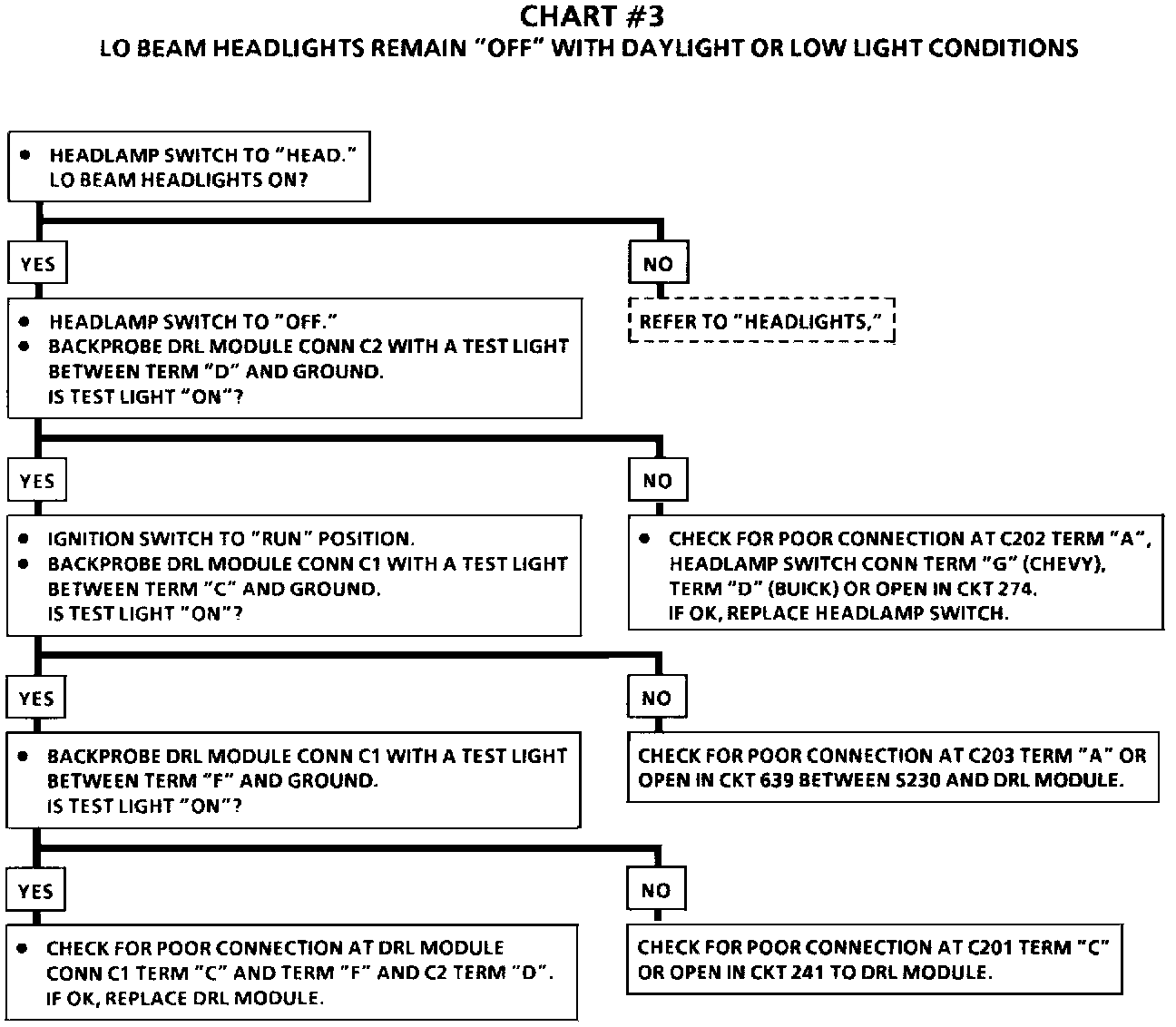

Chart #3 LOW Beam Headlights Inoperative

Chart #3 LO Beam Headlights Remain OFF With Daylight/LO Light Conditions:
