With Clutch Cycling Orifice Tube (CCOT)

Fig. 1 Test A (A/C Compressor Does Not Operate).:

Refer to Fig. 1 through 2, for symptom troubleshooting charts.

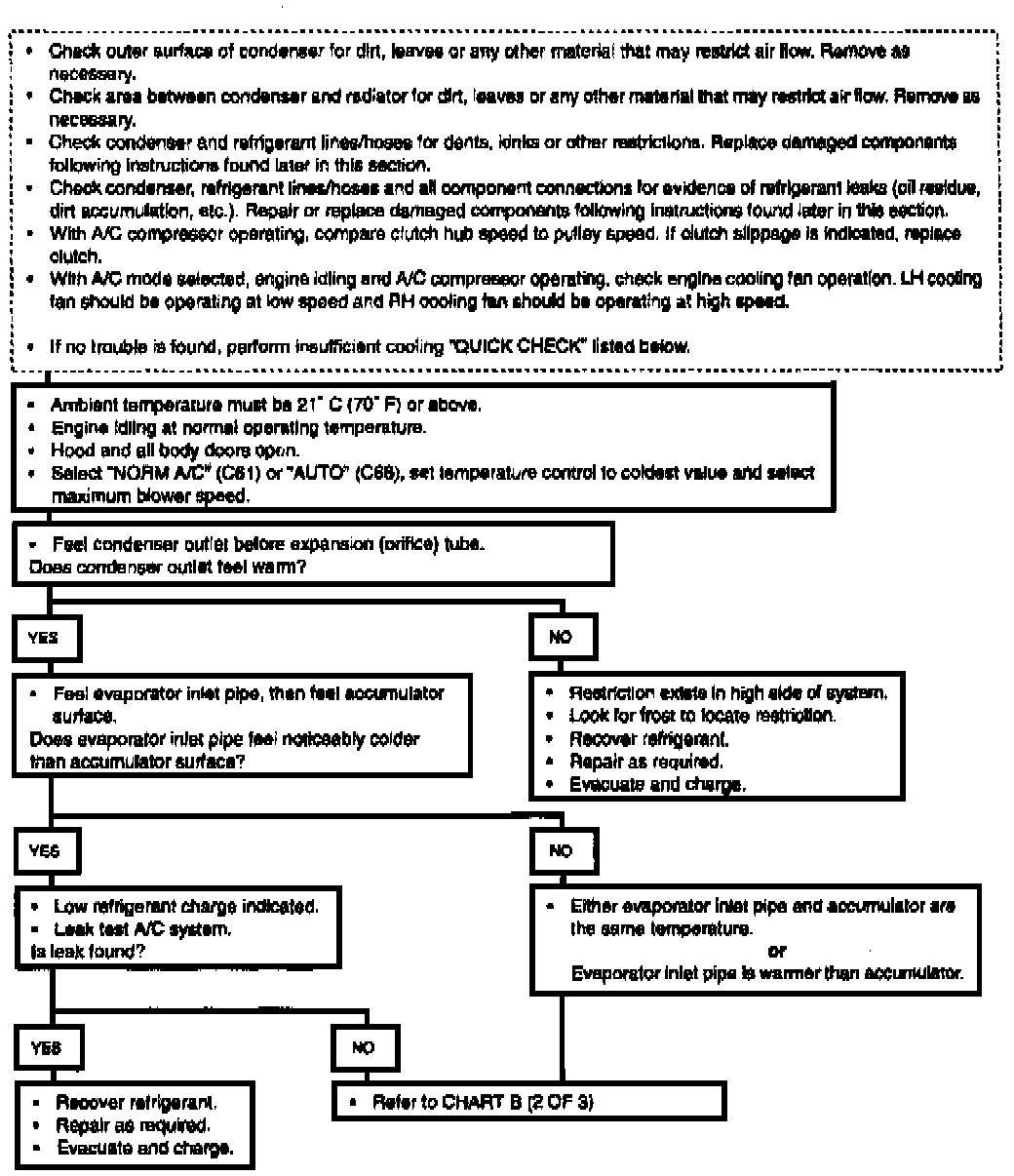

Fig. 2 Test B (Insufficient Cooling, Part 1 Of 3).:

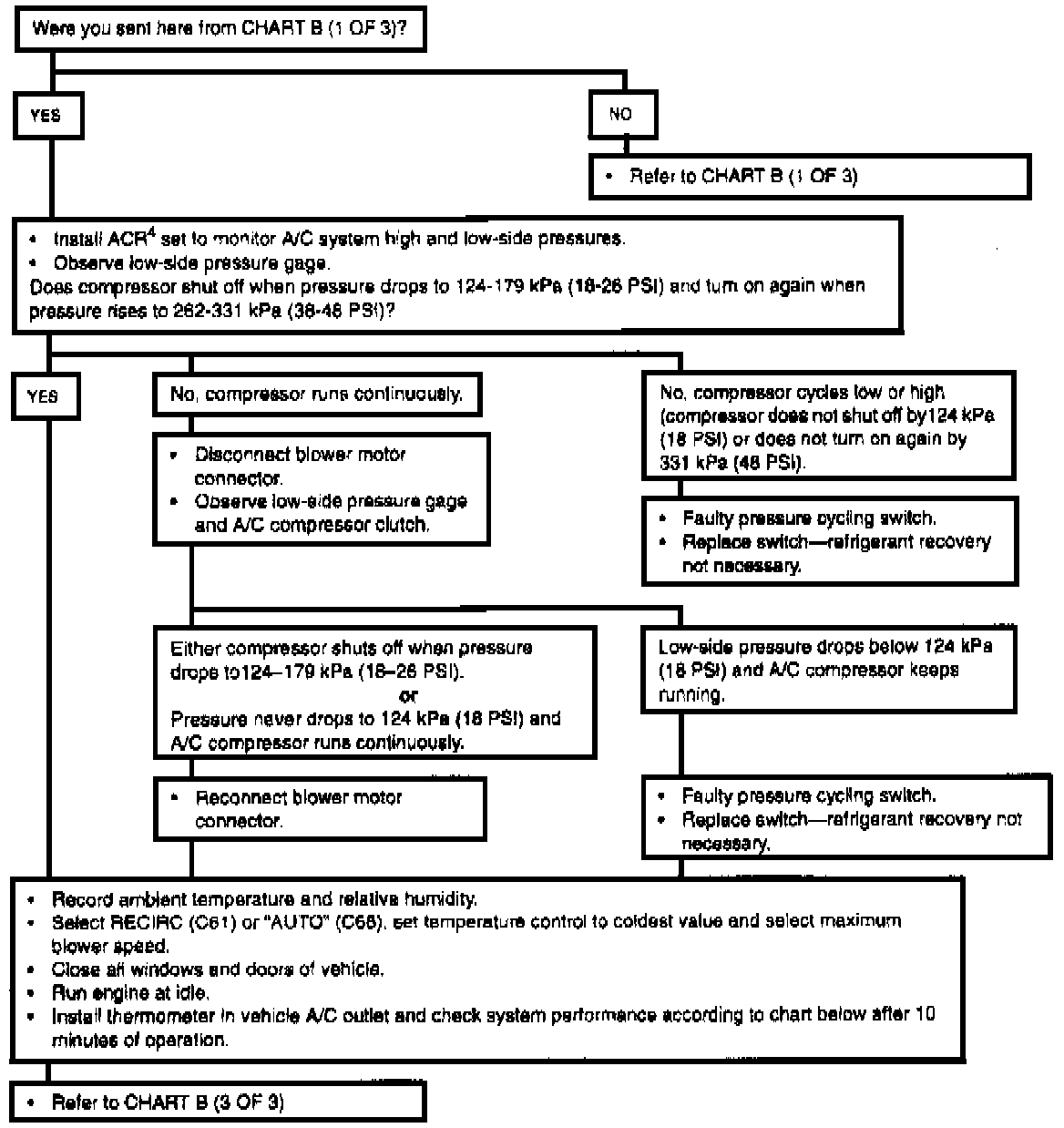

Fig. 2 Test B (Insufficient Cooling, Part 2 Of 3).:

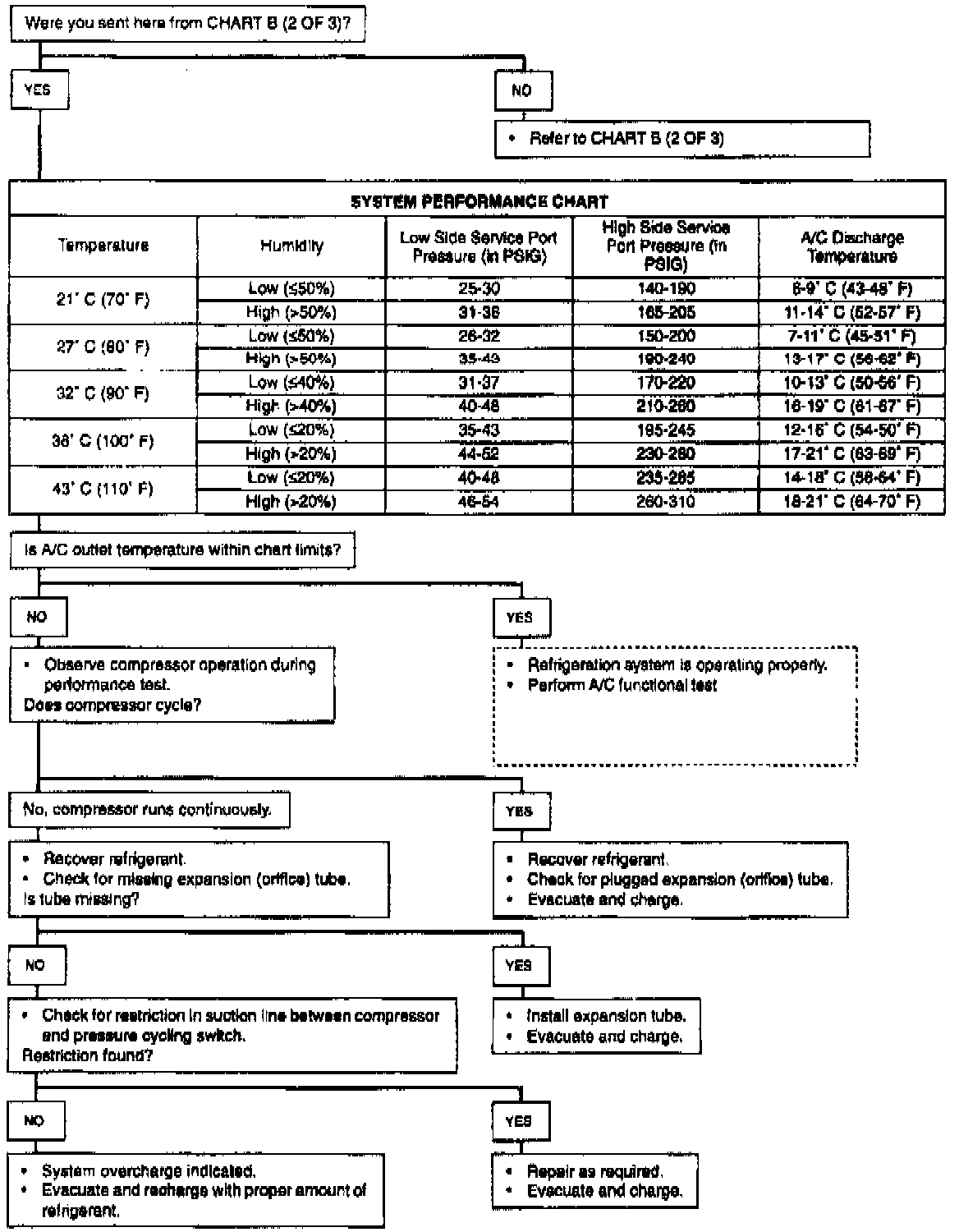

Fig. 2 Test B (Insufficient Cooling, Part 3 Of 3).:
