Home >> Chevrolet >> 1994 >> Caprice V8-265 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radiator Cooling Fan Motor >> Wiring Diagrams >> Heavy Duty Cooling

Heavy Duty Cooling

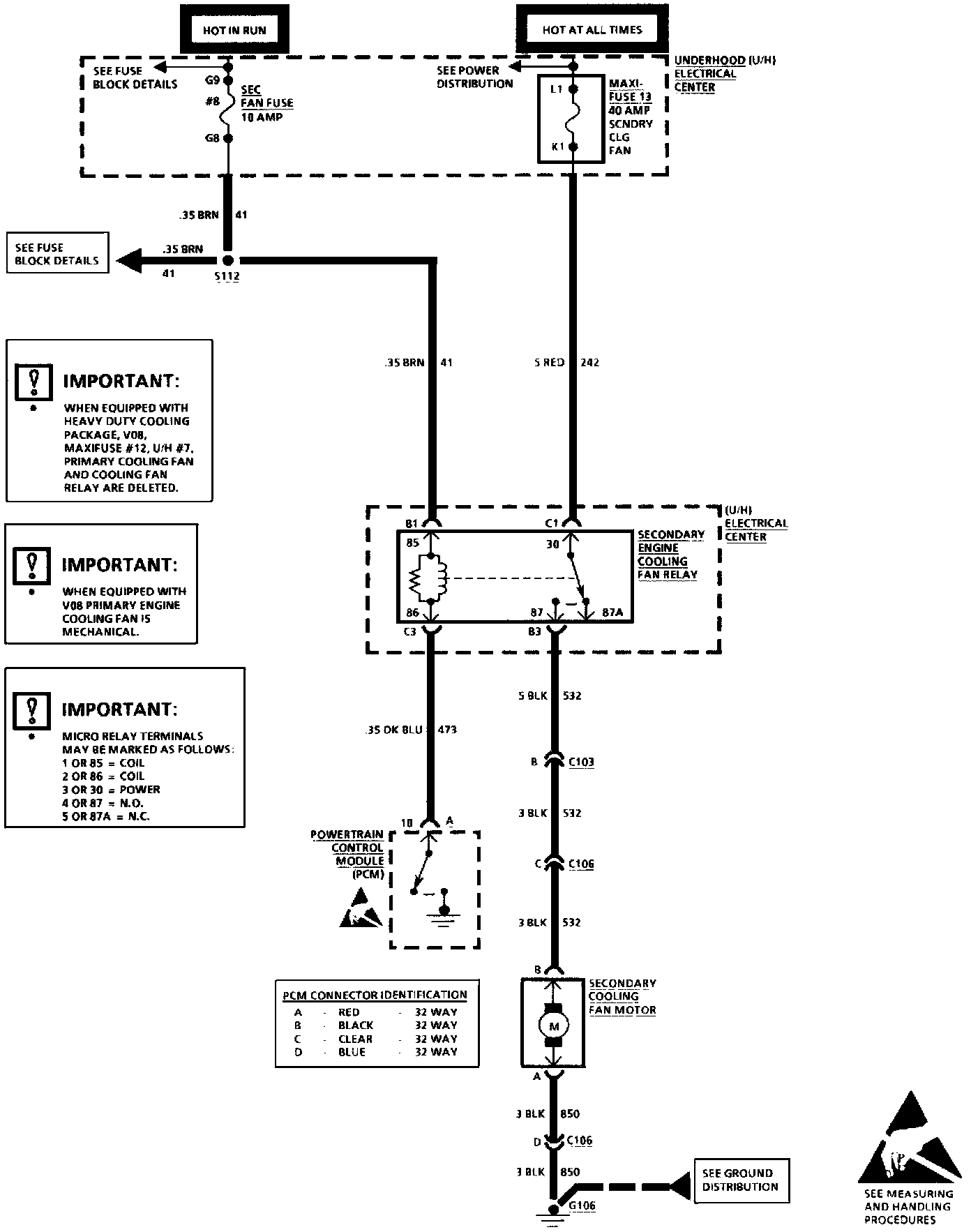

Coolant Fans: V08 Heavy Duty Cooling Only:
