Lighting and Horns
>>
System Diagram
>>
Exterior Lamps
>>
Spot Lamps, Rear Window Panel Lamps (Special Equipment Option)
Spot Lamps, Rear Window Panel Lamps (Special Equipment Option)

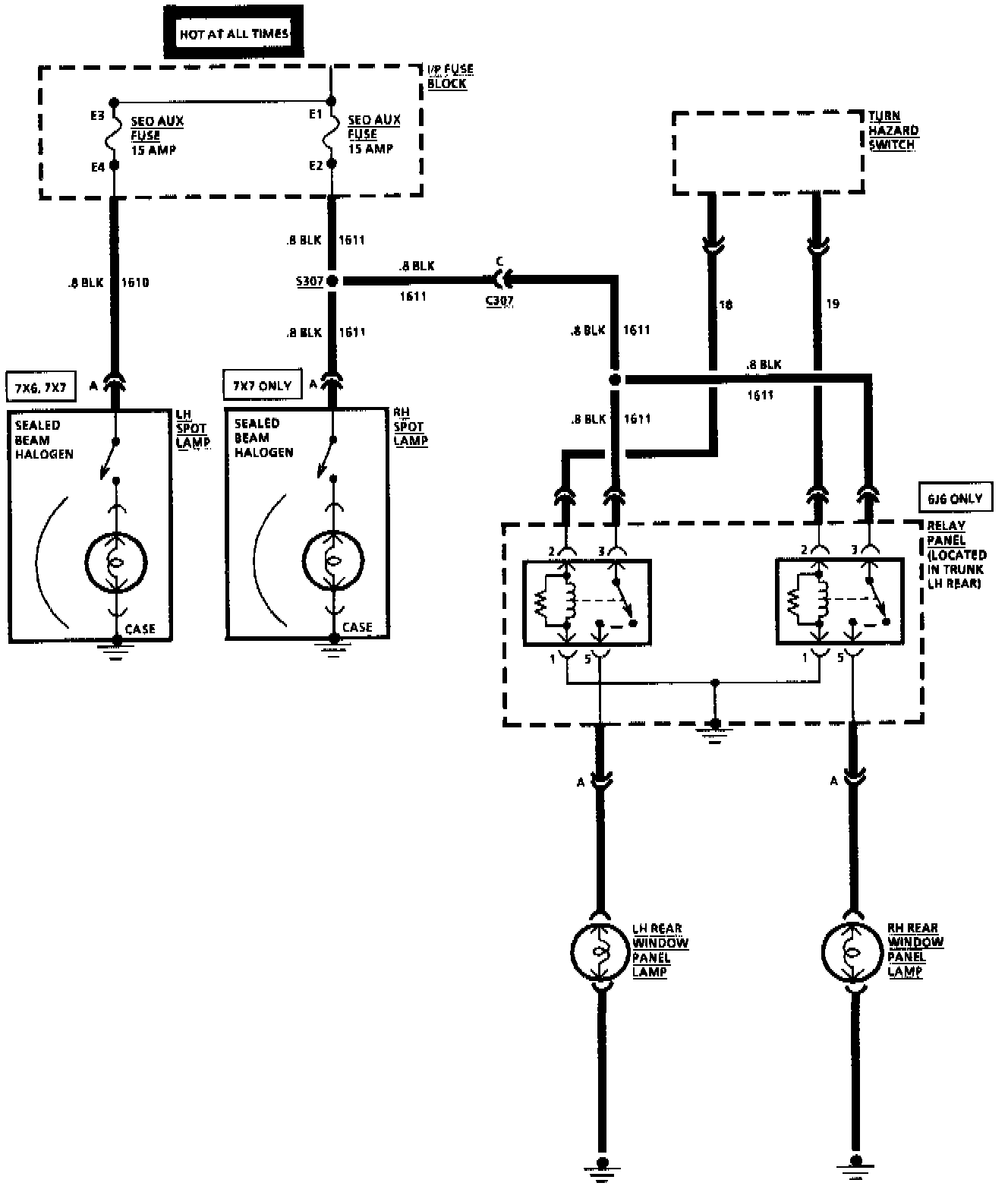

Exterior Lights (SEO): Spot Lamps, Rear Window Panel Lamps (6J6, 7X6, 7X7):
