Home >> Chevrolet >> 1994 >> Caprice V8-265 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lamps >> External Roof (Special Equipment Option)

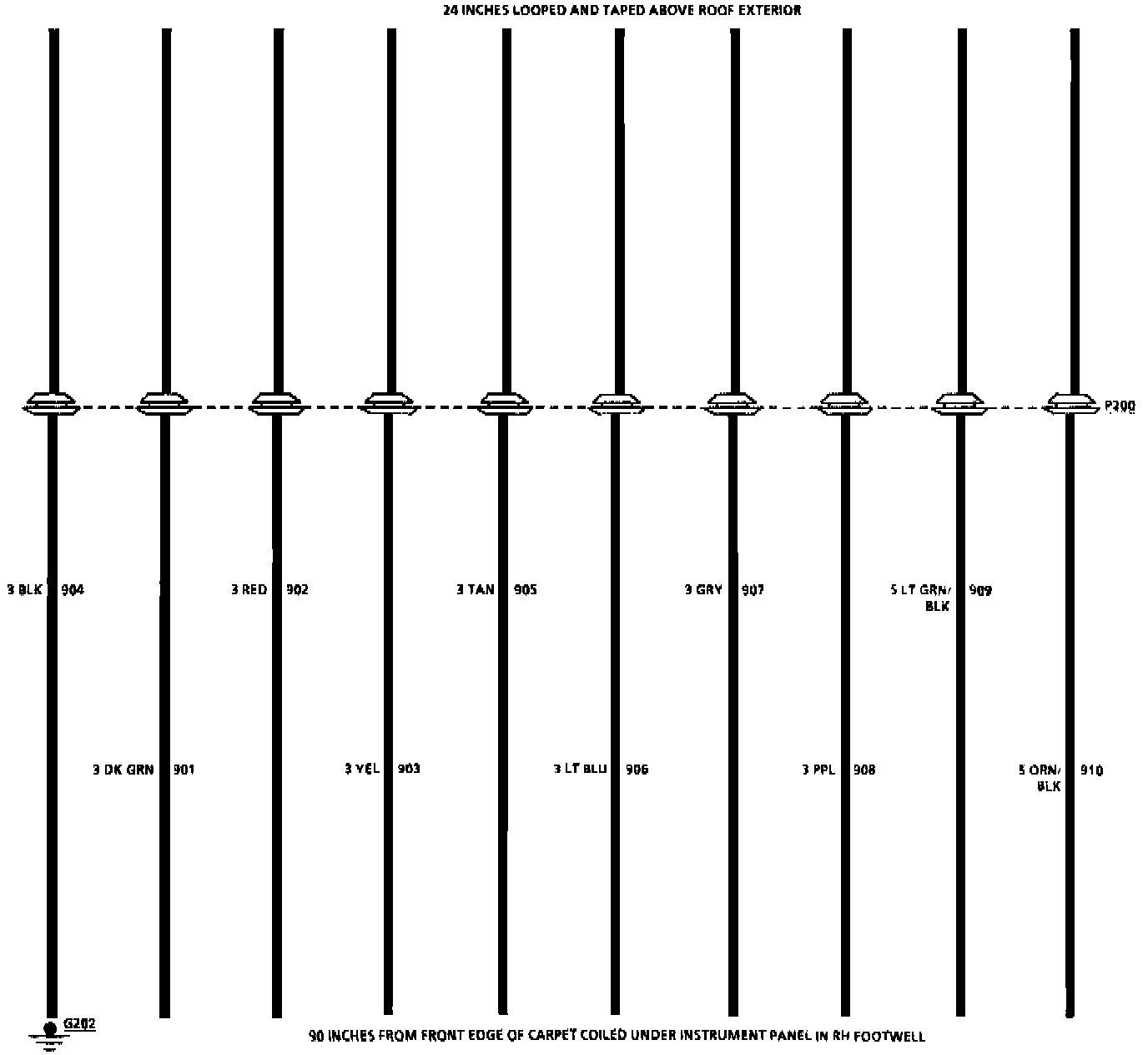

External Roof (Special Equipment Option)

Exterior Lights (SEO): External Roof (6F5):
