Home >> Chevrolet >> 1994 >> Caprice V8-265 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamps With Daytime Running Lights

Headlamps With Daytime Running Lights

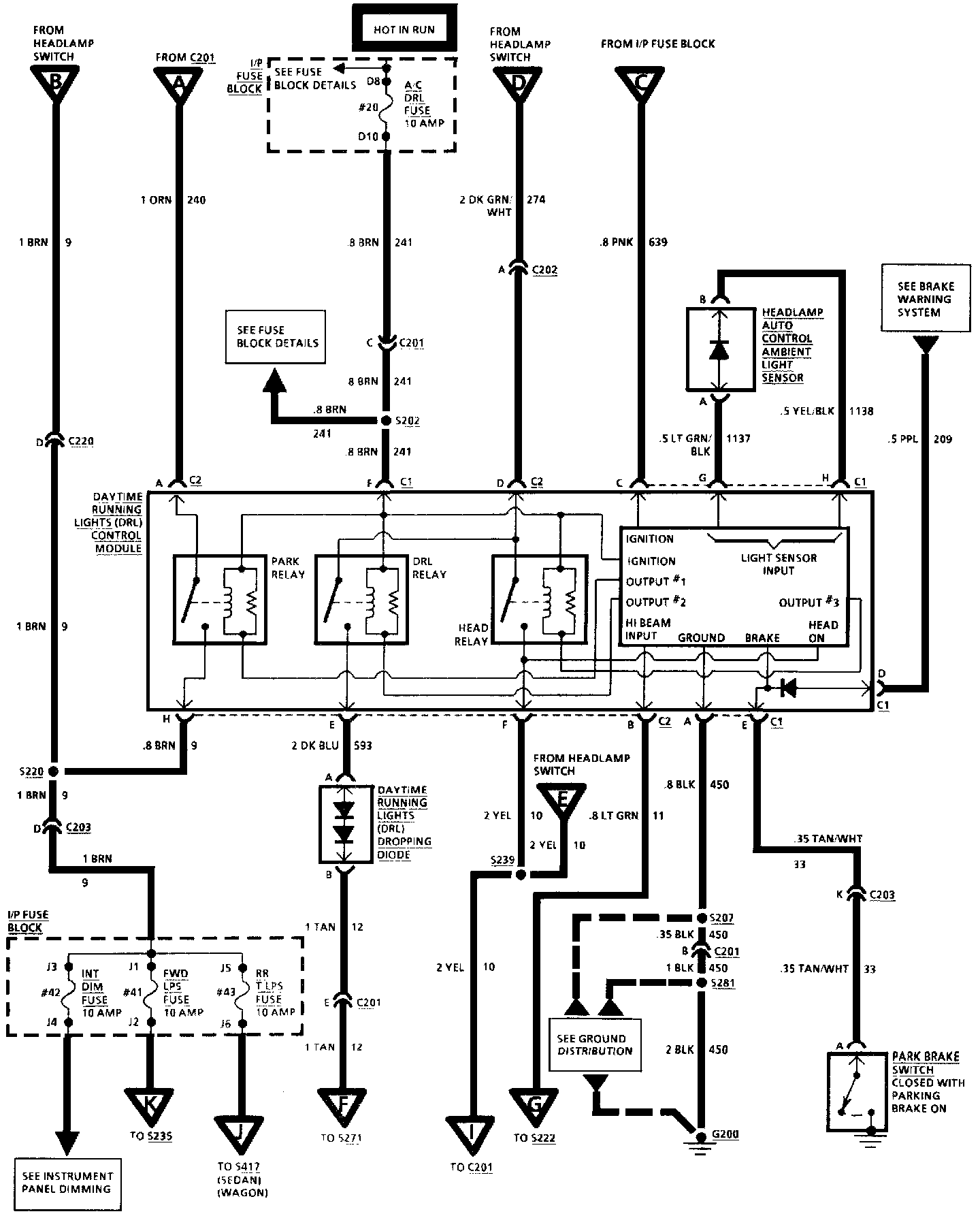

Headlights: Daytime Running Lights (Part 1 Of 4):




Headlights: Daytime Running Lights (Part 2 Of 4):

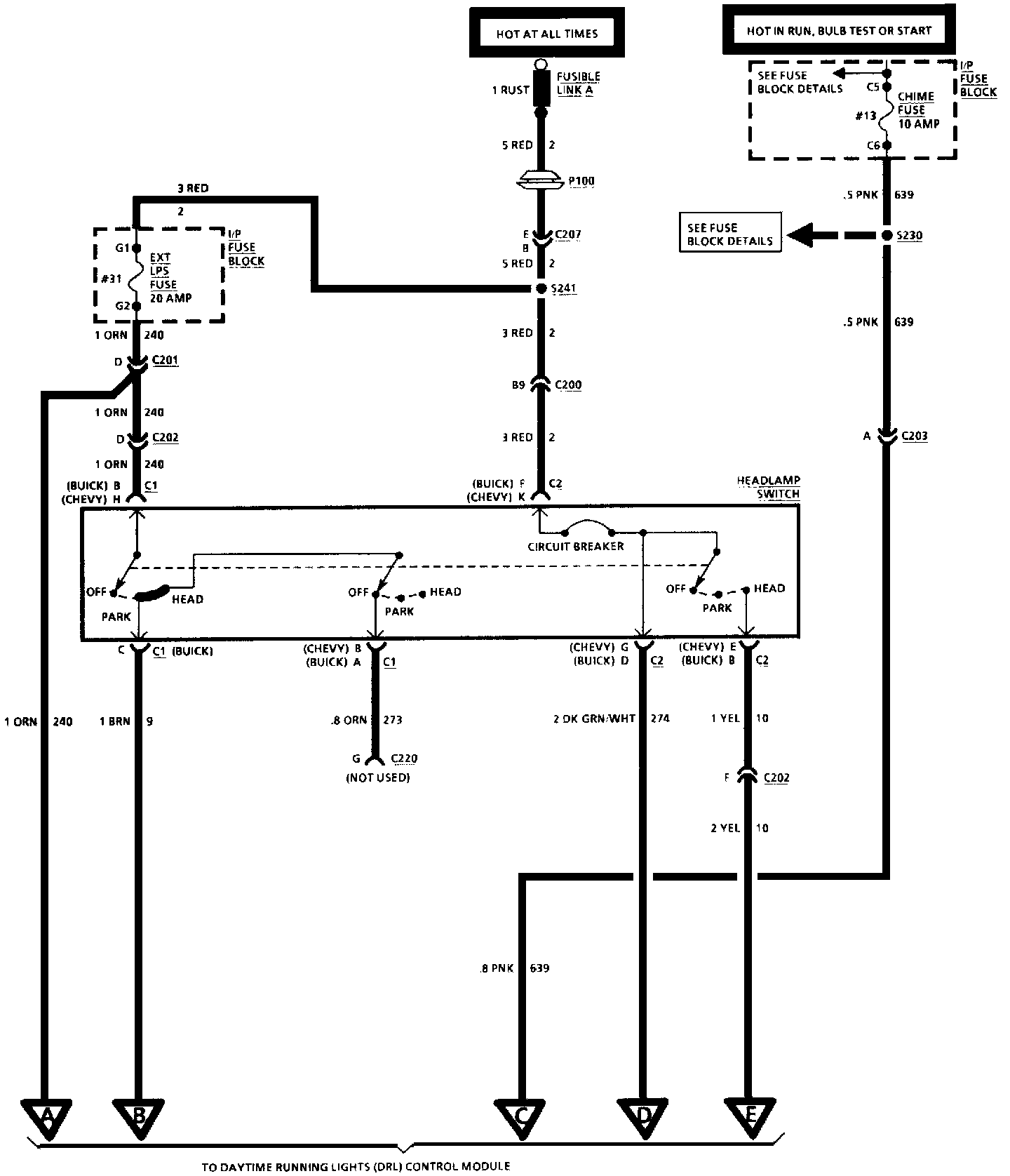

Headlights: Daytime Running Lights (Part 3 Of 4):

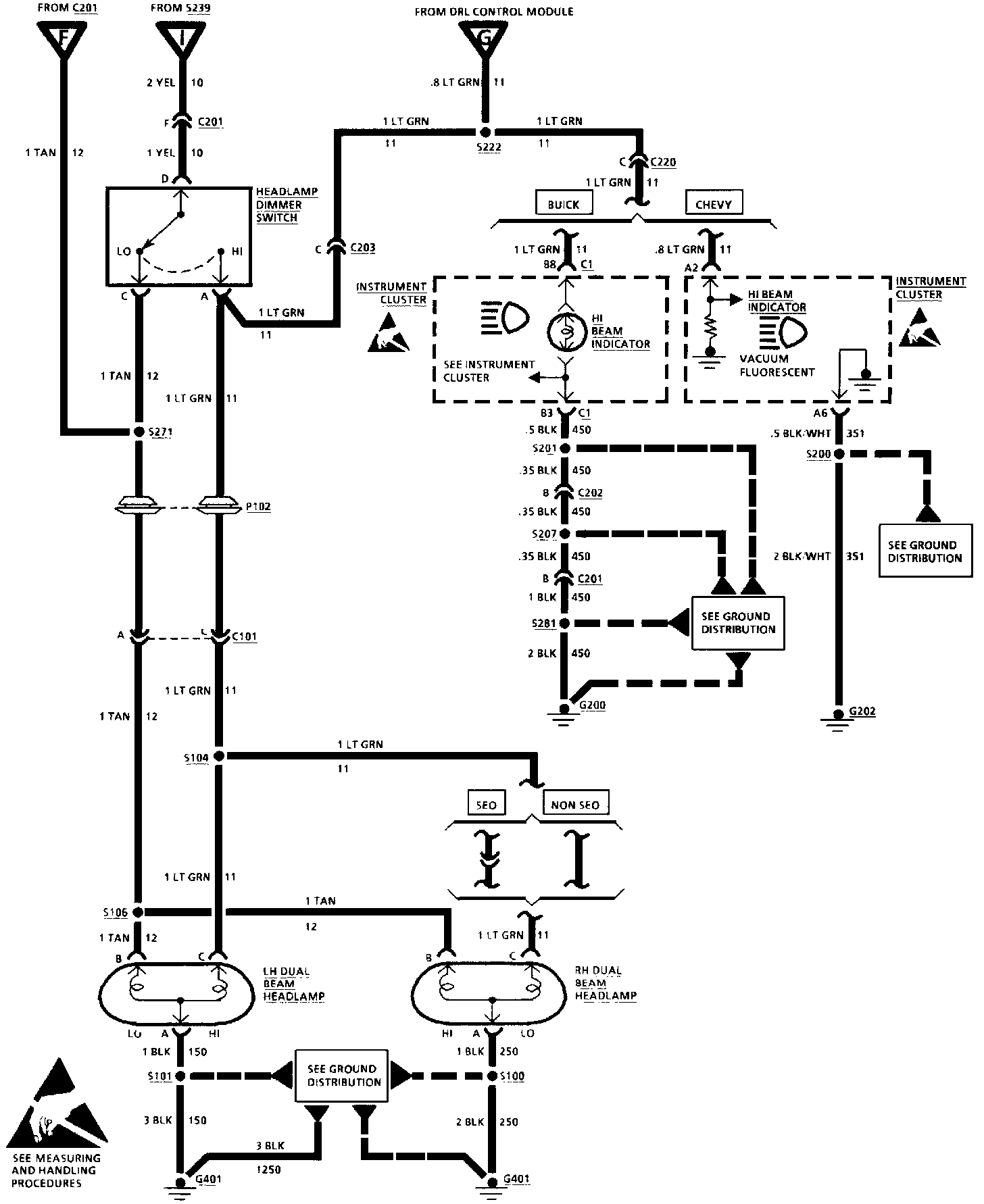

Headlights: Daytime Running Lights (Part 4 Of 4):
