Oil Change Reminder Lamp

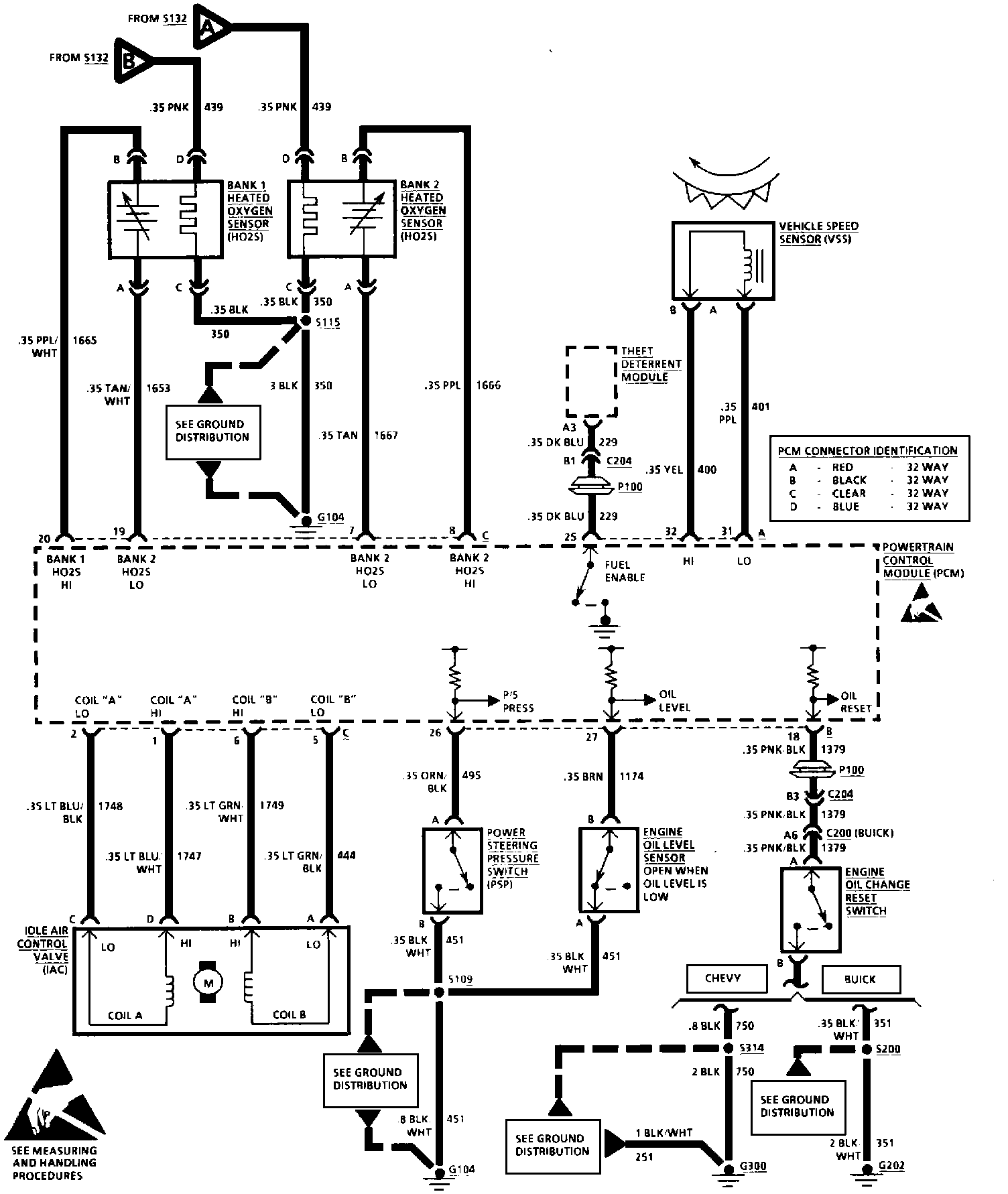

Emission Controls, Power Steering, Oil Level, Oil Reset & Passkey:

This diagram is one part of the Complete set of Powertrain Wiring Diagrams located under Powertrain Management. Refer to this area if you need the accompanying diagram. Electrical Diagrams
