Home >> Chevrolet >> 1994 >> Caprice V8-265 4.3L >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C300-C399 >> C315

C315

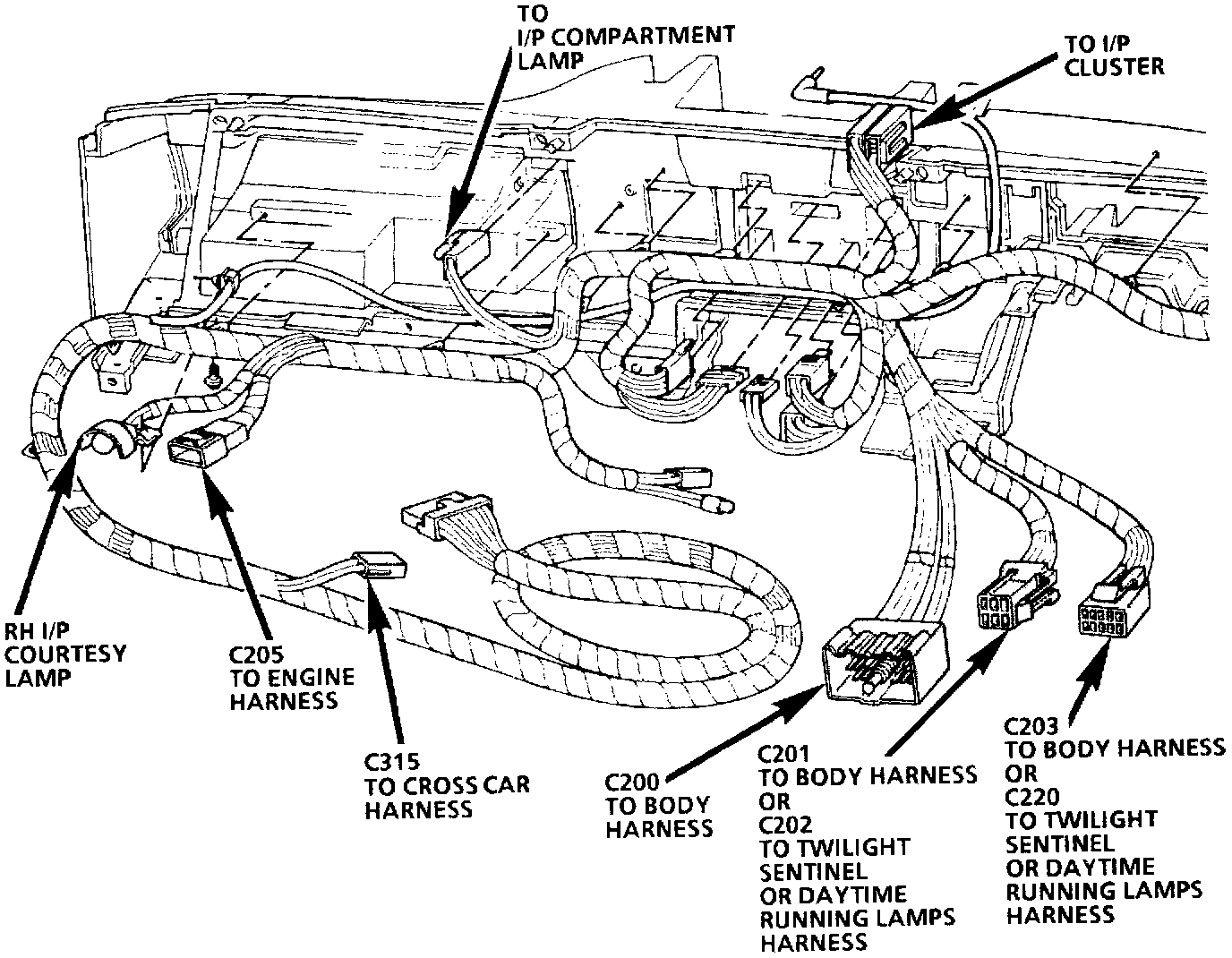

Back View Of RH Instrument Panel:
