Chart #6 - Lower Support INOP., Upper & Middle Supports OK
Chart #6 - Lower Support INOP., Upper & Middle Supports OK

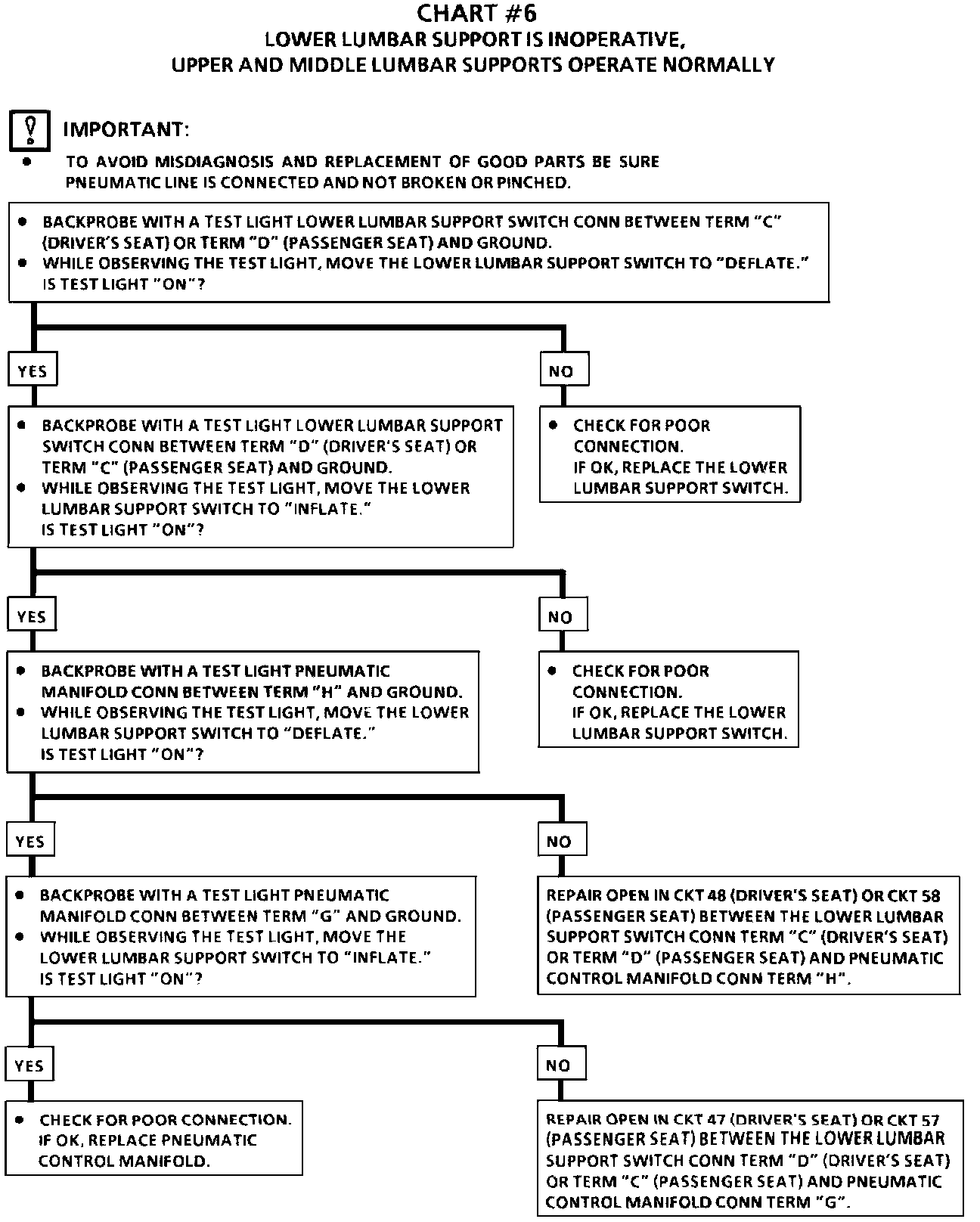

Chart #6 Lower Lumbar Support Is Inoperative, Upper And Middle Lumbar Supports Operate Normally:
