Chart #5 - Middle Support INOP., Upper & Lower Supports OK
Chart #5 - Middle Support INOP., Upper & Lower Supports OK

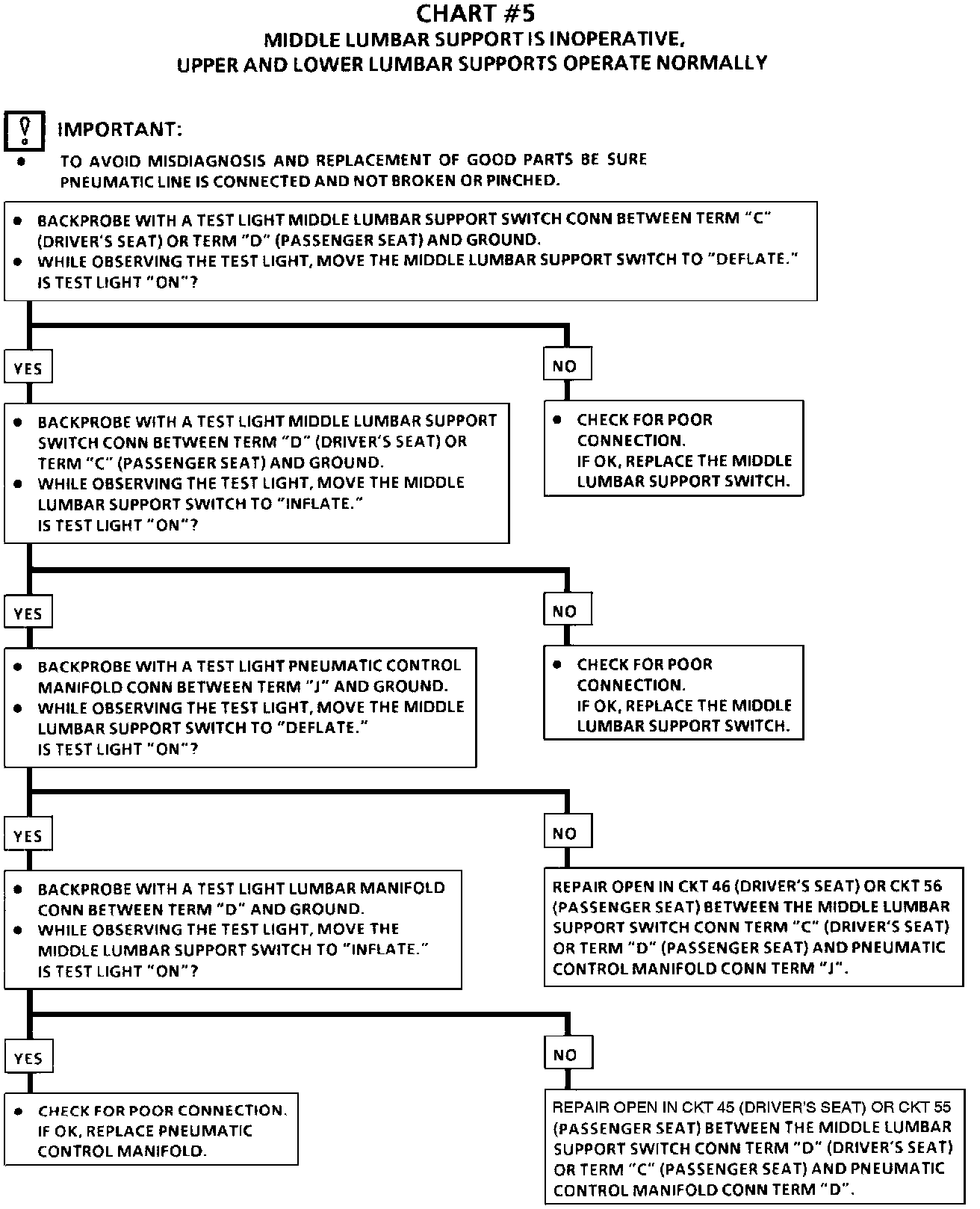

Chart #5 Middle Lumbar Support Is Inoperative, Upper And Lower Lumbar Supports Operate Normally:
